SKU: AF49-1552

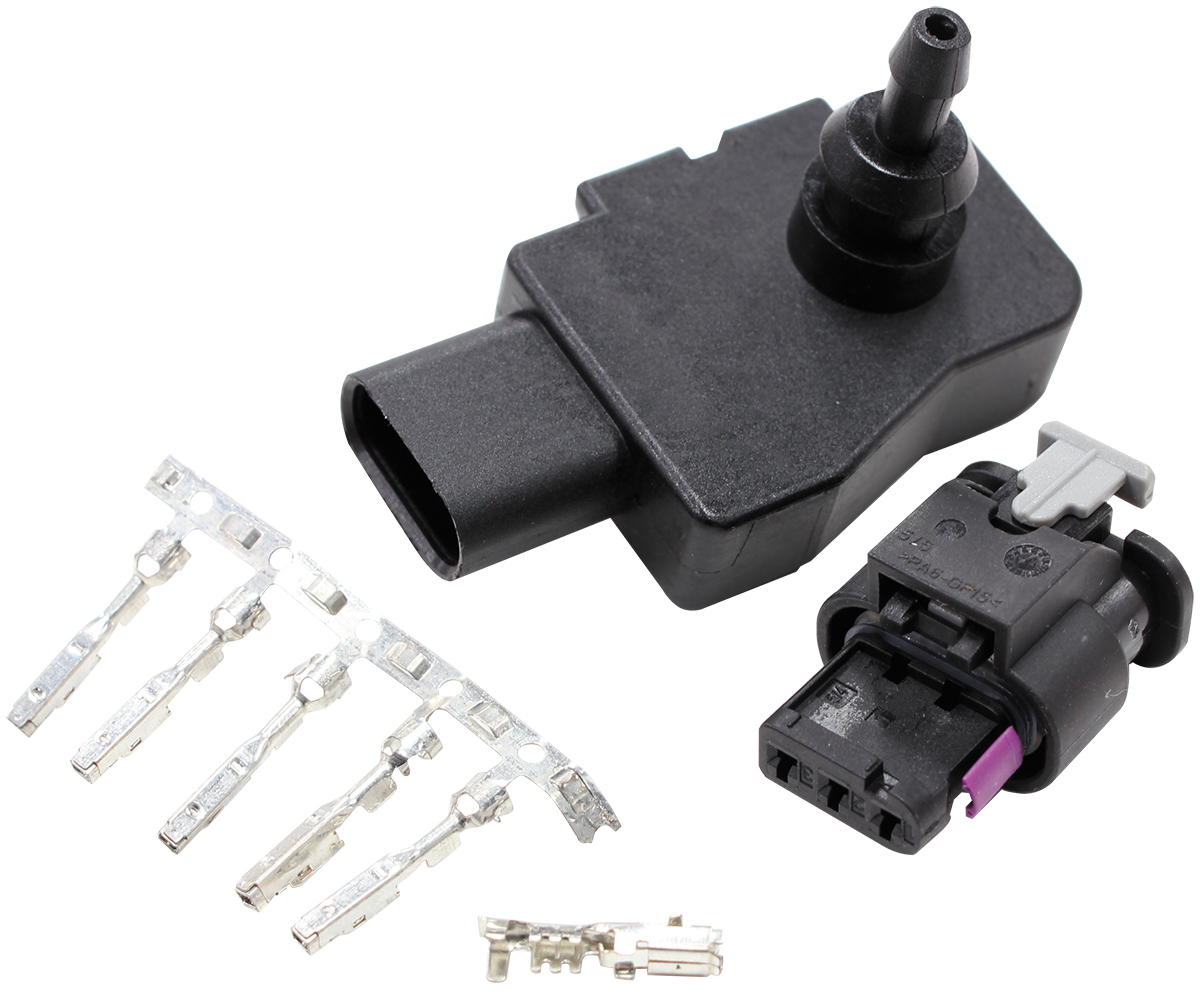

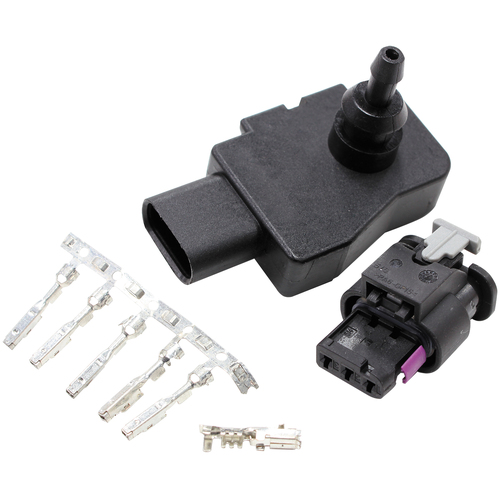

Aeroflow AF49-1552 3 Bar Manifold Absolute Pressure MAP Sensor 5mm Vacuum Barb

$159.50
RRP $224.00
SAVE $64.50 (29%)

or 4 payments of $39.88 with Info

In Stock


Calculate Shipping



FREE STD SHIPPING - $0.00
Delivery Australia Wide
Free pick-up from store - $0.00
This item is pick up only

Description

Aeroflow

3 Bar Manifold Absolute Pressure (MAP) Sensor

with 5mm Vacuum Barb Port

AF49-1552

SOLD AS EACH



The Aeroflow Performance Manifold Absolute Pressure (MAP) sensor is a 3 bar MAP sensor. This sensor is used to determine engine load on forced induction engines. This sensor is intended to be used on engines producing positive manifold pressure up to 2 bar, or roughly 30psi of boost. This sensor is not recommended for use with engines that will not see boost above 1 bar, as it limits sensor resolution. This sensor is fully calibrated for high accuracy and designed for high stability across the temperature range. It includes the plug and pins to easily wire into any application.

  • This sensor has a 5mm vacuum barb
  • Overall length is 52mm
  • Overall width is 27.50mm
  • Overall body height is 11.60mm
  • Operating pressure range is 20 kpa to 400kpa
  • Supply voltage range is 4.65 to 5.35 volts (working voltage is 5 volts)
  • Response working time is 1 millisecond

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.



INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.



WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.



PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.



RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.



Thank you For Looking!

HAPPY SHOPPING !



Specifications

SKU AF49-1552
Barcode # 9337206120470
Brand Aeroflow
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.001875000m3
