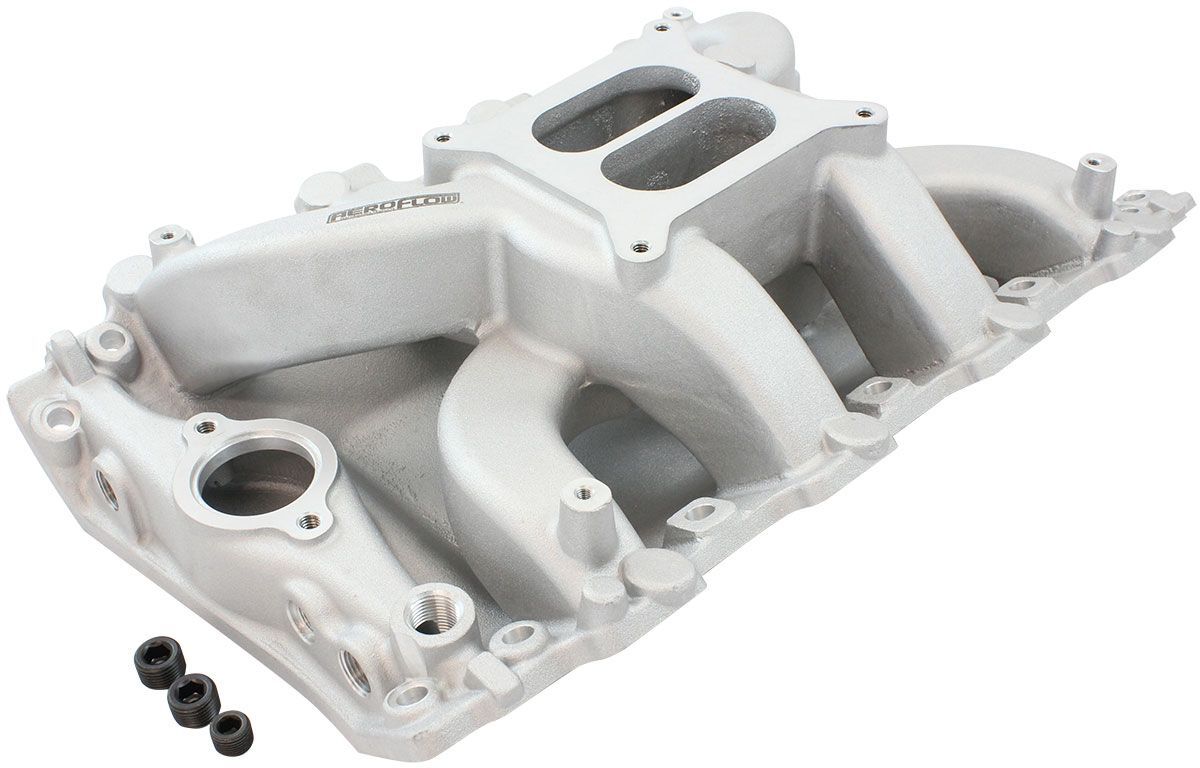

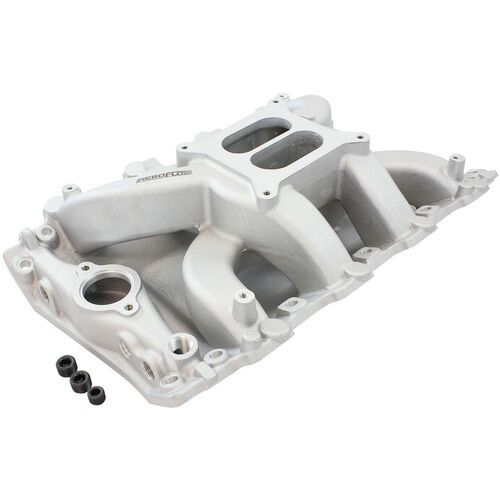

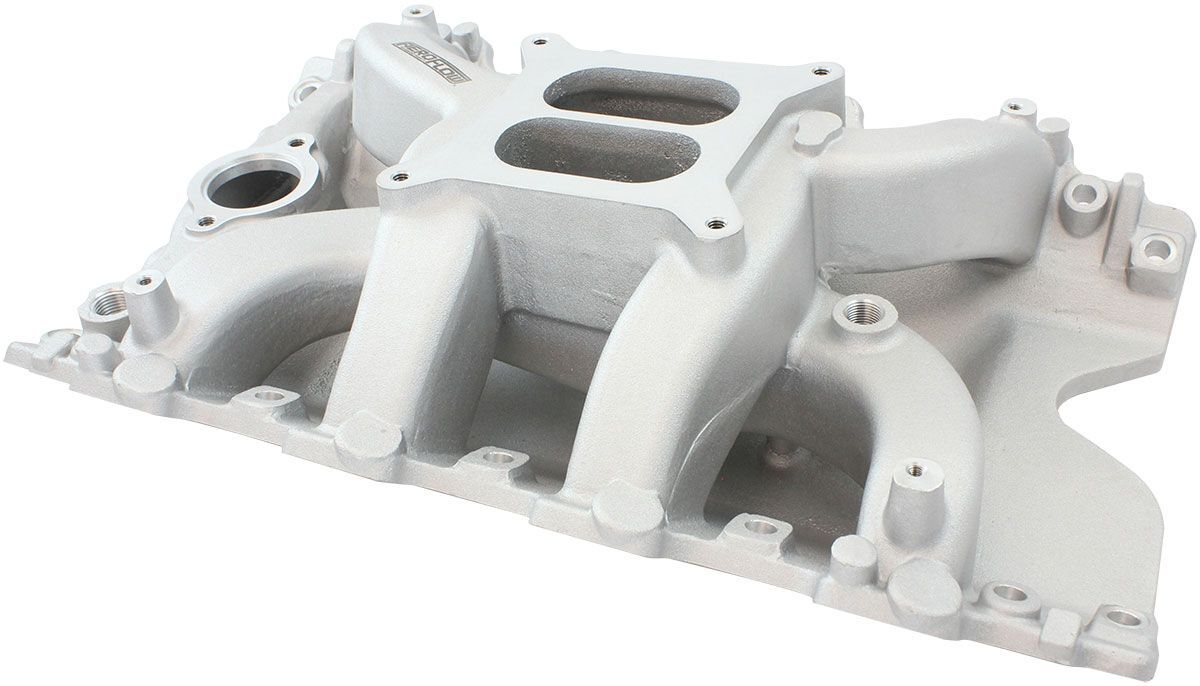

Aeroflow AF6010-4000 Air Gap Intake Manifold Non EGR For Holden 304 V8 VN HEAD
Description
Aeroflow
Air Gap Dual Plane Intake Manifold Non EGR For Holden 304 V8 VN HEAD
AF6010-4000
SOLD AS EACH
Holden 304 Air Gap Dual Plane Non EFI Intake Manifold, Natural Cast Finish
1500 - 6500 RPM, Square Bore Carburettor Pad, Non-EGR
Get the maximum power from your carburetted engine with this Air Gap Holden carburetted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket square-bore carburettors with either manual or electric choke options available on today’s market. Specifically designed for Holden 304 V8 engines operating from idle to 5500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems.
Intake Runners should be port matched to your cylinder heads for optimal performance.
- Fits Holden 304 V8 Engines. Will not suit early Holden 308 cylinder heads. This is designed for late model Holden VN Engine Models Non EFI models only. Use A6010-4003 for EFI applications.
- Dual Plane Configuration.
- RPM operating range - 1500 to 6500.
- Natural Cast Finish.
- Note: This can be used with both Holden V8 cylinder heads with modifications. New holes must be drilled out in intake manifold at the correct angle and correct location. These locations are marked on the intake manifold with pilot holes predrilled.
- This intake manifold includes a blank boss on each cylinder intake runner. This can be used for EFI applications with a fuel injector or a nitrous nozzle. Each boss must be drilled out and tapped to or welded to suit your application.
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
SKU | AF6010-4000 |
Barcode # | 9337206144162 |
Brand | Aeroflow |
Shipping Weight | 9.0000kg |
Shipping Width | 0.380m |
Shipping Height | 0.280m |
Shipping Length | 0.580m |
Shipping Cubic | 0.061712000m3 |
