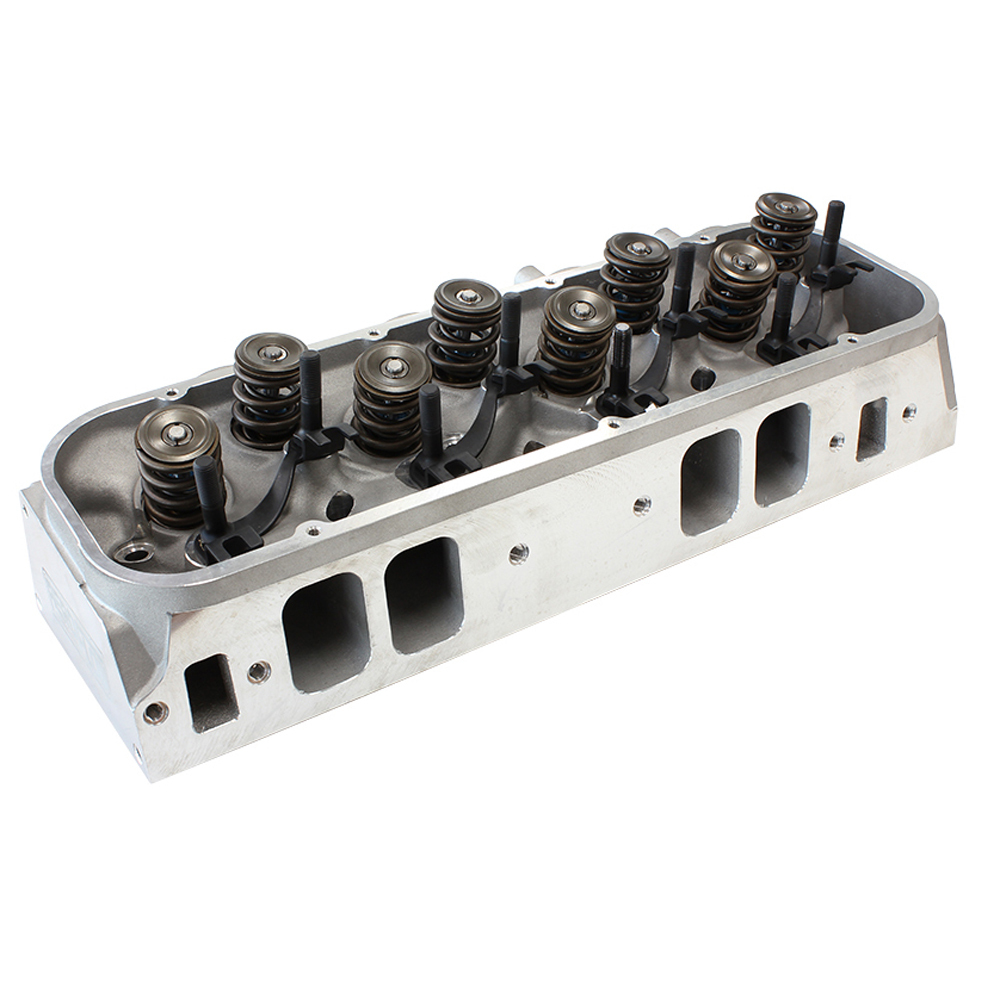

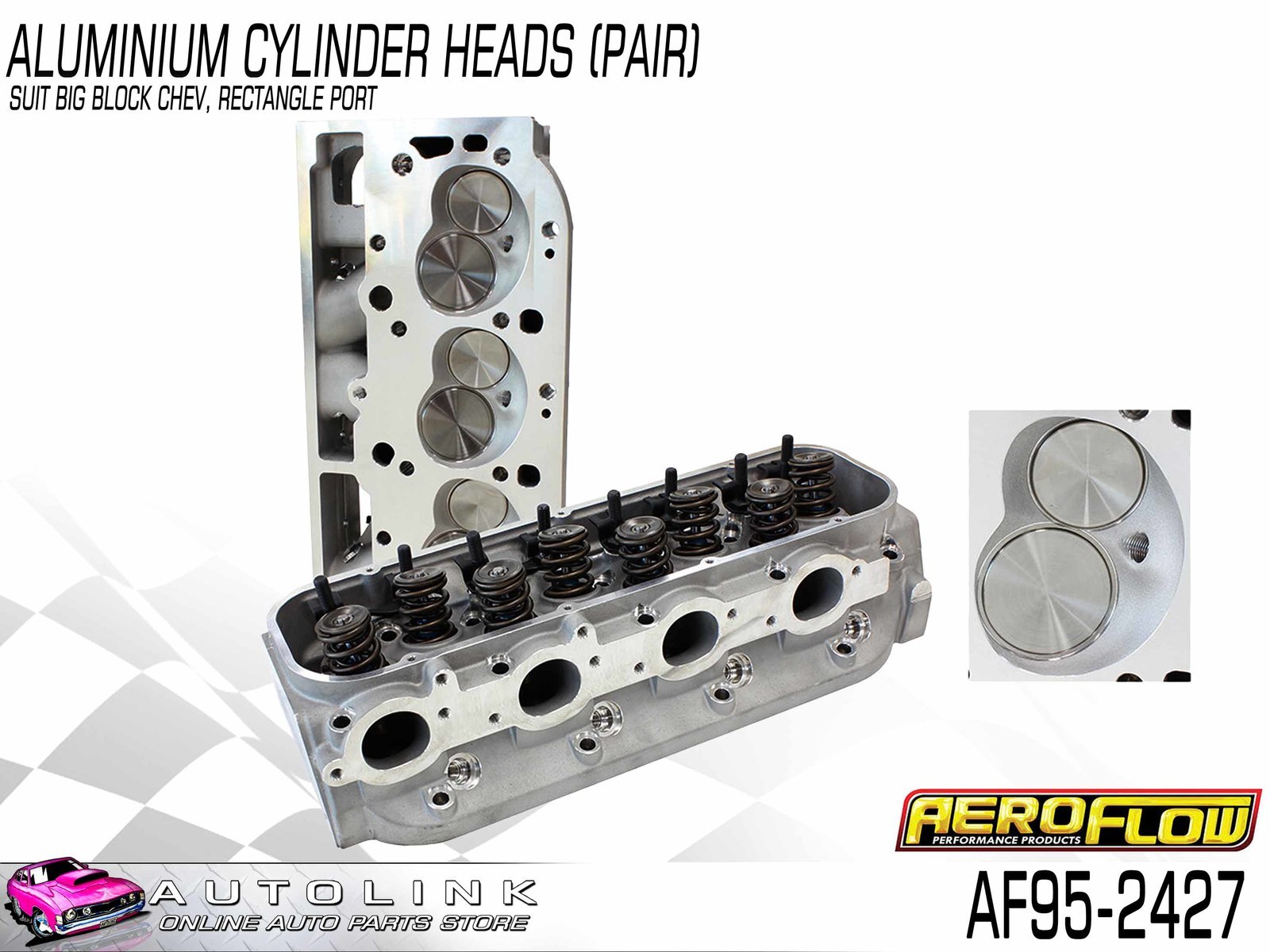

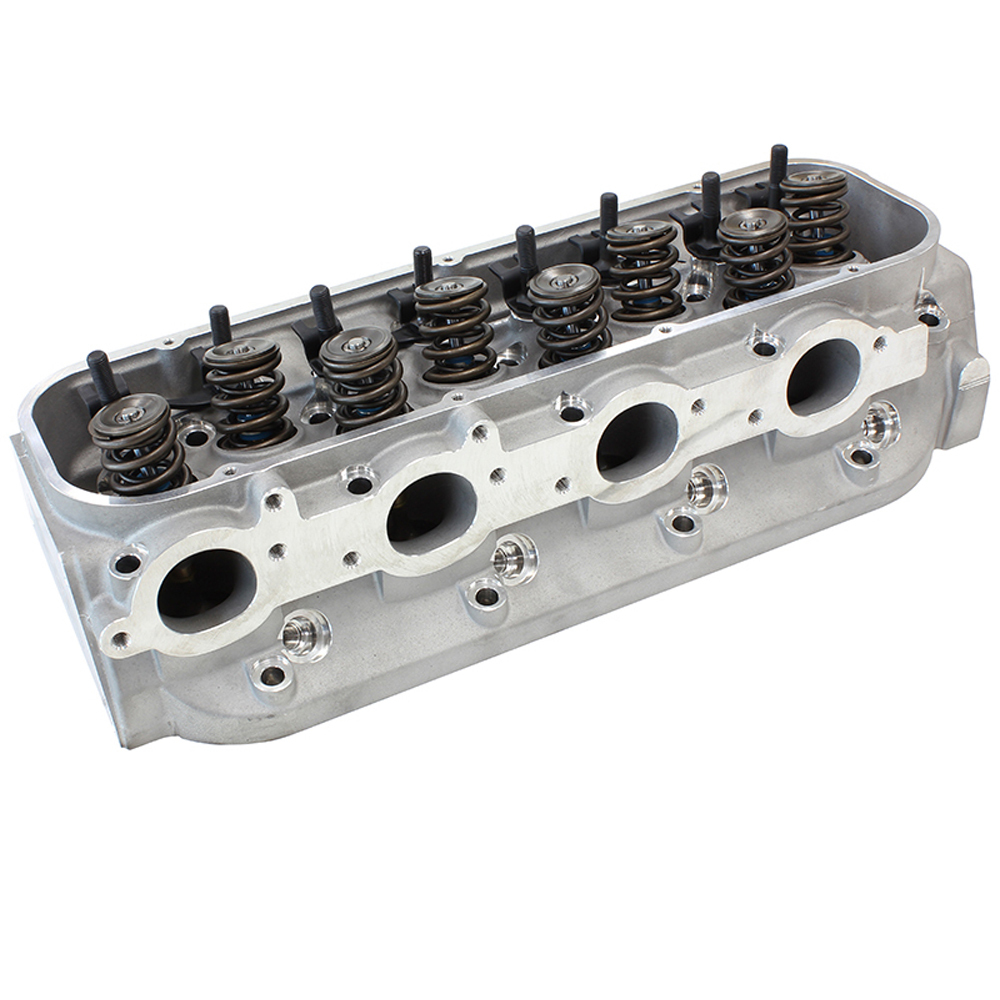

Aeroflow Big Block Chev V8 315cc Complete Aluminium Cylinder Heads AF95-2427
Description
Aeroflow Complete Aluminium Cylinder Heads Pair
Aeroflow's Big Block Chevy Cylinder Heads are designed for entry-level street performance engines and ideal for operating in the idle to 6750 rpm range. Made from A356 aluminium castings. These complete heads include larger than-stock 1.625" (41mm) diameter valve spring with damper to handle up to 0.850" (21.5mm) maximum valve lift. Recommended spark plugs are 14mm x 3/4" reach with flat gasket seat.
Head Specifications

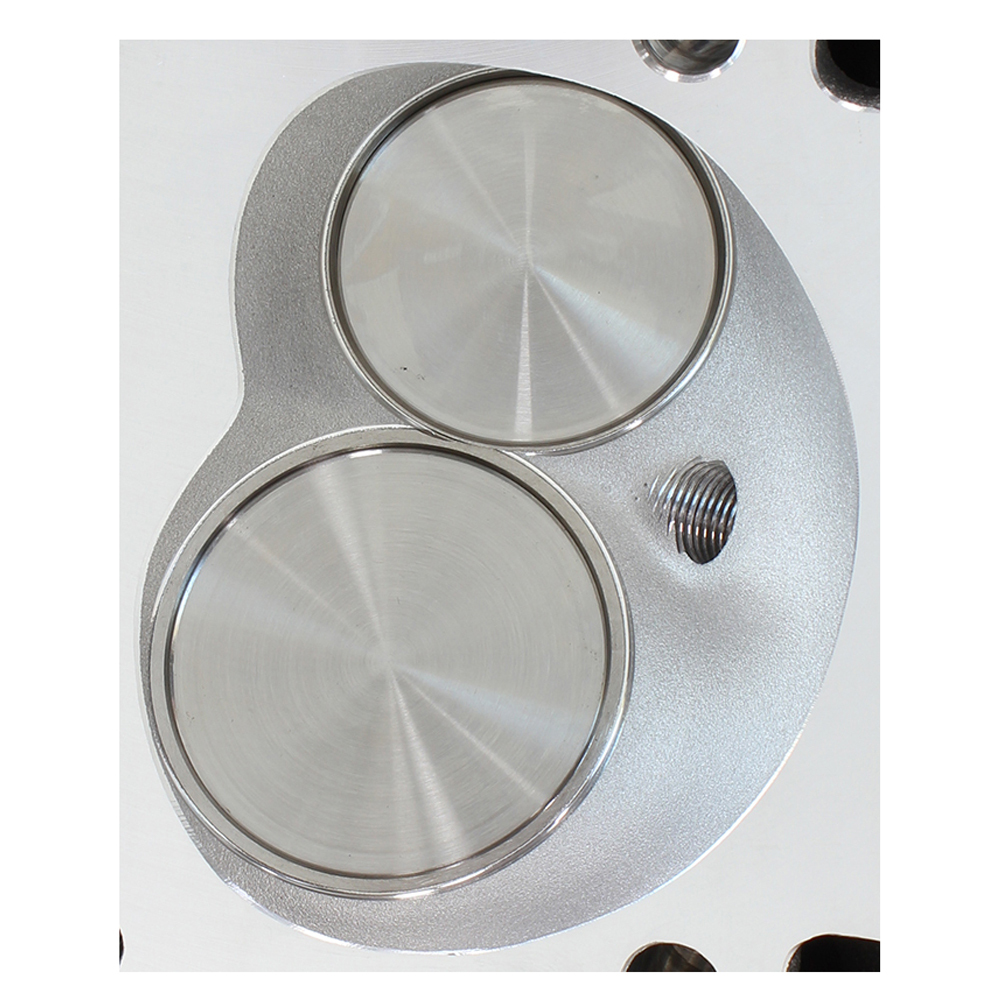

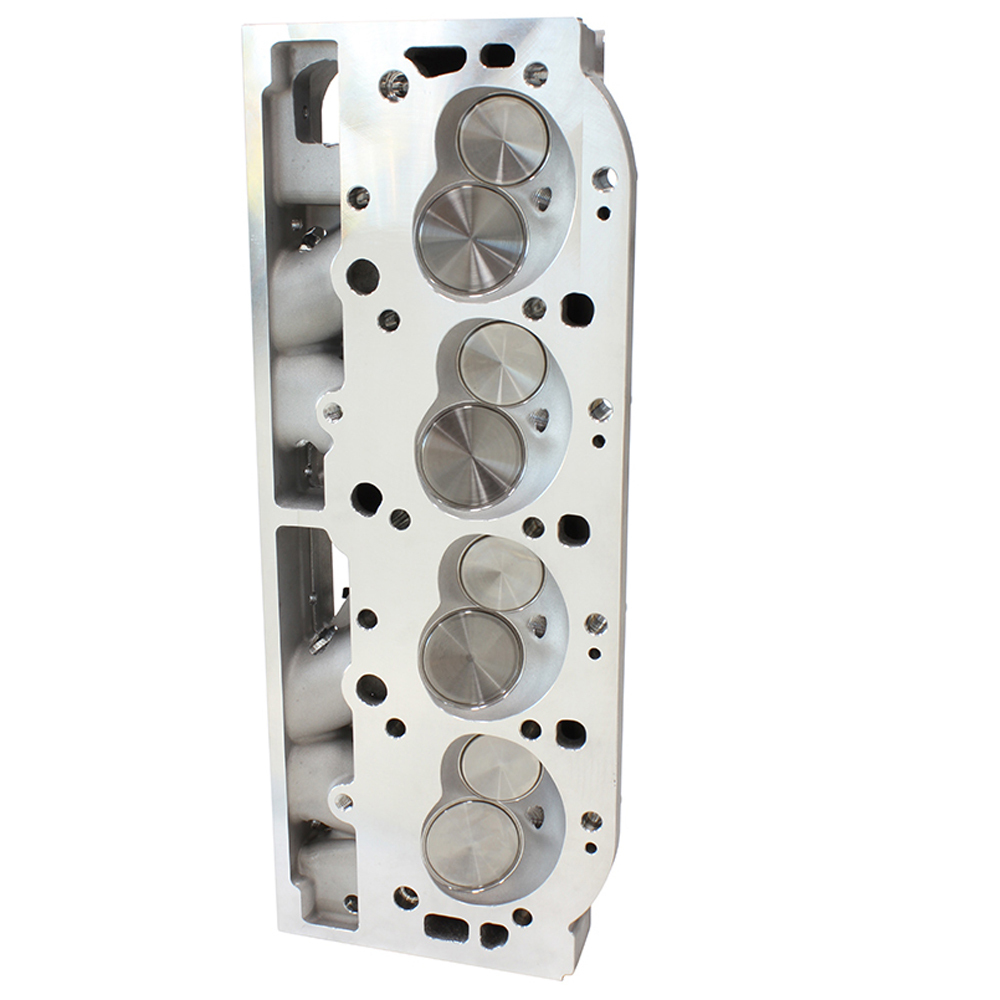

- Chamber Volume: 121cc Chamber
- Intake Port Volume: 315cc
- Intake Valve Size: 2.25"
- Exhaust Valve Size: 1.88"
- Valve Spring Diameter: Single spring with damper 1.625" (41mm)
- Spring Installed Height: 2.08" @ 100lbs
- Maximum Valve Lift: 0.850" @ 275lbs
- Rocker Stud Diameter: 7/16"
- Pushrod Diameter: 3/8" (width of slot in guide plate)
- Spark Plug Style: Straight
- Max RPM: 7400-7600
Flow Chart cfm @ H2O
.200" .300" .400" .500" .600" .700" .800"
- 2.25 Intake: 167 246 311 351 380 385 385
- 1.88 Exhaust: 142 183 236 270 294 310 313
AF95-2427
SOLD AS A PAIR
315cc Runner with 121cc Chamber
Suit Big Block Chev, Rectangle Port
