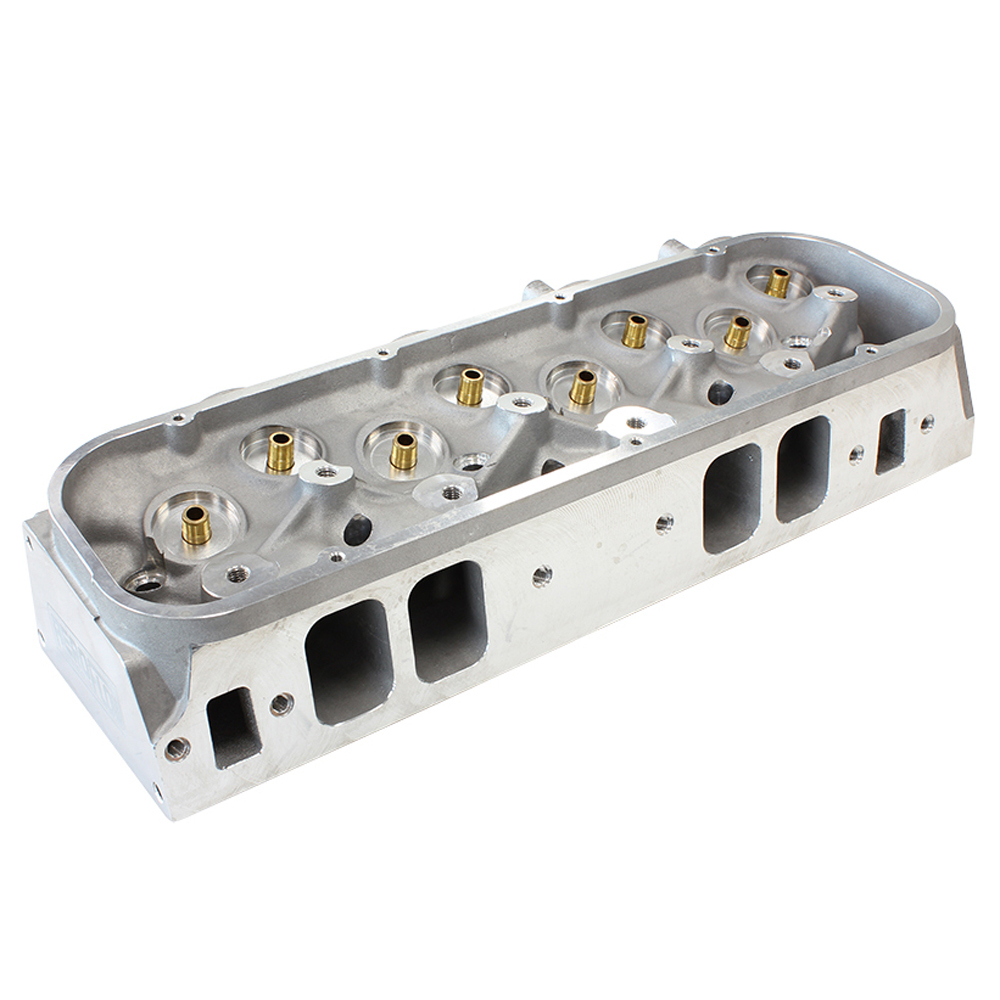

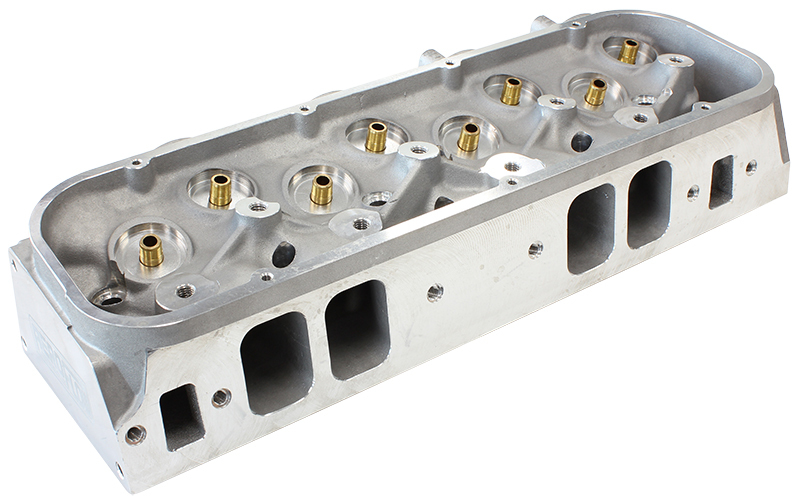

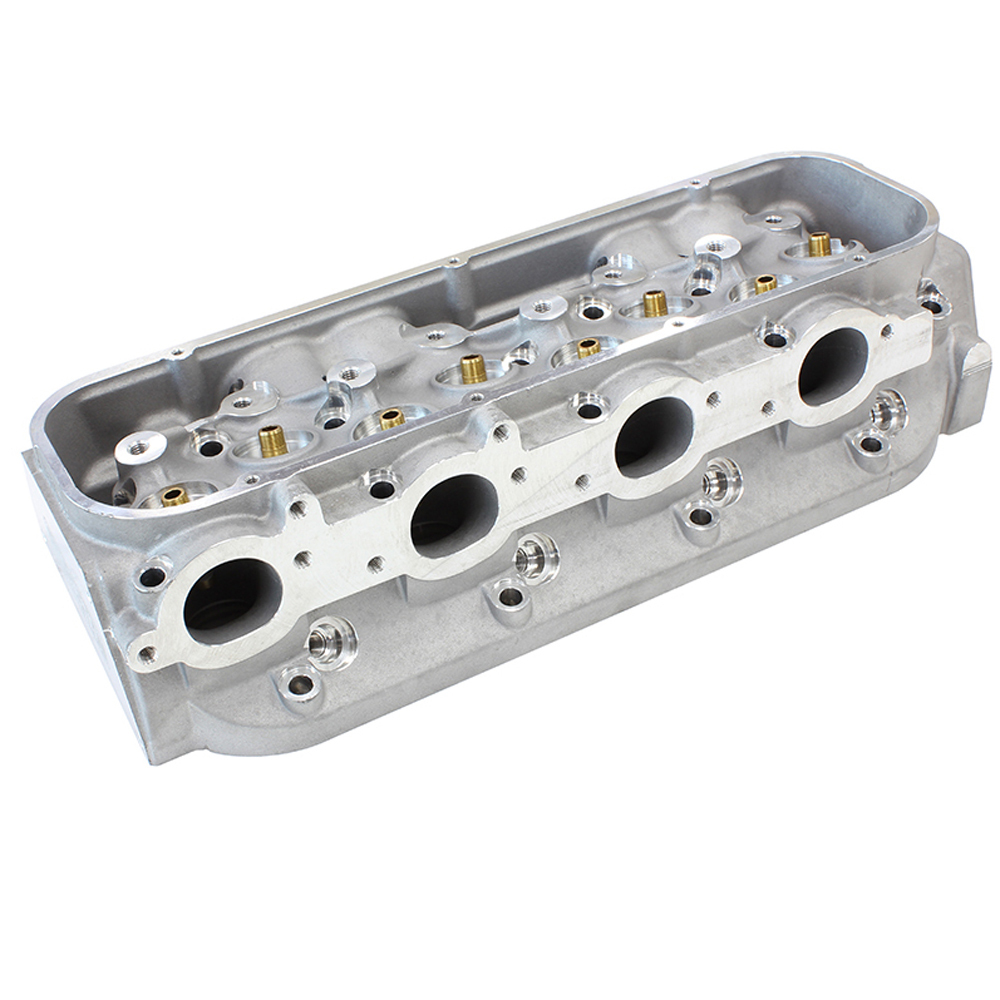

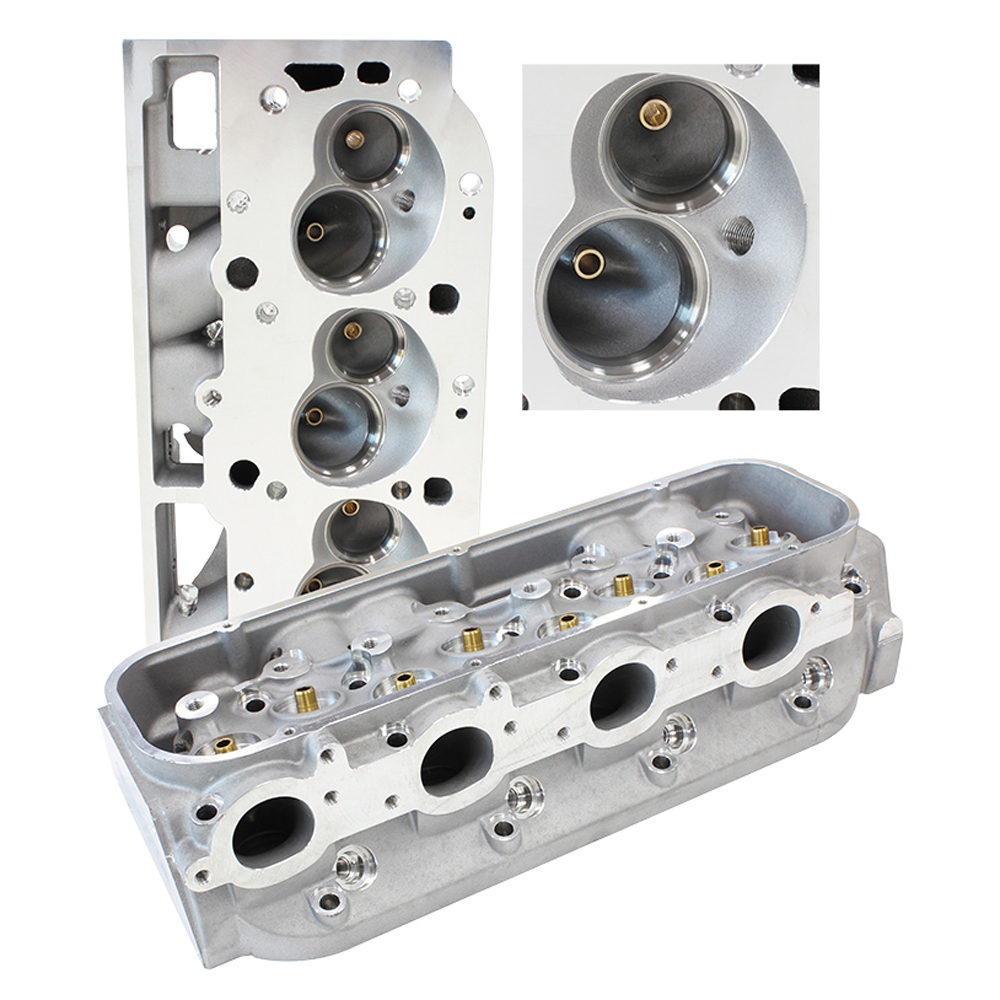

Aeroflow AF95-0427 Big Block Chev V8 315cc Bare Aluminium Cylinder Heads Pair
Description
Aeroflow Bare Aluminium Cylinder Heads Pair
AF95-0427
SOLD AS A PAIR

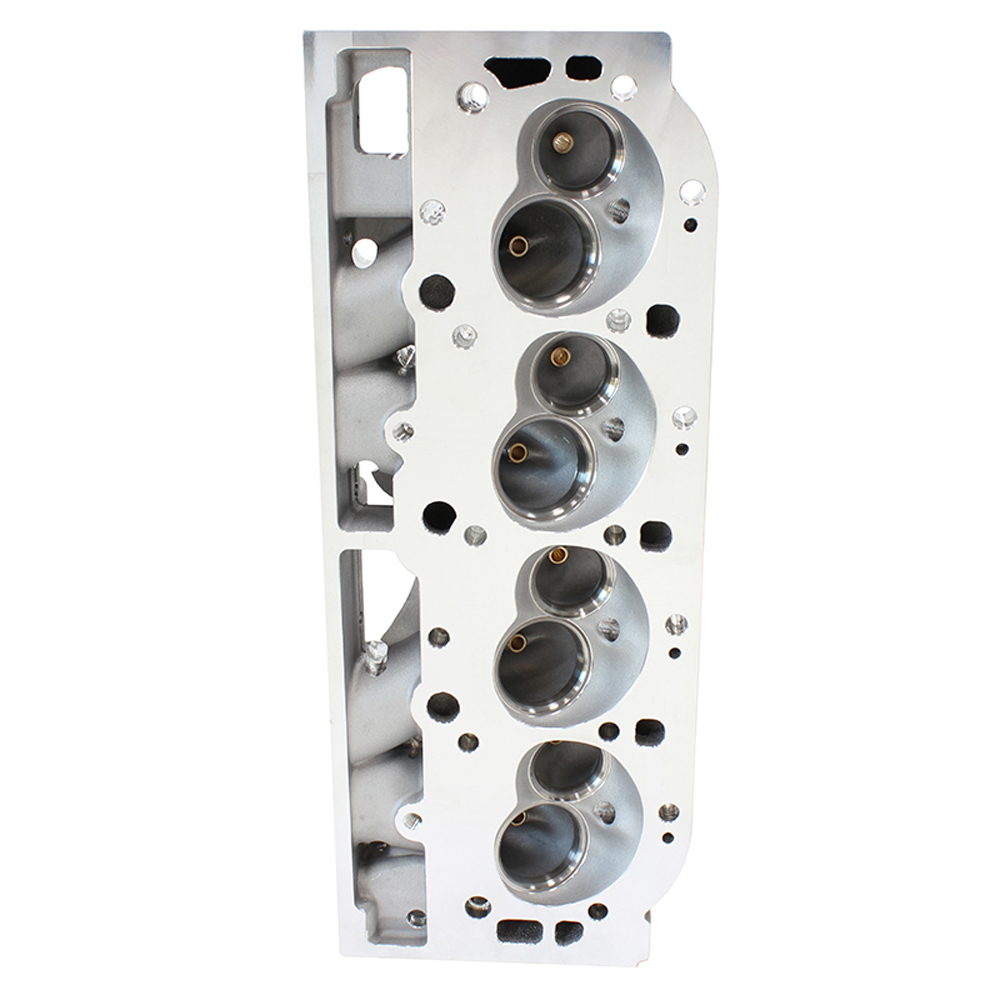

315cc runner with 121cc chamber
Suit Big Block Chev, Rectangle Port
Aeroflow's big block Chevy cylinder heads are designed for entry-level street performance engines and ideal for operating in the idle to 6750 rpm range.

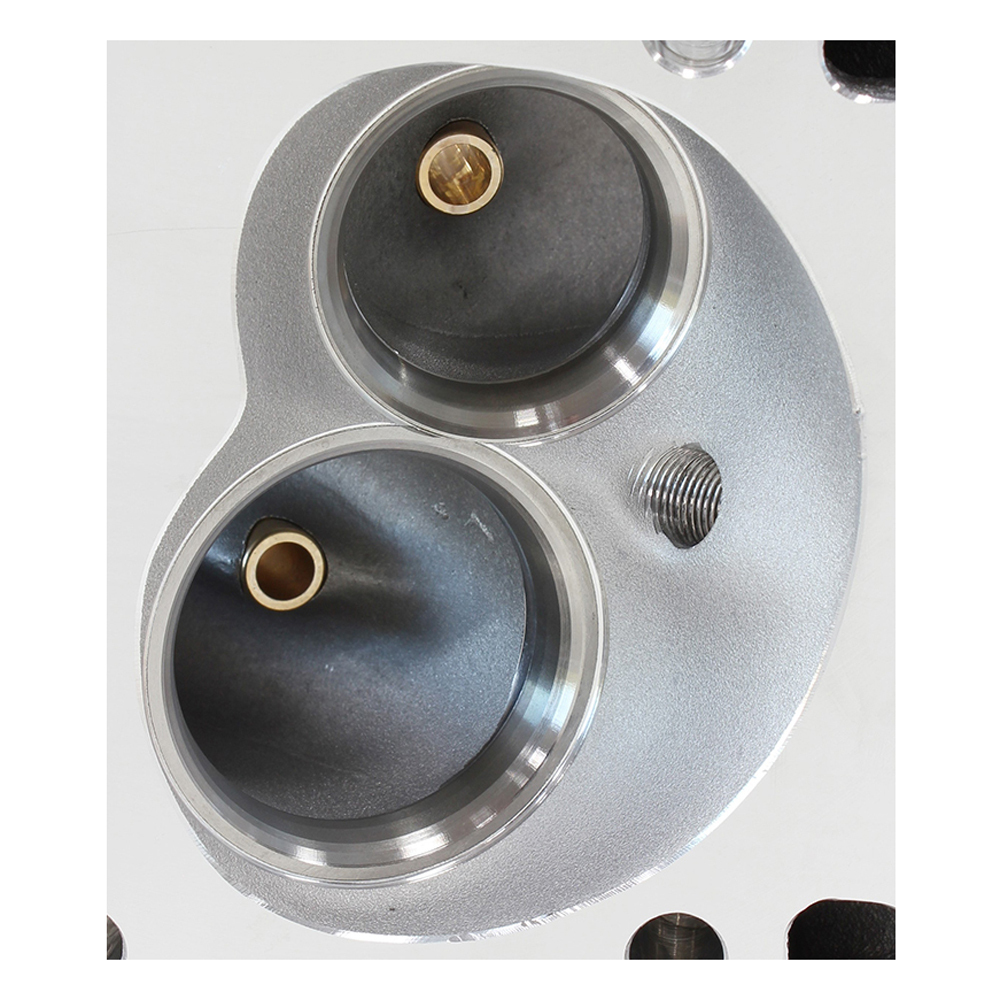

Made from A356 aluminium castings. These complete heads include larger than-stock 1.625" (41mm) diameter valve spring with damper to handle up to 0.850" (21.5mm) maximum valve lift.
Recommended spark plugs are 14mm x 3/4" reach with flat gasket seat.
The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
The Aeroflow Performance big block Chevy cylinder heads are designed for street / race performance engines to give the ultimate in flow. These heads flow 364cfm! Best suited for high revving 454, or 502ci up Big Blocks. Made from A356 aluminium castings, these rectangle port 320cc cylinder heads are ideal for operating in the idle to 6750 rpm range.
Head Specs
- Chamber Volume: 121cc Chamber
- Intake Port Volume: 315cc
- Intake Valve Size: 2.25"
- Exhaust Valve Size: 1.88"
- Valve Spring Diameter: Single spring with damper 1.625" (41mm)
- Spring Installed Height: 2.08" @ 100lbs
- Maximum Valve Lift: 0.850" @ 275lbs
- Rocker Stud Diameter: 7/16"
- Pushrod Diameter: 3/8" (width of slot in guide plate)
- Spark Plug Style: Straight
- Max RPM: 7400-7600

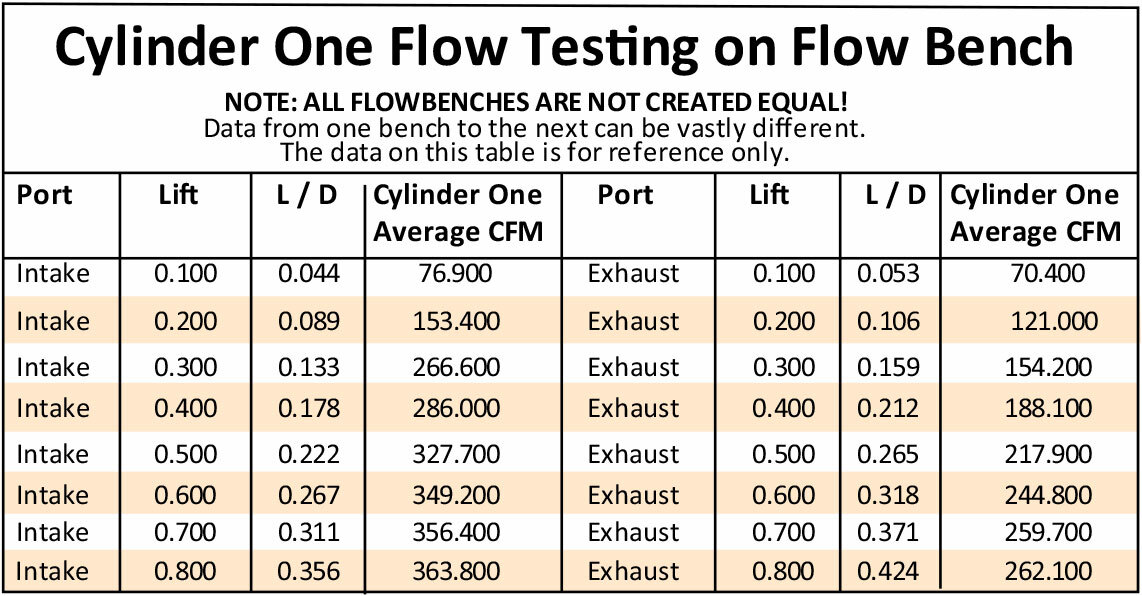

Flow Chart cfm @ H2O
.200" .300" .400" .500" .600" .700" .800"
- 2.25 Intake: 167 - 246 - 311 - 351 - 380 - 385 - 385
- 1.88 Exhaust: 142 - 183 - 236 - 270 - 294 - 310 - 313
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | AF95-0427 |
| Barcode # | 9337206102063 |
| Brand | Aeroflow |
| Shipping Weight | 20.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.400m |
| Shipping Length | 0.800m |
| Shipping Cubic | 0.160000000m3 |
