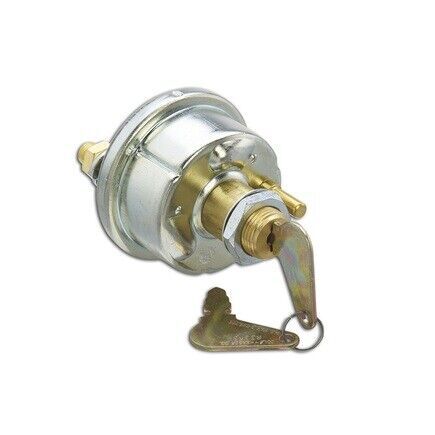

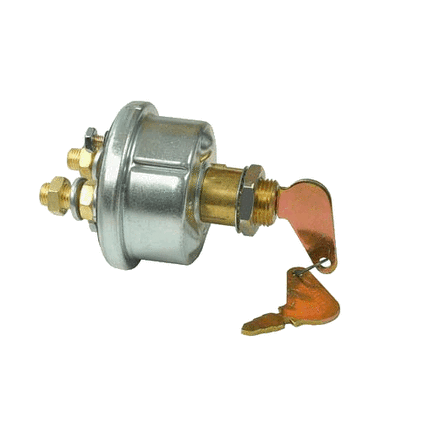

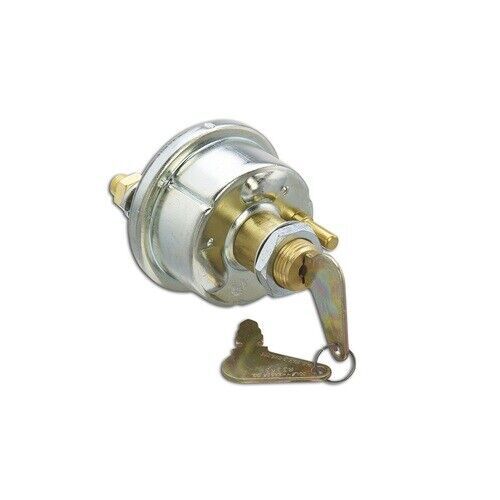

Cole Hersee 75904-03-BX 2 Position Battery Master Switch With Key On/Off 125A
Description
BATTERY MASTER / ISOLATION
SWITCH WITH TWO KEYS
2 POSITION: ON - OFF
(CONTACTS RATED 125Amp)
75904-03-BX
SOLD AS EACH
Specifics
Part No. 75904-03-BX
Type BATTERY MASTER SWITCH
Brand COLE HERSEE
Unit of Measure EACH
Description Cole Hersee Battery Master Switch With Keys Dpst On/Off
Warranty One Year
Number of Terminals 2
Power Rating (Amp) 125
Switch Action On - Off - DPST
Voltage 12
Lamp Colour/s Not Applicable
Mount Diameter 19mm
Mount Length 6mm
Note Lockout options include ACX3417BL, 24505-01BL, 24505-01RBL or 24505-01YBL
Number of Poles 1
Number of Positions 2
Switch Type Battery Master / Isolation
Switch Illumination Non Illuminated
Features
• 6V - 36V multivoltage
• 125A continuous, small contact 20A
• 1000A intermittent
• DPST On / Off
• Battery and field master switching
• 2 x battery stud 3/8"-24
• 2 x field stud 10-32
• Mounting stem 3/4"-24 thread, L 13mm
• Suits panel thickness to 6.5mm
• Copper contacts
• Weather resistant
• Indexing pin: No
• Application: Heavy duty, mining
• Dimensions: H 91 x Ø 67mm
• Lockout use 24505-01BL, 24505-01RBL, 24505-01YBL or ACX3417BL
