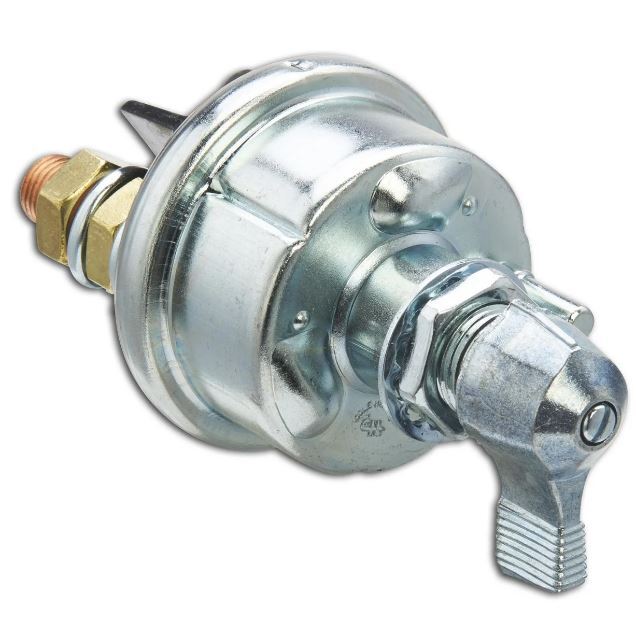

Cole Hersee 75907BL Battery Master Switch Dpst On/Off - 300A
Description
BATTERY MASTER / ISOLATION
SWITCH 2 POSITION: ON - OFF
(CONTACTS RATED 300Amp)
75907BX
SOLD AS EACH
Specifics
- Part No. 75907BX
- Type BATTERY ISOLATOR
- Brand COLE HERSEE
- Unit of Measure EACH
- Description Cole Hersee Battery Master Switch Dpst On/Off
- Warranty One Year
- Number of Terminals 4
- Power Rating [Amp] 300
- Switch Action On - Off - DPST
- Voltage 12
- Lamp Colour/s Not Applicable
- Mount Diameter 19mm
- Mount Length 6mm
- Number of Poles 2
- Number of Positions 2
- Switch Type Battery Master / Isolation
- Switch Illumination Non Illuminated
Note
- Lockout options include ACX3417BL, 24505-01BL, 24505-01RBL or 24505-01YBL; Mounting Bracket to suit ACX3405
Features
- 12V DC
- 300A continuous, small contact 20A
- 2000A intermittent
- DPST On / Off
- Battery and field master switching
- 2 x battery stud 1/2"-20
- 2 x field stud 10-32
- Mounting stem 3/4"-24 thread, L 13mm
- Suits panel thickness to 6.5mm
- Silver contacts, chrome lever
- Weather resistant, O-ring sealed
- Indexing pin aligns switch and prevents rotation
- Application: Heavy duty, mining
- Dimensions: H 110 x Ø 67mm
- Lockout use 24505-01BL, 24505-01RBL, 24505-01YBL or ACX3417BL
