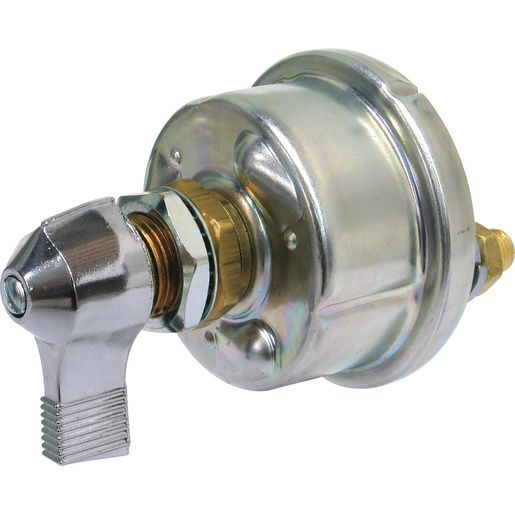

Cole Hersee 75904BX 2 Position Battery Master Switch DPST On/Off 125A
Description
BATTERY MASTER / ISOLATION
SWITCH
2 POSITION: DPST ON - OFF
(CONTACTS RATED 125Amp)
75904BX
SOLD AS EACH
Specifics
Part No. 75904BX
Type BATTERY MASTER SWITCH
Brand COLE HERSEE
Unit of Measure EACH
Description Cole Hersee Battery Master Switch Dpst On/Off
Warranty One Year
Number of Terminals 2
Power Rating (Amp) 125
Switch Action On - Off - DPST
Voltage 12
Lamp Colour/s Not Applicable
Mount Diameter 19mm
Mount Length 6mm
Note Lockout options include ACX3417BL, 24505-01BL, 24505-01RBL or 24505-01YBL
Number of Poles 1
Number of Positions 2
Switch Type Battery Master / Isolation
Switch Illumination Non Illuminated
Features
• 6V - 36V multivoltage
• 125A continuous, small contact 20A
• 1000A intermittent
• DPST On / Off
• Battery and field master switching
• 2 x battery stud 3/8"-24
• 2 x field stud 10-32
• Mounting stem 3/4"-24 thread, L 13mm
• Suits panel thickness to 6.5mm
• Copper contacts
• Weather resistant
• Indexing pin: No
• Application: Heavy duty, mining

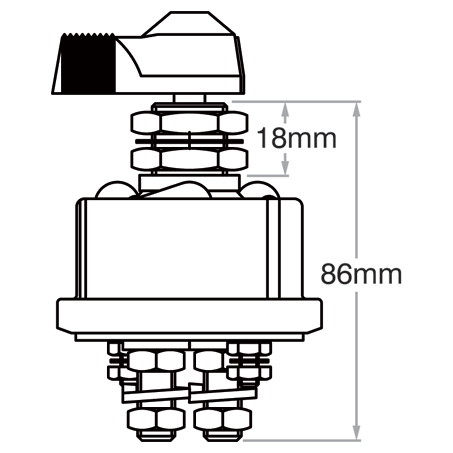

• Dimensions: H 91 x Ø 67mm
• Lockout use 24505-01BL, 24505-01RBL, 24505-01YBL or ACX3417BL
