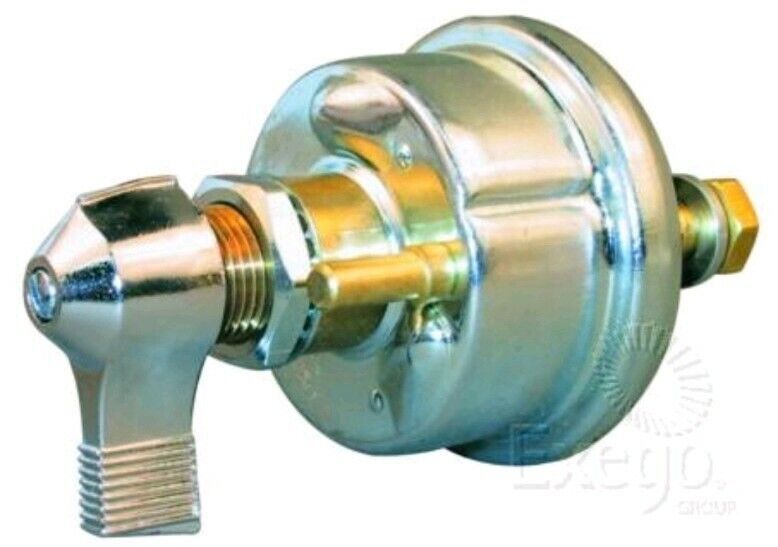

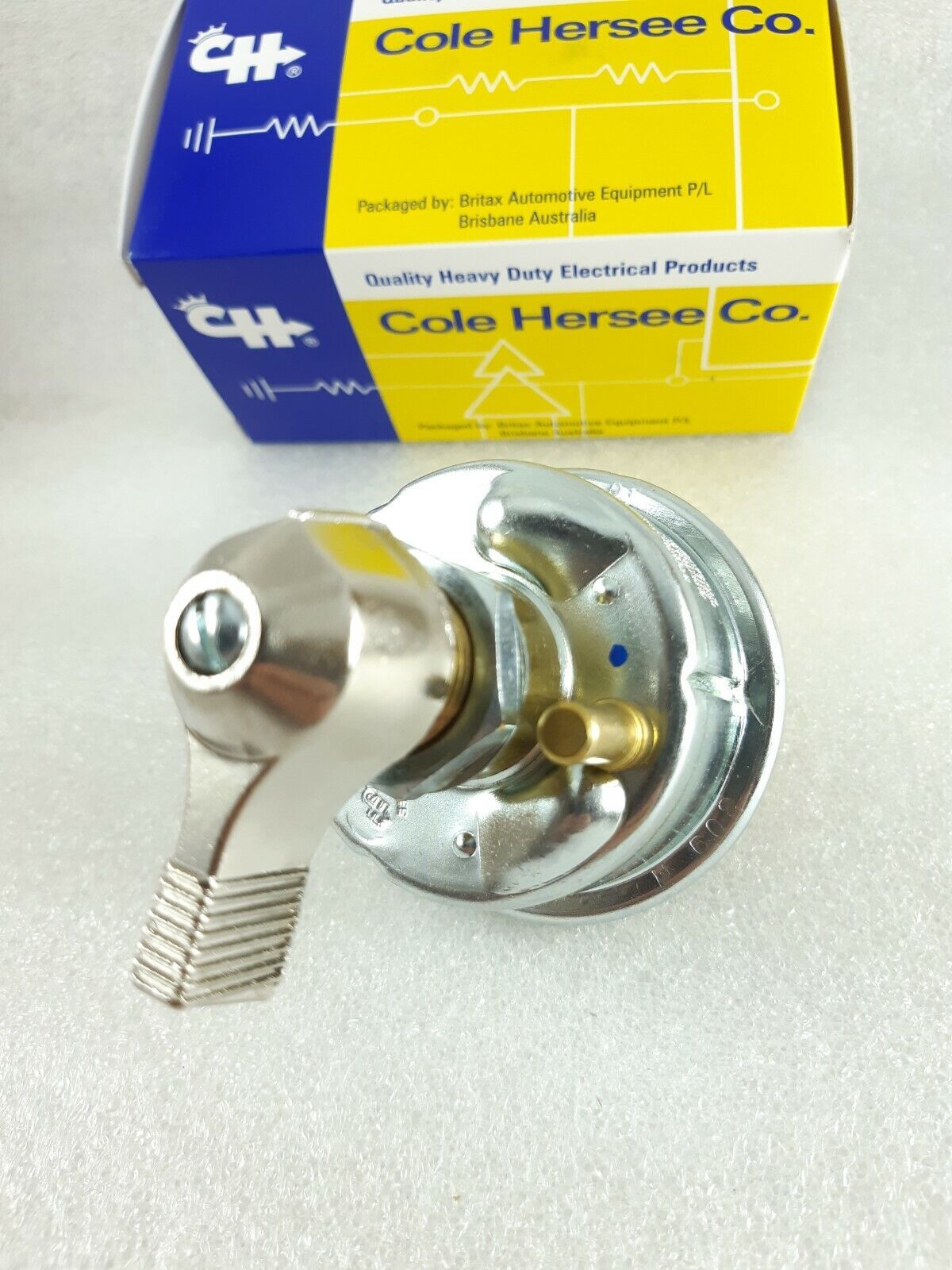

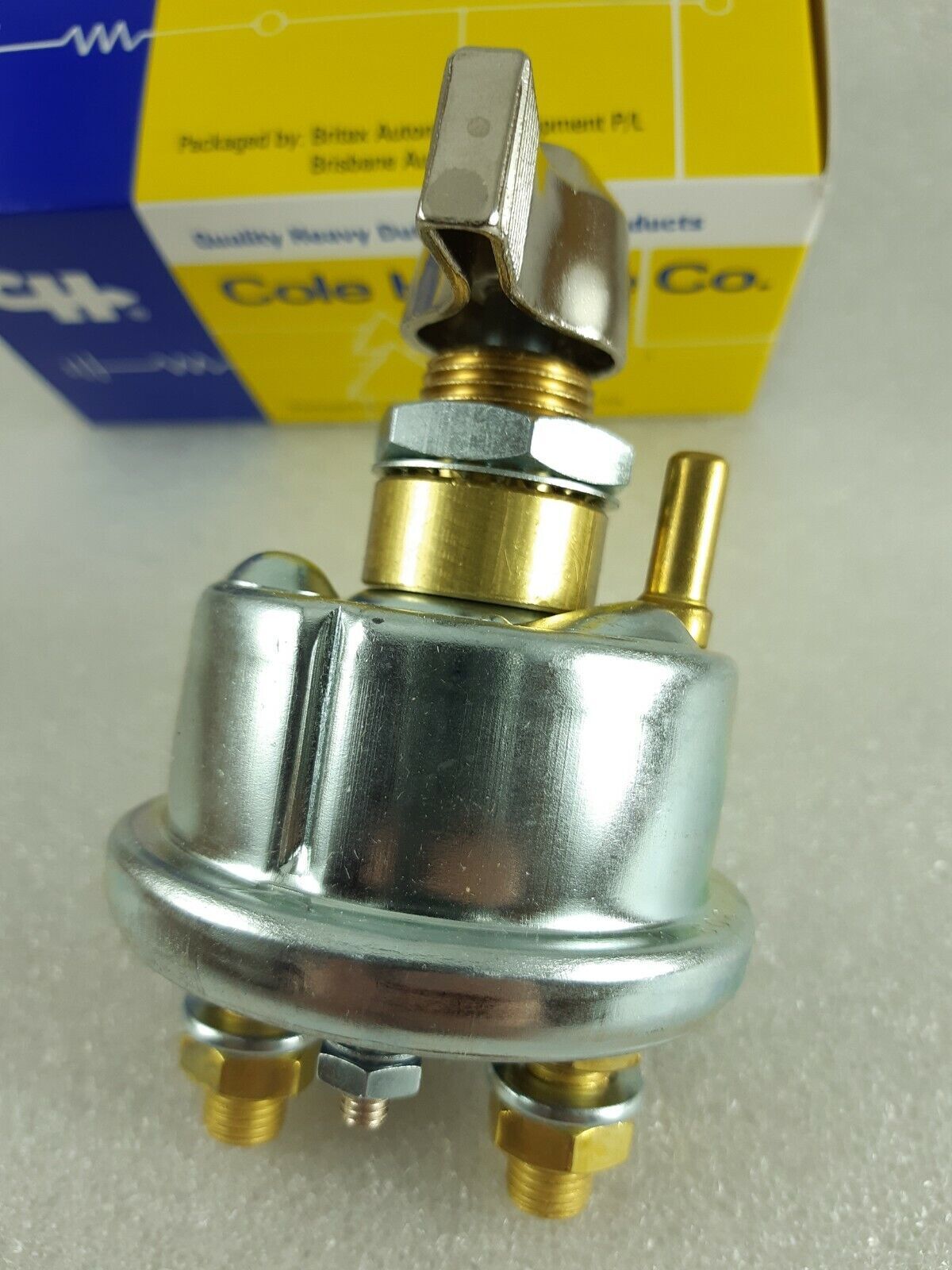

Cole Hersee 75910BX 2 Position Battery Master Switch DPST On/Off 125A
Description
BATTERY MASTER / ISOLATION
SWITCH
2 POSITION: DPST ON - OFF
(CONTACTS RATED 125Amp)
75910BX
SOLD AS EACH
Specifics
Part No. 75910BX
Type BATTERY MASTER SWITCH
Brand COLE HERSEE
Unit of Measure EACH
Description Cole Hersee Battery Master Switch Dpst On/Off
Warranty One Year
Number of Terminals 4
Power Rating (Amp) 125
Switch Action On - Off - DPST
Voltage 6-36V
Lamp Colour/s Not Applicable

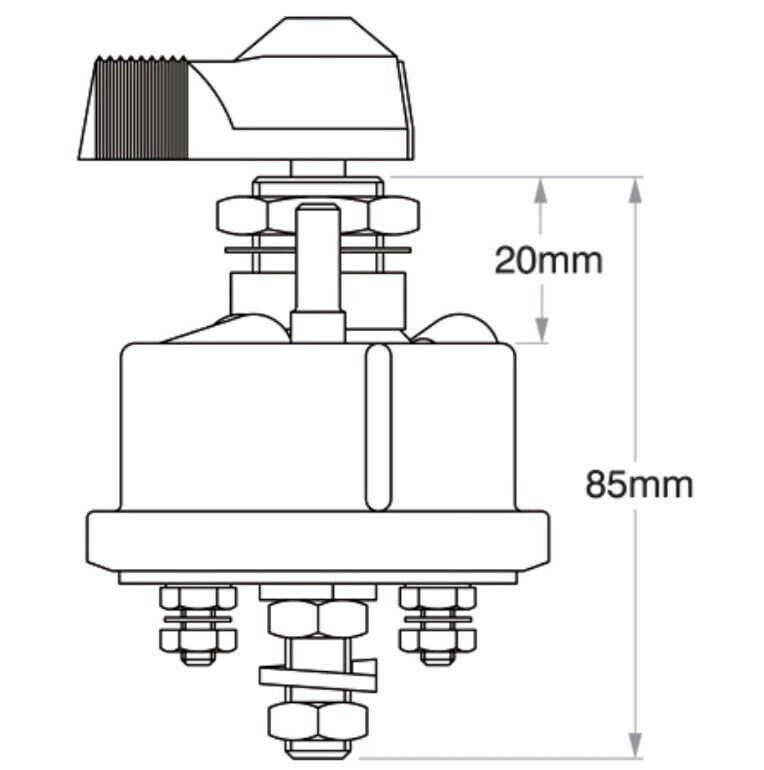

Mount Diameter 19mm
Mount Length 6mm
Note Lockout options include ACX3417BL, 24505-01BL, 24505-01RBL or 24505-01YBL
Number of Poles 2
Number of Positions 2
Switch Type Battery Master / Isolation
Switch Illumination Non Illuminated
Features
• DPST On / Off
• 125A continuous, 1000A intermittent
• 6V-36V multivoltage

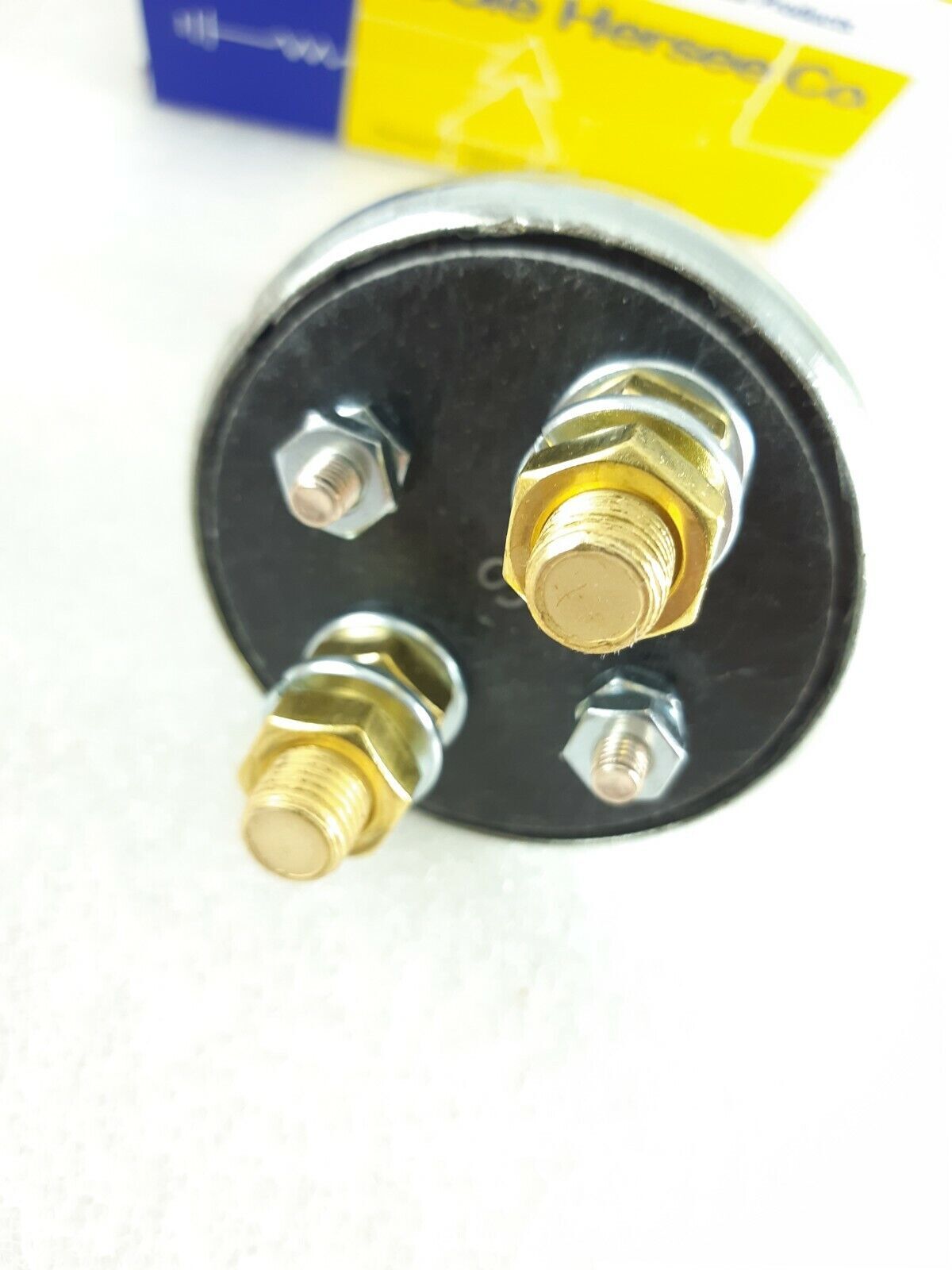

• 10mm main terminal studs
• 4.5mm field terminal studs
• Weather resistant, O-ring sealed
• Silver contacts
• Brass mounting stem and studs
• Chrome plated die cast alloy lever
• Brass indexing pin prevents rotation
• Steel plated casing
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | 75910BX |
| Barcode # | 9314728022550 |
| Brand | COLE HERSEE |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.100m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.003750000m3 |
| Unit Of Measure | ea |
