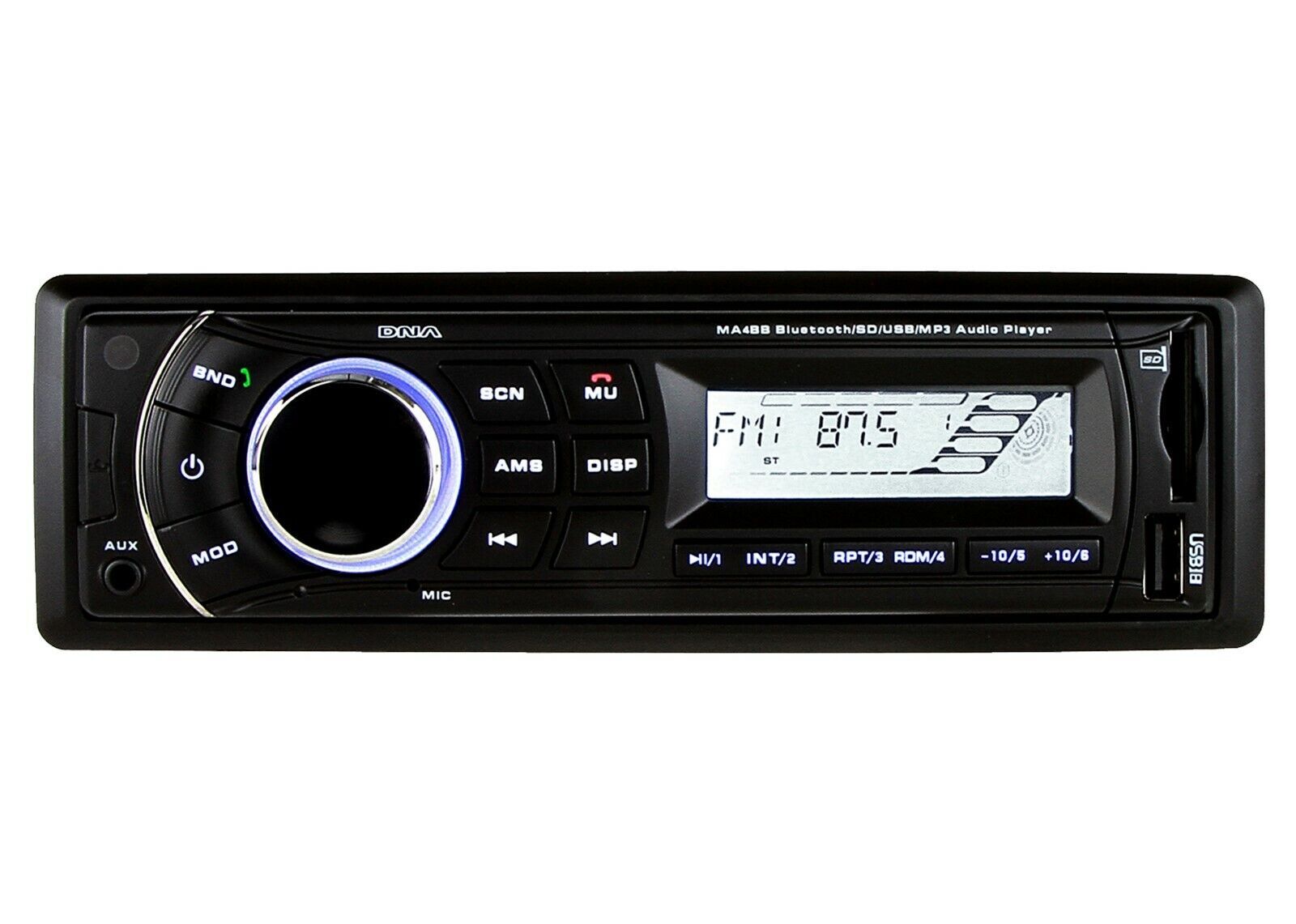

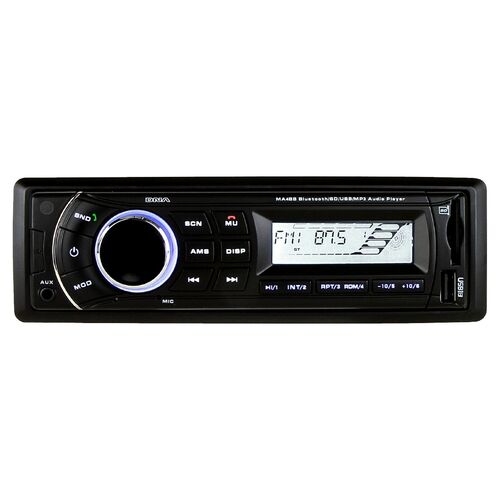

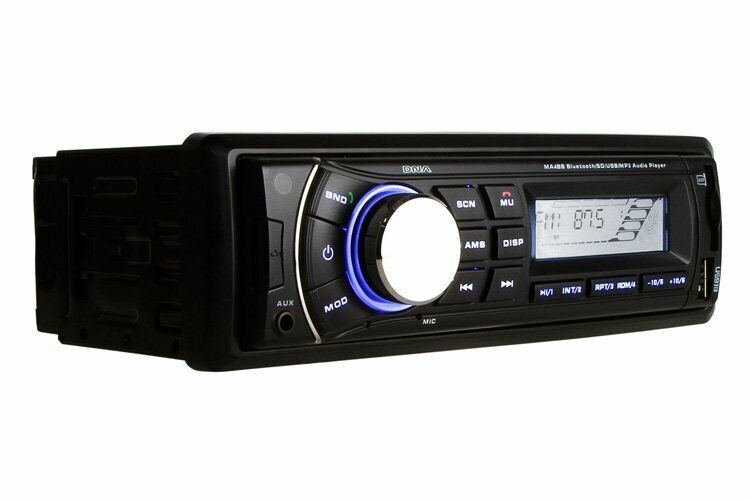

Dna MA4BB Black Bluetooth USB/SD MP3 Player with AM/FM tuner and AUX audio input

Dna

Black Bluetooth USB/SD MP3 Player with AM/FM tuner and AUX audio input

MA4BB

SOLD AS EACH



Marine Bluetooth USB/SD MP3 Player with AM/FM tuner and AUX audio input



This marine 4 channel AM/FM Bluetooth MP3 player is ideal for installation applications in the dashboard making it ideal for use on boats or other outdoor vehicles. The unit features Bluetooth streaming and Bluetooth hands-free and AUX, SD and USB inputs on the front for playback from modern audio devices like USB flash sticks, SD cards, MP3 players, Iphones, Smartphones, iPods etc.



Bluetooth A2DP features:

Allows music to be streamed from handheld devices via a Bluetooth A2DP audio connection.



Bluetooth Pairing

To pair your phone to the MA4B set your phone to search for a new device and select ‘Car Audio’ when found. If the phone is requesting for a pin number, enter 8888 to pair). Once paired “BT ON” will be display on the screen momentarily.



Hands free calling features:

Allows phone calls via the boat’s audio system using most Bluetooth enabled mobile phones, including the iPhone. Keep your phone safely tucked away and still make phone calls using the boat’s audio system.



USB Audio features:

Connected from front of head unit. Play music from USB flash drive units. Plays MP3, WMA music formats. Will handle up to 8GB but is dependent on the memory’s software. MP3 and WMA playback with ID3 tags. Fitted with rubber protection cover.



SD Audio features:

Connected from front of head unit. Play music from SD memory card units. Plays MP3, WMA music formats. Will handle up to 8GB but is dependent on the memory’s software. MP3 and WMA playback with ID3 tags. Fitted with rubber protection cover.



AUX Audio input features:

Front 3.5mm stereo socket input on head unit. Ideal for many devices to be connected: including: portable CD players, walkmans, MP3 players, in fact anything that has a headphone or line output



Radio tuner features:

AM / FM PLL (phase locked looped) ETR (electronic tune radio) tuner, 30 station presets (18FM and 12AM) AS/PS feature / Local/DX / band button / tune seek up or down



Display: Positive LCD display (black on blue) with blue light up buttons.

Face colour: White face and trim plate with grey buttons and grey volume knob with chrome ring



Remote control: 21 Button remote control



Marine features: Conformal epoxy coating on all PCB circuit boards to prevent damage from high humidity and salt. Rust-resistant EDP (Electro deposit paint) coating on the chassis and PET cover on top and left and right sides



General features: 100W - 4 x 25 watt max power / detachable face / din surround or rear mount / electronic audio control (bass, treble, fader, balance, volume) / EQ control (digital sound processing - classical, pop, rock etc) / mono/stereo / clock / AS/PS / Mode

Mounting dimensions:50mm(H) x 178mm(W) x 90mm(D)



Input / output wires: 2 x RCA audio line output sockets (1.2 Volt) / antenna socket / male harness plug to male ISO connector with 2 female ISO plugs to bare ends (30cm).

Packaging: DNA Gift box



NOTE:  If your boat / vehicle does not have a seperate accessory wire circuit, make sure the red (ignition/accessory 12v) wire and the yellow (memory backup 12v) wire on this unit are both connected to the same 12 volt power source in the boat / vehicle.



This unit also available in white (MA4B)
