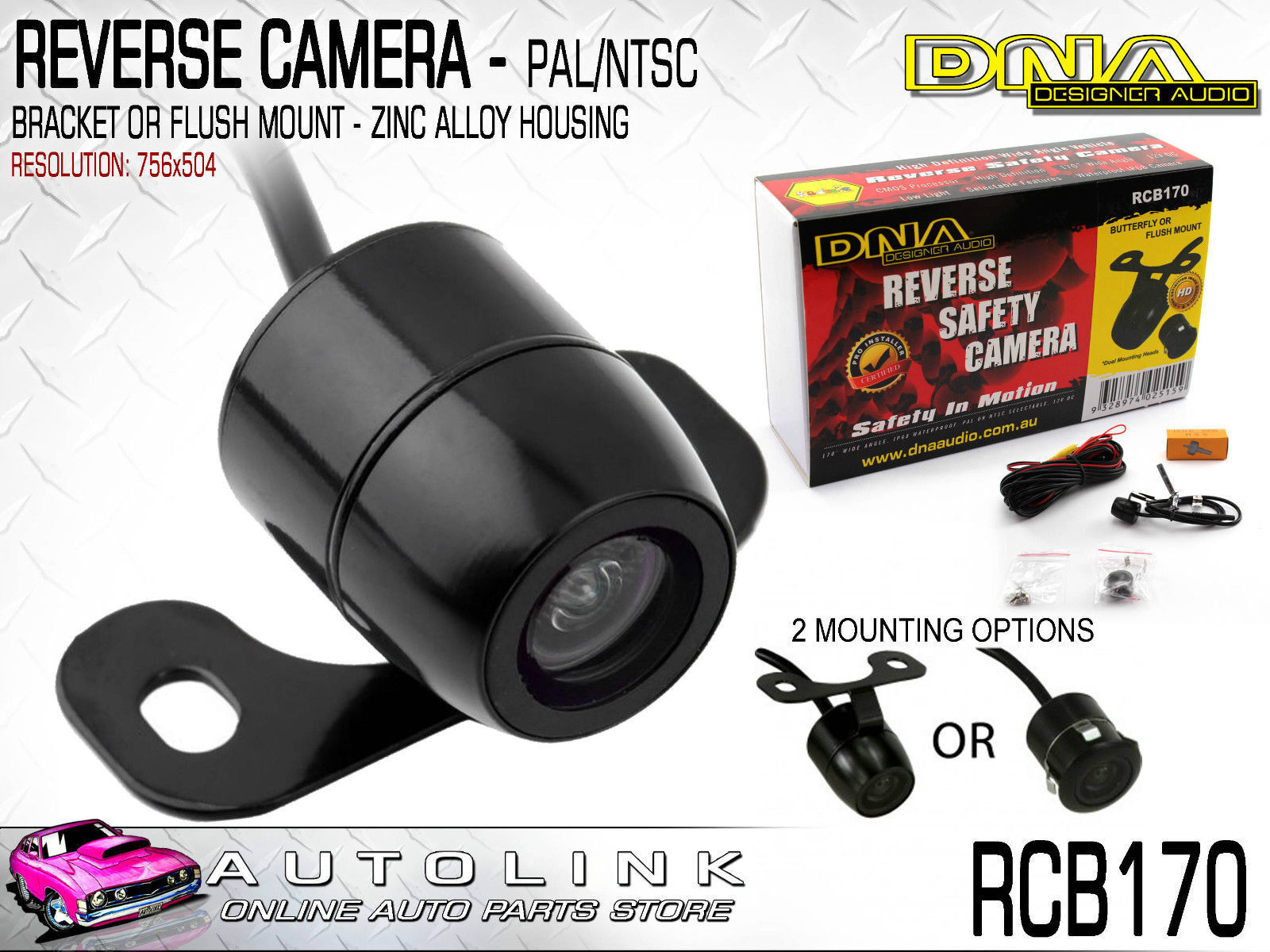

DNA RCB170 REVERSE CAMERA CMOS PAL/NTSC 756 x 504 RES - FLUSH OR BRACKET MOUNT
Description
CMOS REVERSE CAMERA
MOUNTING OPTIONS: BUTTERFLY BRACKET OR FLUSH MOUNT
RCB170
SOLD AS EACH

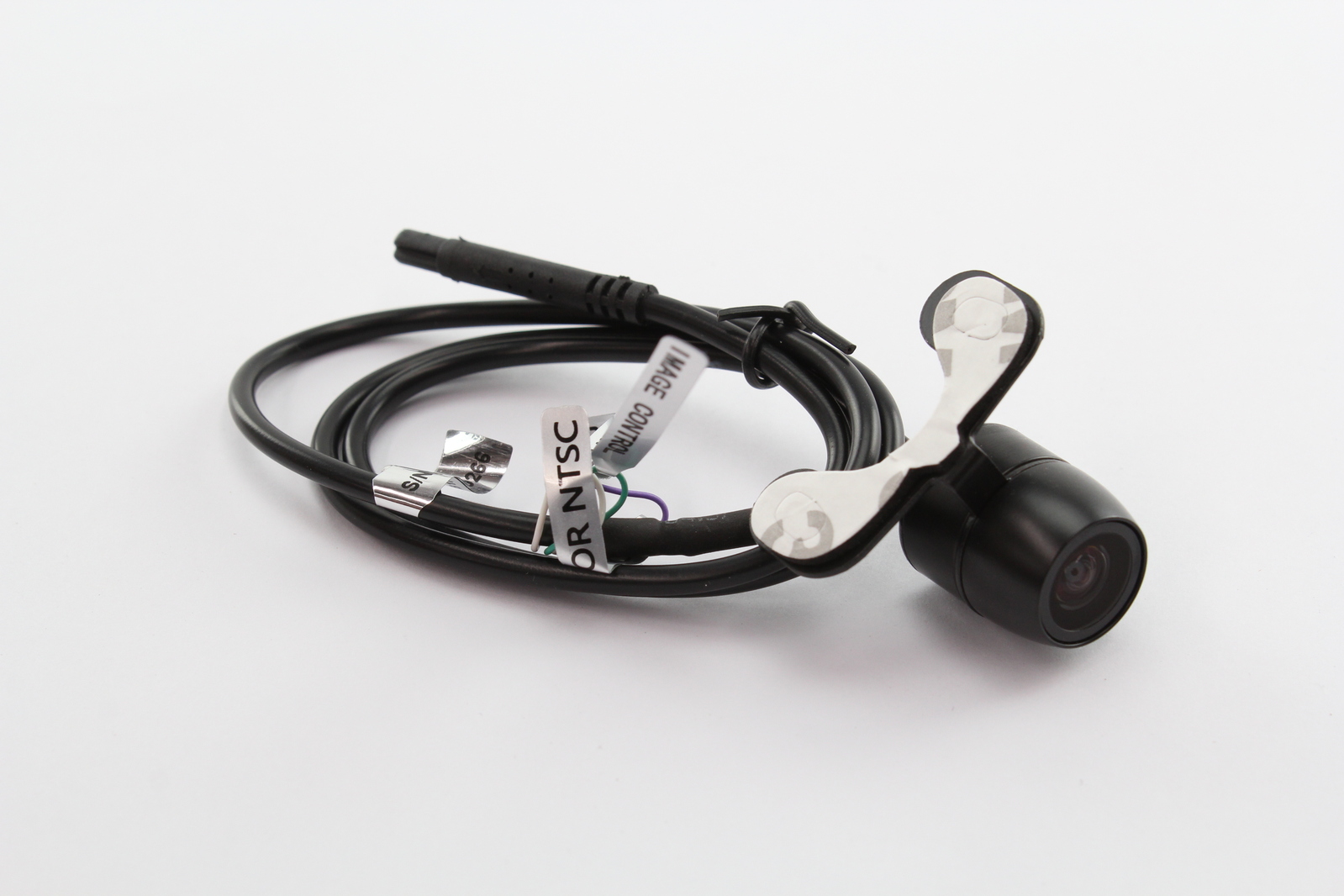

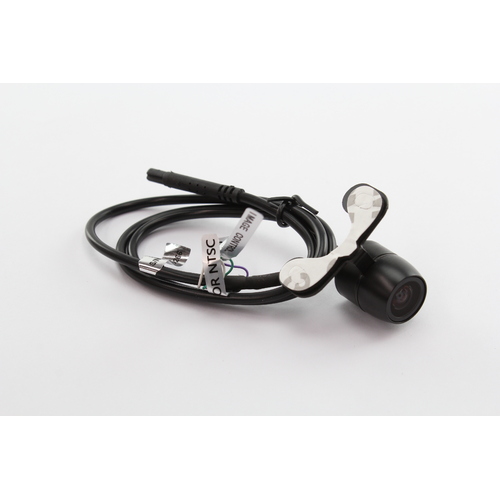

This miniature butterfly camera is a truly universal solution for multipurpose vehicle installations.
Universal, Zinc Alloy Housing, Miniature, Side Mounting Option
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*
Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.

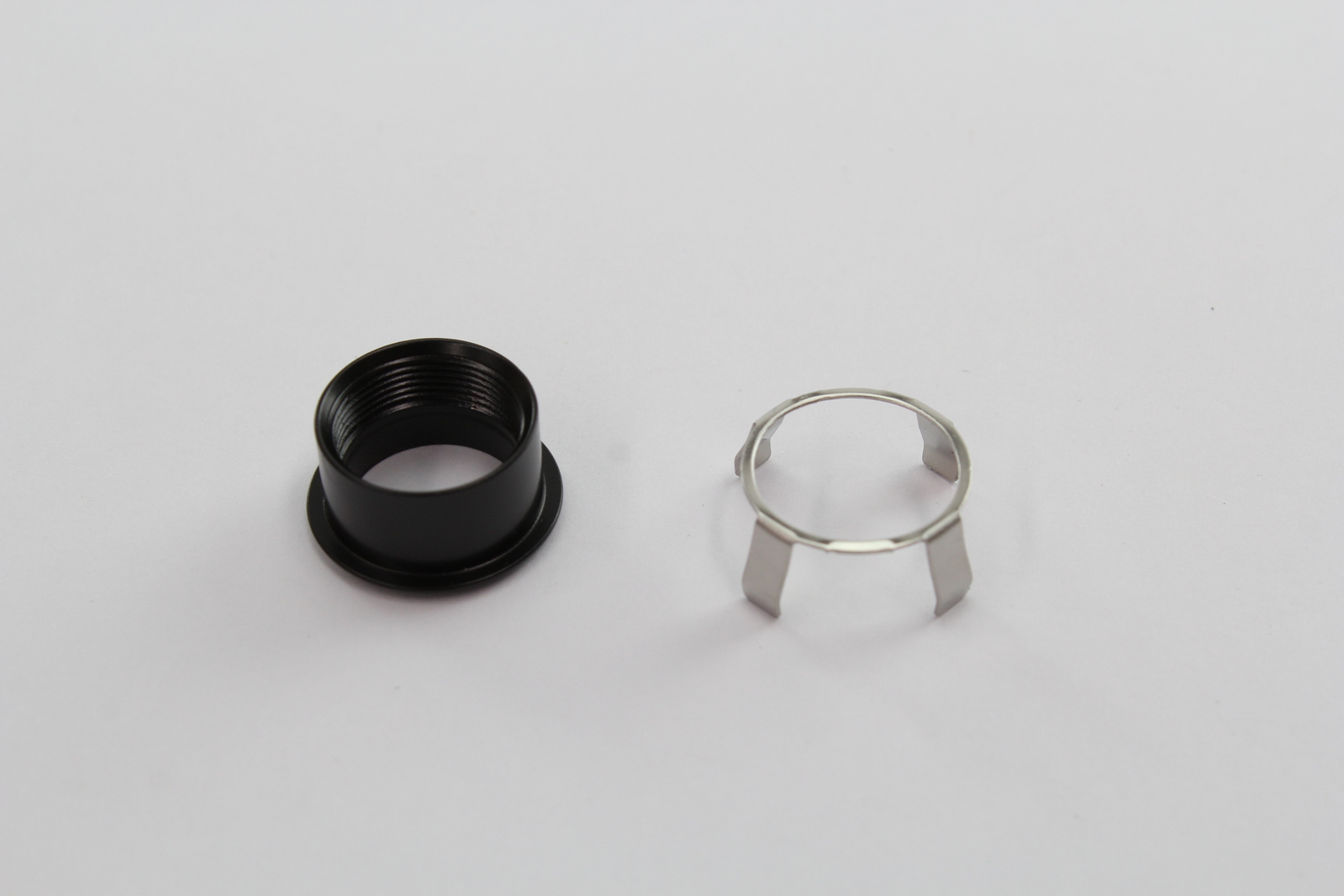

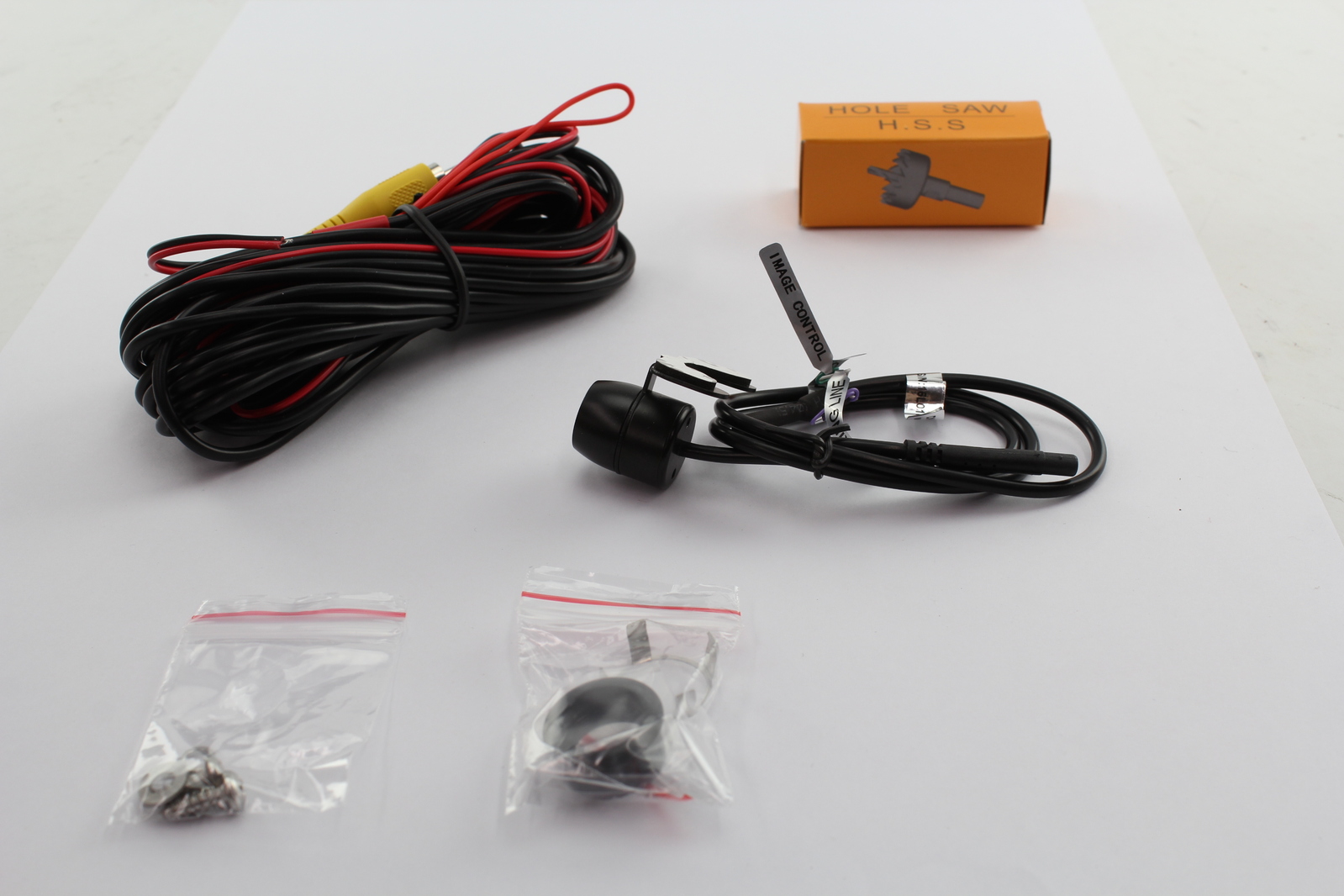

Camera also includes butterfly mount and flush mount and has a Waterproof IP68 rating.
Ideal for a wide range of vehicles wanting a safety solution. Rear, front or side mount applications.
Specifications:
Image Sensor: CMOS (PC3089)
Video System: PAL or NTSC (Selectable)
Scanning area: 4.80mm*3.73mm
Resolution: 756(H)*504(V)
Horizontal Resolution : 600 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =46.5dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | RCB170 |
| Barcode # | 9328974025159 |
| Brand | DNA AUDIO |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.080m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.001728000m3 |
| Unit Of Measure | ea |
