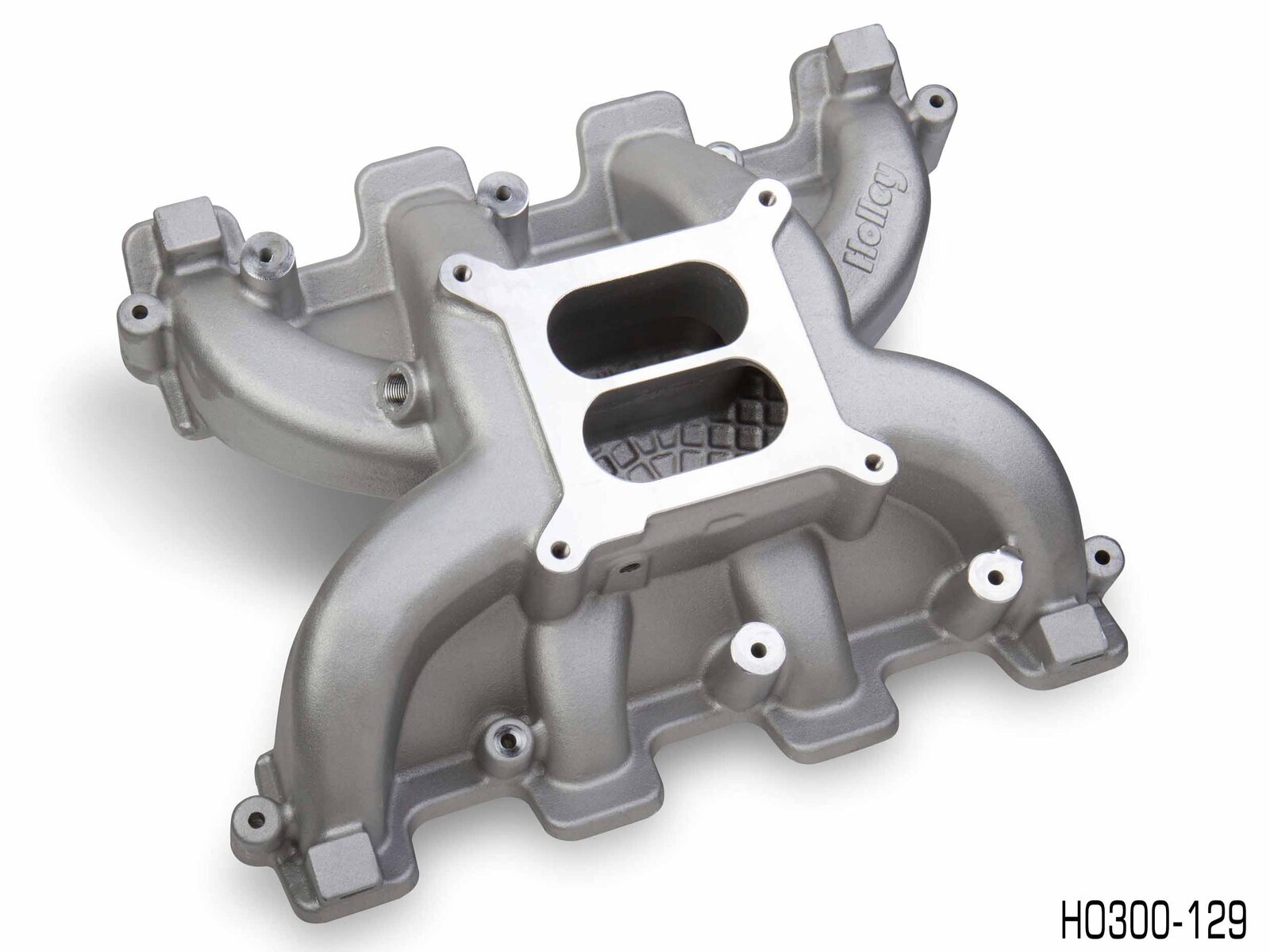

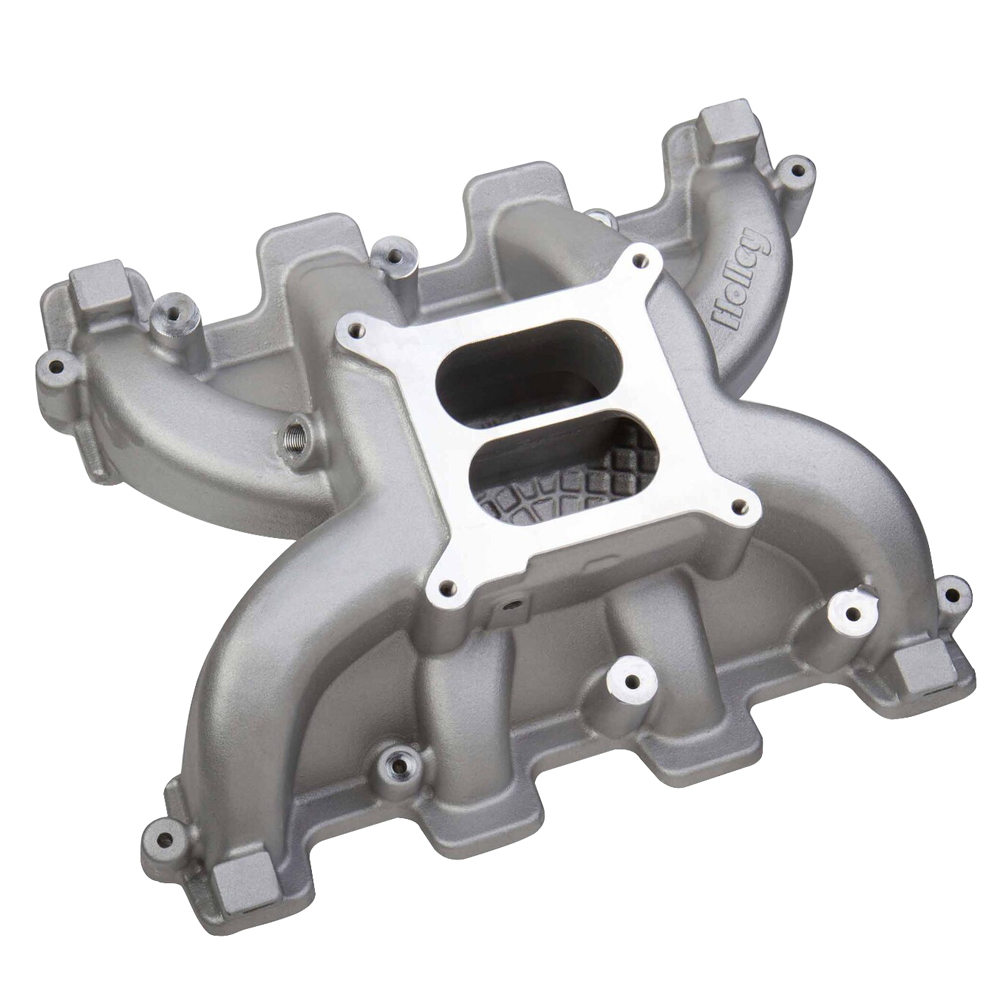

Holley HO300-129 Dual Plane Mid Rise Carby Intake Manifold for GM LS3 L92
Description
Holley Dual Plane Carbureted Intake GM LS3/L92
HO300-129
SOLD AS EACH
Got an LS engine to get running? Nothing is easier than bolting on a carburetor. Holley's dual plane carbureted intake for GM's LS engines will help you get on the streets quick!
Its dual plane design makes it perfect for low end torque, yet it still pulls all the way to 6,500 RPM! Our O-ring cylinder head mounting flange gaskets provide an OEM style seal and make installation a snap. Bolt one on today!
Features:
- 1500-6500 RPM power band
- 4150 square bore carb mounting flange
- Optimized runner layout and constant cross sectional area provide a broad torque curve
- Minimum carb flange height means it fits in vehicles with minimal or no hood modifications
- Great for carbureted or throttle body EFI street applications
- Cast aluminum construction and efficient casting design for light weight, consistent wall thicknesses and improved casting quality
- Weighs 14.56 lbs.

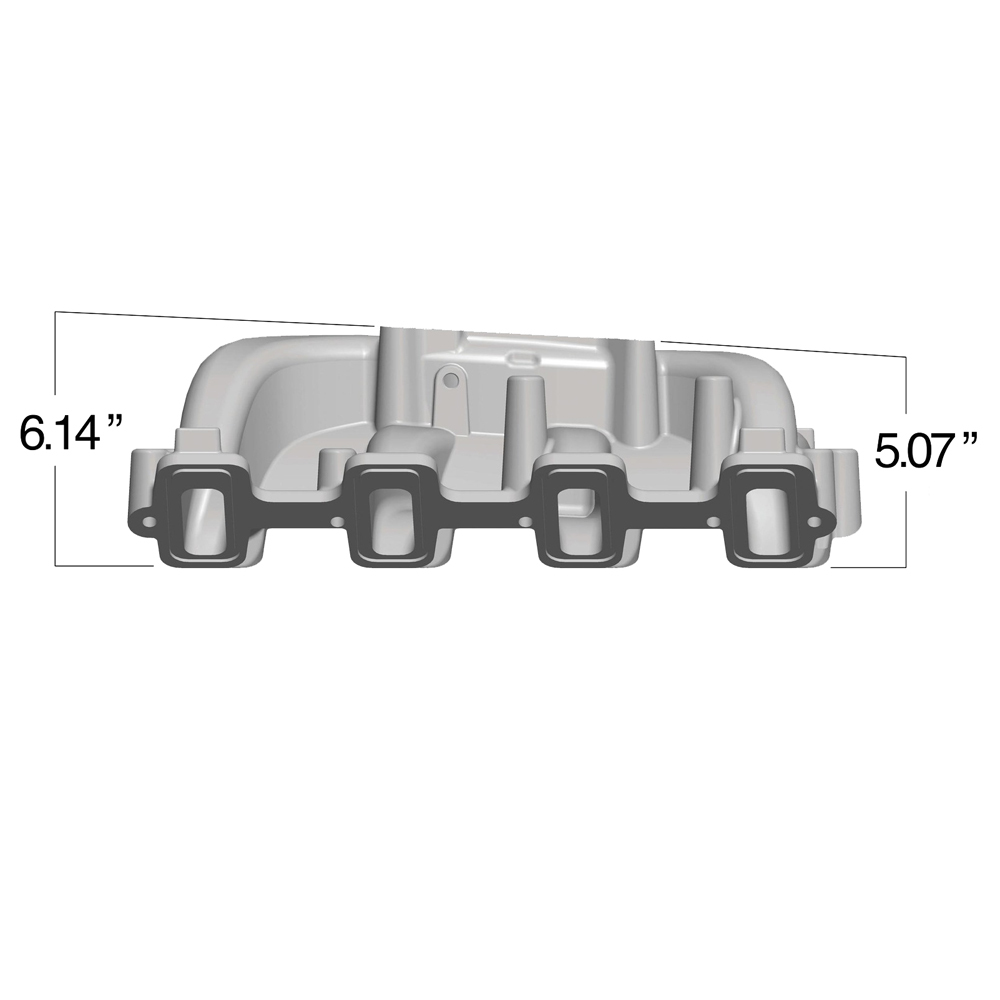

- Height (front) - 5.07" from front lifter valley cover to carb mounting flange
- Height (rear) - 6.14" from rear lifter valley cover to carb mounting flange
- Port size - 2.454" height x 1.09" wide
- Mounting flange gasket type - O-ring
- Includes Viton® O-rings - Viton® is a registered trademark of DuPont Performance Elastomers
Specs
- Basic Operating RPM Range 1500-6500 R3
- Brand Holley
- Carburetor Flange Square/4150
- Carburetor Studs Included No
- Category Filter Intake Manifolds
- Clearance Category Intake Manifolds
- Color Natural
- Construction Cast
- EGR Port No
- Emission Code 4
- Engine GM LS3/L92
- Finish Satin
- Flange Style 4150 Square Bore
- Front Height 5.07 inch
- Front Maximum Height 5.07 IN
- Fuel Injectors Included No
- Fuel Rail(s) Included No
- Fuel System Type Carb
- Gasket Or Seal Included No
- Grade Type Performance
- Intake Port Gasket(s) Included No
- Manifold Type Dual Plane
- Material Aluminum
- Nitrous Bung(s) Included No
- Plenum Finish Natural
- Product Type Intake Manifold
- Rear Height 6.14 inch
- Rear Maximum Height 6.14 IN
- Removable Runners No
- RPM Power Band 1500-6500 RPM
- Sale Category Air and Fuel Delivery
- Single Or Dual Plane Type Single Plane
- Throttle Body Included No
- Warranty Limited 90 Day
- UPC 090127687697
- Part Number 300-129
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | HO300-129 |
| Barcode # | 090127687697 |
| Brand | Holley |
| Shipping Weight | 12.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.400m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.096000000m3 |
