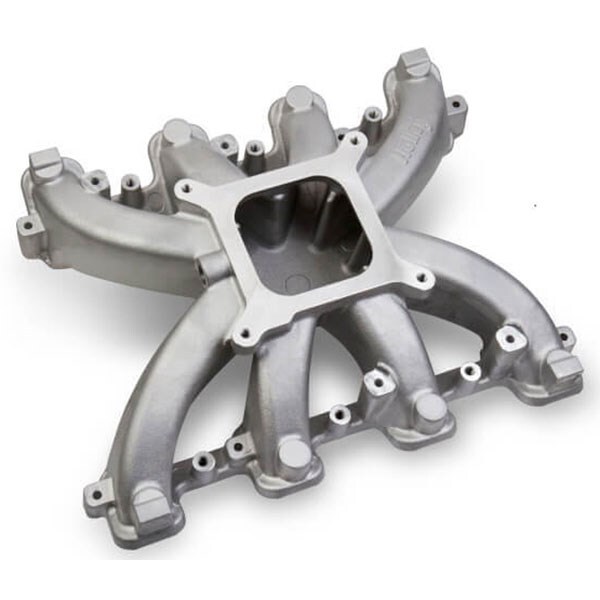

Holley HO300-131 Single Plane Mid Rise Carby Intake Manifold for GM LS3 L92
Description
Holley
LS3/L92 Single Plane Mid Rise Intake Manifold
Suit Single 4150/4160 Carburettors
HO300-131
SOLD AS EACH
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
Features:
- 2500-7000 RPM power band
- 4150 Square bore flange (accepts up to 1.75" diameter throttle bores)
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.

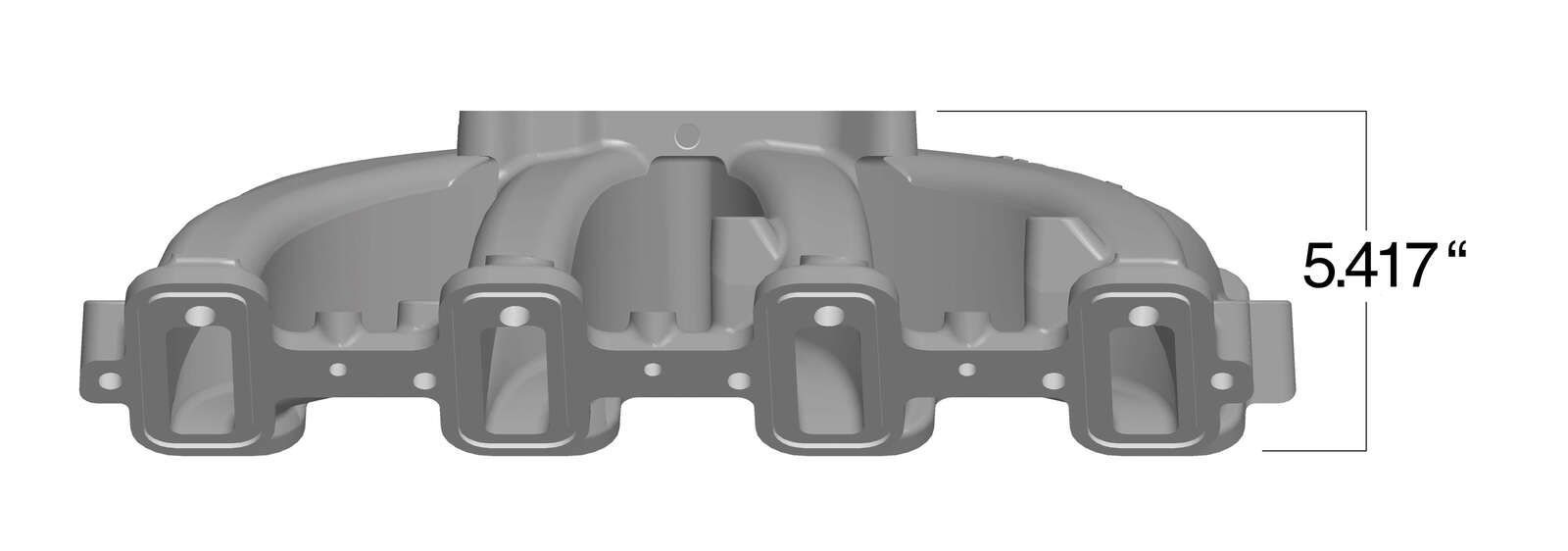

- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange
- Port size - 2.50" height x 1.15" wide
- Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
Specs
- Basic Operating RPM Range 2500-7000 R3
- Brand Holley
- Carburetor Flange Square/4150
- Carburetor Studs Included No
- Category Filter Intake Manifolds
- Clearance Category Intake Manifolds
- Color Natural
- Construction Cast
- EGR Port No
- Emission Code 3
- Engine GM LS3/L92
- Finish Silver
- Flange Style 4150 Square Bore
- Front Height 5.417 inch
- Front Maximum Height 5.417 IN
- Fuel Injectors Included No
- Fuel Rail(s) Included No
- Fuel System Type Carb
- Gasket Or Seal Included No
- Grade Type Performance
- Intake Port Gasket(s) Included No
- Manifold Type Single Plane
- Material Aluminum
- Nitrous Bung(s) Included No
- Plenum Finish Natural
- Product Type Intake Manifold
- Rear Height 5.417 inch
- Rear Maximum Height 5.417 IN
- Removable Runners No
- RPM Power Band 2500-7000 RPM
- Sale Category Air and Fuel Delivery
- Single Or Dual Plane Type Single Plane
- Throttle Body Included No
- Warranty Limited 90 Day
- UPC 090127687727
- Part Number 300-131
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | HO300-131 |
| Barcode # | 090127687727 |
| Brand | HOLLEY |
| Shipping Weight | 12.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.400m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.096000000m3 |
