Holley HO300-126 LS1 LS2 LS6 Mid Rise EFI Intake Manifold 92mm Inc Fuel Rails
Description
Holley

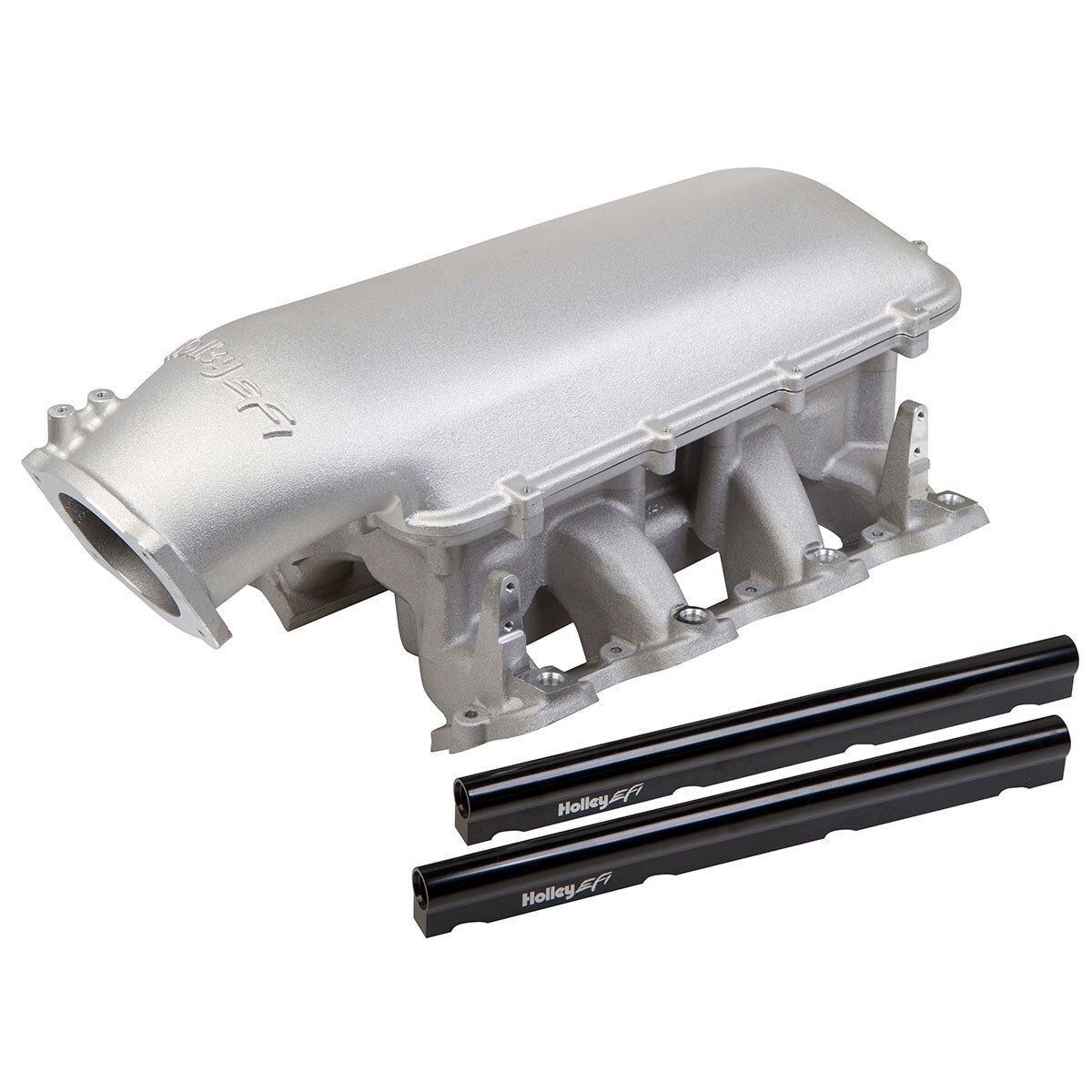

LS1/LS2/LS6 Mid-Rise Intake Manifold
Suit Single GM LS 92mm Throttle Body
HO300-126
SOLD AS EACH
The Modular Mid-Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid-Rise 2 x 4 intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or normally aspirated applications.

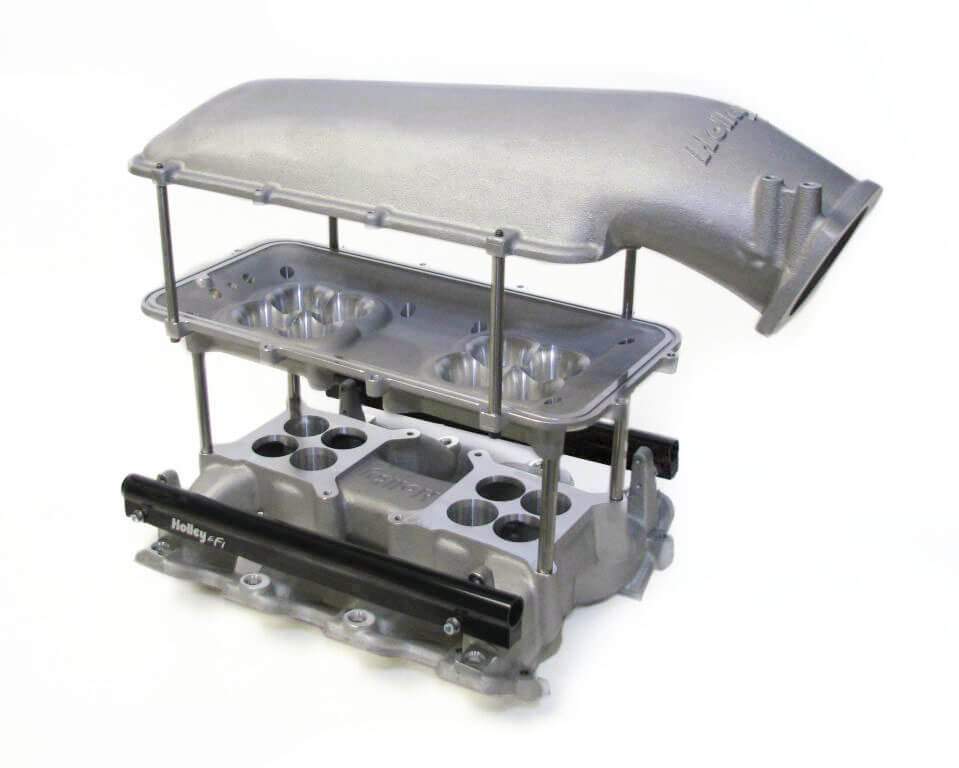

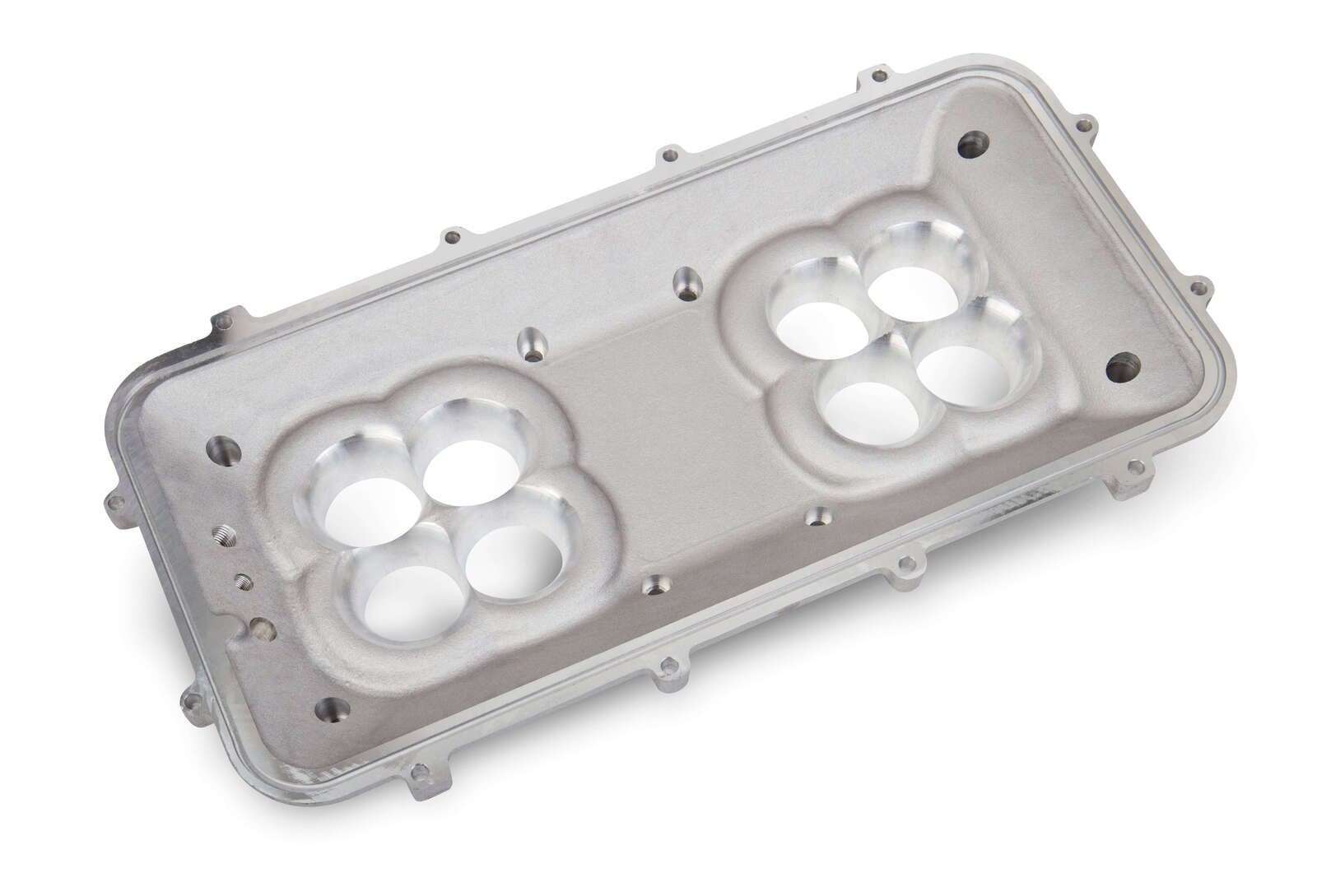

This manifold is modular, and the plenum adapter (PN 300-267) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems.

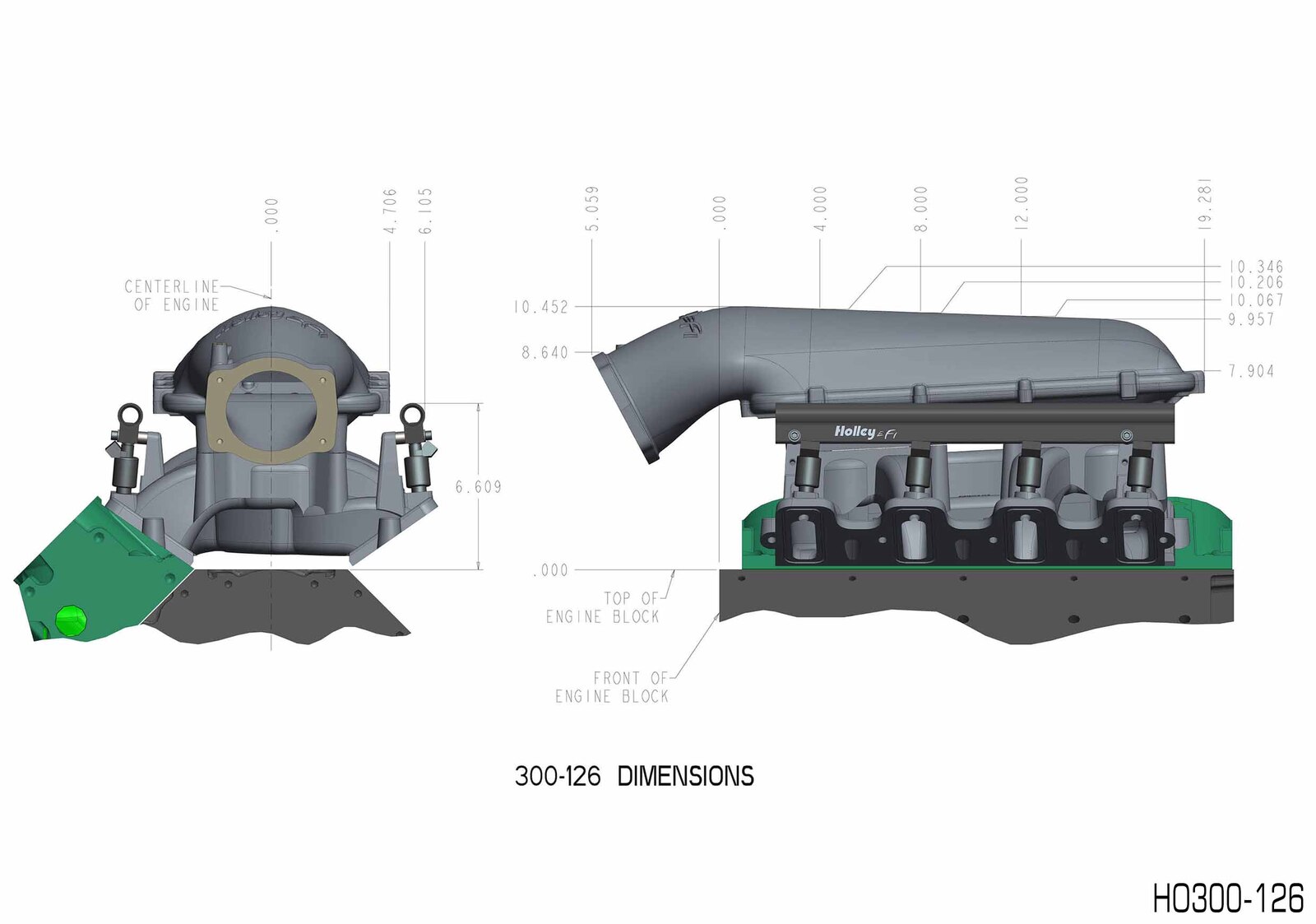

*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Features:
- Provides great performance to 6500 rpm for street/strip performance applications while providing the look of a racing EFI intake manifold
- Unique modular design allows the combination of a traditional dual-plane layout with an EFI manifold plenum to produce great mid-range torque without compromising top end power
- Great for supercharged or turbocharged engines
- Power band from 1500-6500 rpm
- May require an aftermarket hood for some vehicle applications.
- Cast aluminum construction
- Intended for use on all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads (recalibration of the ECU may be required when using this intake manifold design with OE ECU).
- 92MM EFI plenum top
- 95MM EFI plenum top
Specs
- Basic Operating RPM Range 2500-7000 RPM
- Brand Holley EFI
- Category Filter Intake Manifolds
- Clearance Category Intake Manifolds
- Color Silver
- Construction Cast
- EGR Port No
- Emission Code 4
- Engine GM LS1/LS2/LS6
- Finish Silver
- Flange Style EFI
- Front Height 10.44 inch
- Front Maximum Height 10.44 IN
- Fuel System Type EFI
- Grade Type Performance
- Intake Port Gasket(s) Included No
- Manifold Type Mid Rise
- Material Aluminum
- Nitrous Bung(s) Included No
- Plenum Finish Natural
- Product Type Intake Manifold
- Rear Height 9.99 inch
- Rear Maximum Height 9.99 IN
- Recommended Use Forced Induction
- Removable Runners No
- RPM Power Band 2500-7000 RPM
- Sale Category Air and Fuel Delivery
- Single Or Dual Plane Type Single Plane
- Throttle Body Bore Diameter 95 MM
- Throttle Body Included No
- Warranty Limited 90 Day
- UPC 090127682517
- Part Number 300-126
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | HO300-126 |
| Barcode # | 090127682517 |
| Brand | HOLLEY |
| Shipping Weight | 20.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.400m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.096000000m3 |
