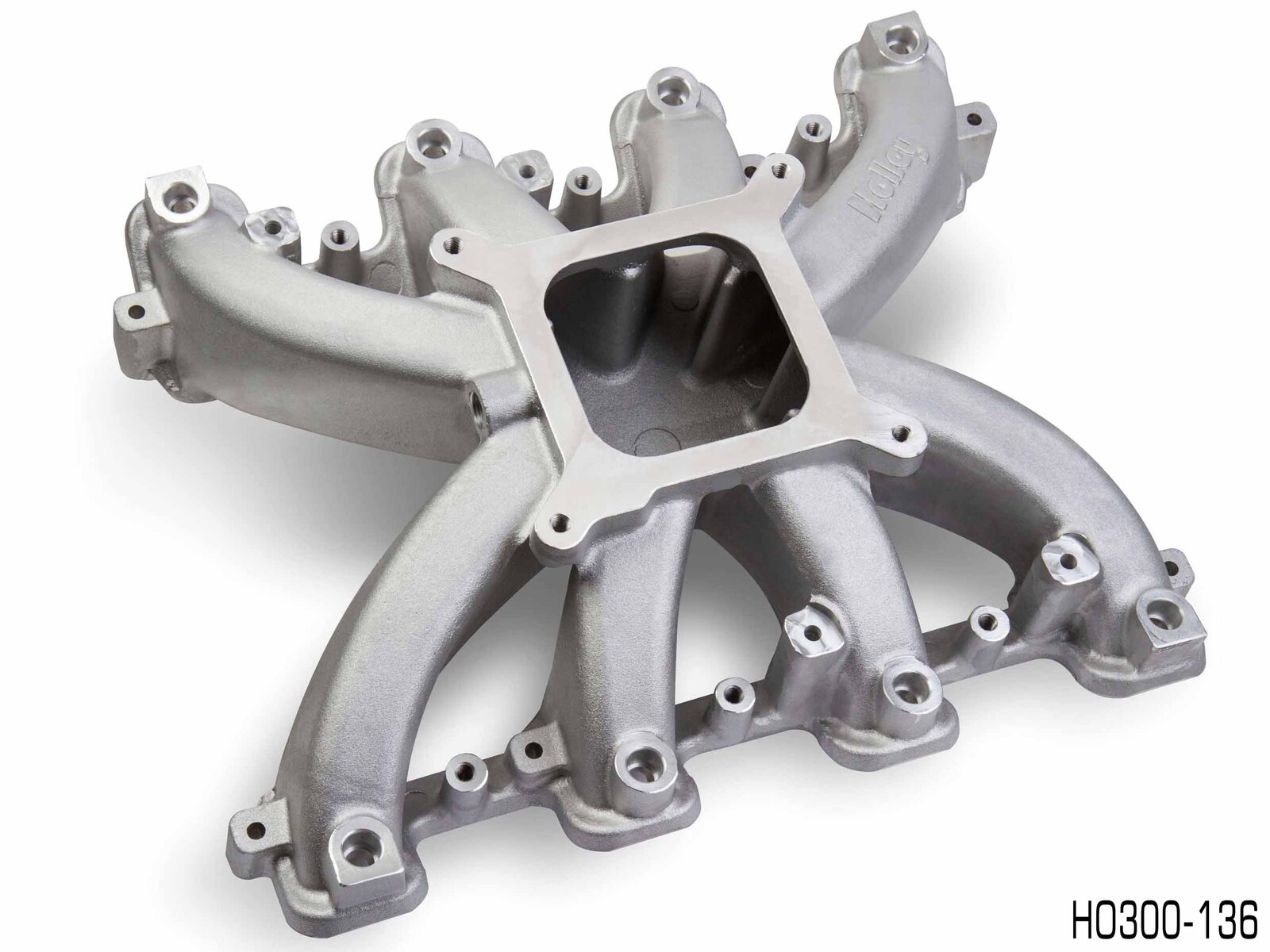

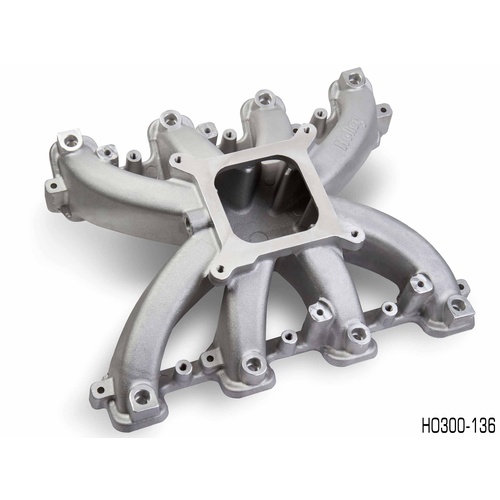

HOLLEY ALLOY SINGLE PLANE MID RISE EFI INTAKE MANIFOLD FOR GM LS3 L92 HO300-136
Description
HOLLEY SINGLE PLANE EFI INTAKE - GM LS3/L92
Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with
LS3/L92 style rectangular port cylinder heads
Features:
· 2500-7000 RPM power band
· 4150 Square bore flange
· Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
· Minimum carb flange height - fit in vehicles with minimum hood modifications
· Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
· Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
· Weight - 11.5 lbs.

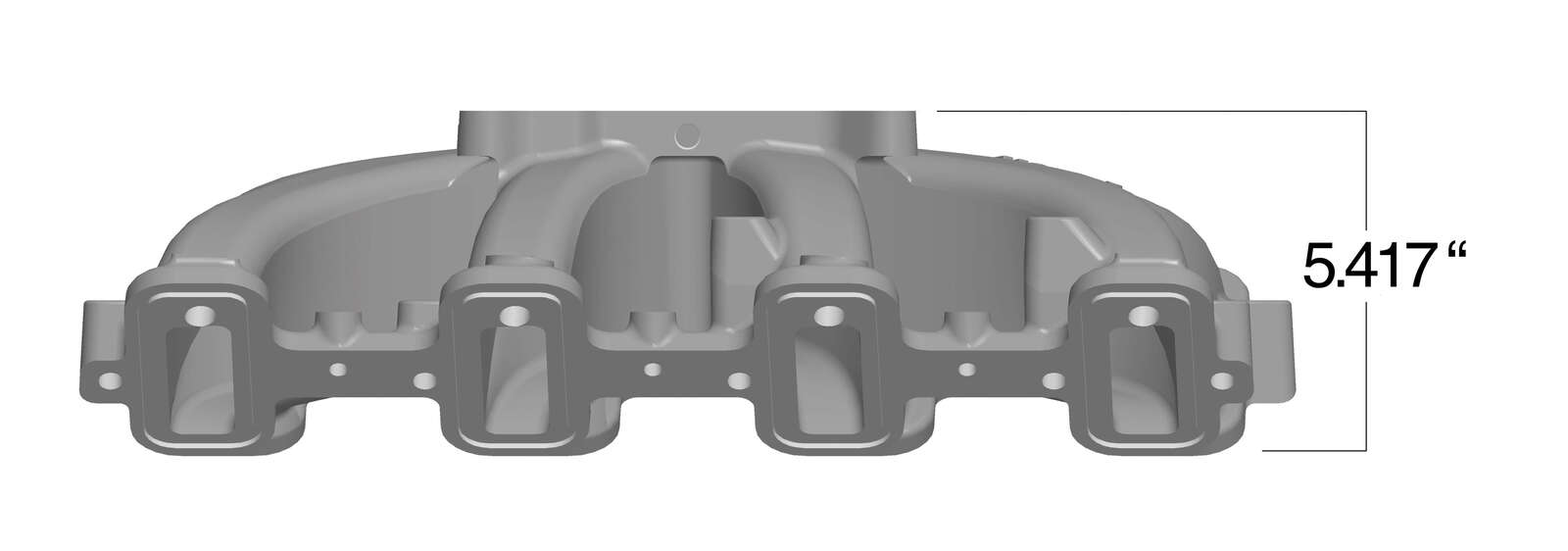

· Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
· Port size - 2.50" height x 1.15" wide
· Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
· This manifold will not work with factory fuel rails and requires the use of Holley Fuel Rail Kit 534-218
SPECIFICATIONS:
|
Brand |
Holley EFI |
|
Construction |
Cast |
|
Emission Code |
3 |
|
Engine |
GM LS3/L92 |
|
Finish |
Satin |
|
Flange Style |
4150 Square Bore |
|
Front Height |
5.417 inch |
|
Fuel System Type |
EFI |
|
Manifold Type |
Single Plane |
|
Product Type |
Manifold |
|
Rear Height |
5.417 inch |
|
RPM Power Band |
2500-7000 |
|
Warranty |
Limited 90 Day |
|
Part Number |
300-136 |
HO300-136
CUSTOMER SERVICE- 03 9356 0173
YES WE CAN COMBINE SHIPPING
(CAN ALSO PICK UP FROM OUR NORTH SUNSHINE DEPOT)
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | HO300-136 |
| Barcode # | 901276877412 |
| Brand | HOLLEY |
| Shipping Weight | 12.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.400m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.096000000m3 |
