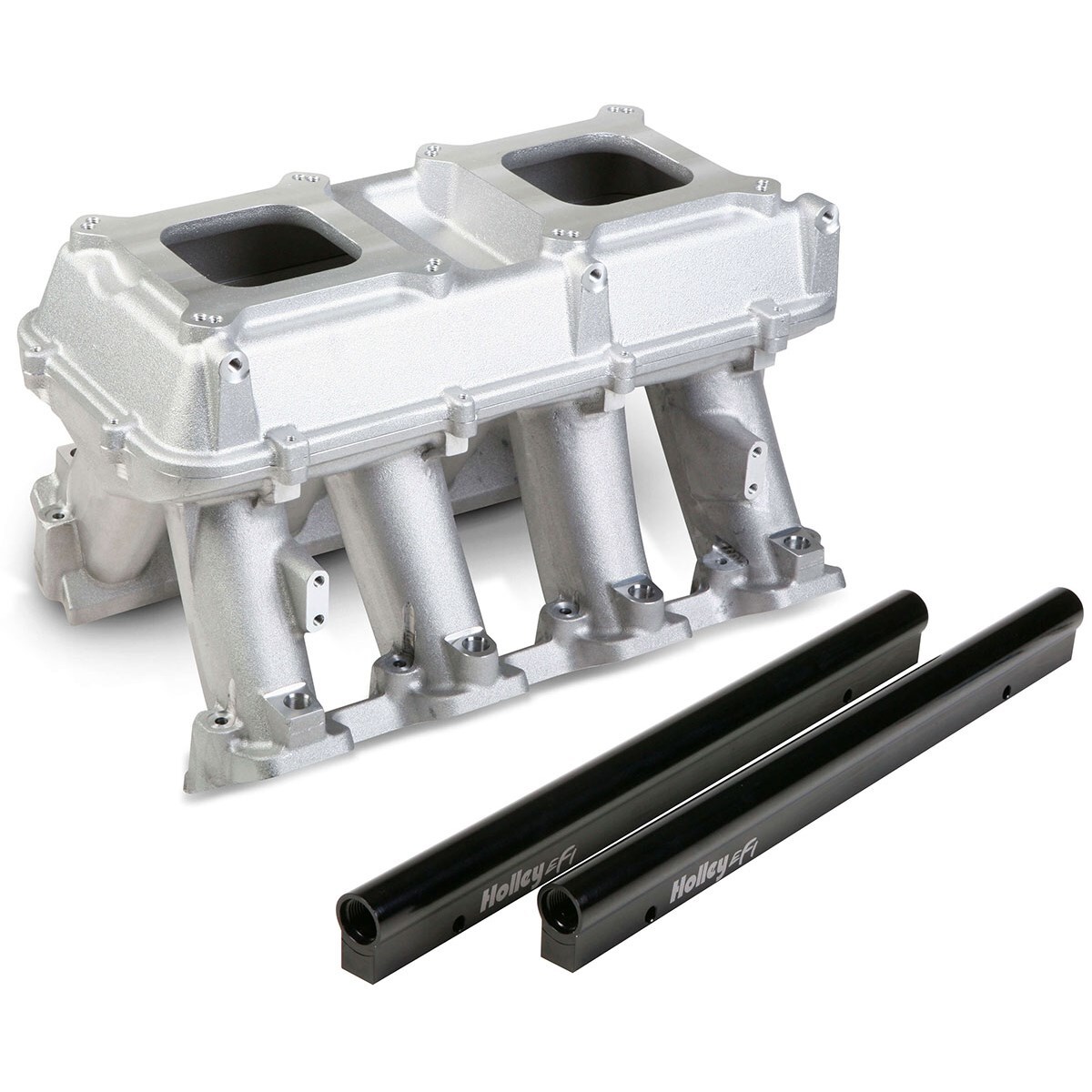

Holley HO300-115 Hi Ram EFI Intake Manifold + Fuel Rails for GM LS3 L92 V8
Description
Holley
LS3/L92 Hi-Ram Intake Manifold
Suit Dual 4150 Sideways Or Inline 4BBL 1000cfm EFI Throttle Body
HO300-115
SOLD AS EACH
The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
• EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
• Cast aluminum construction.
• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
Features:

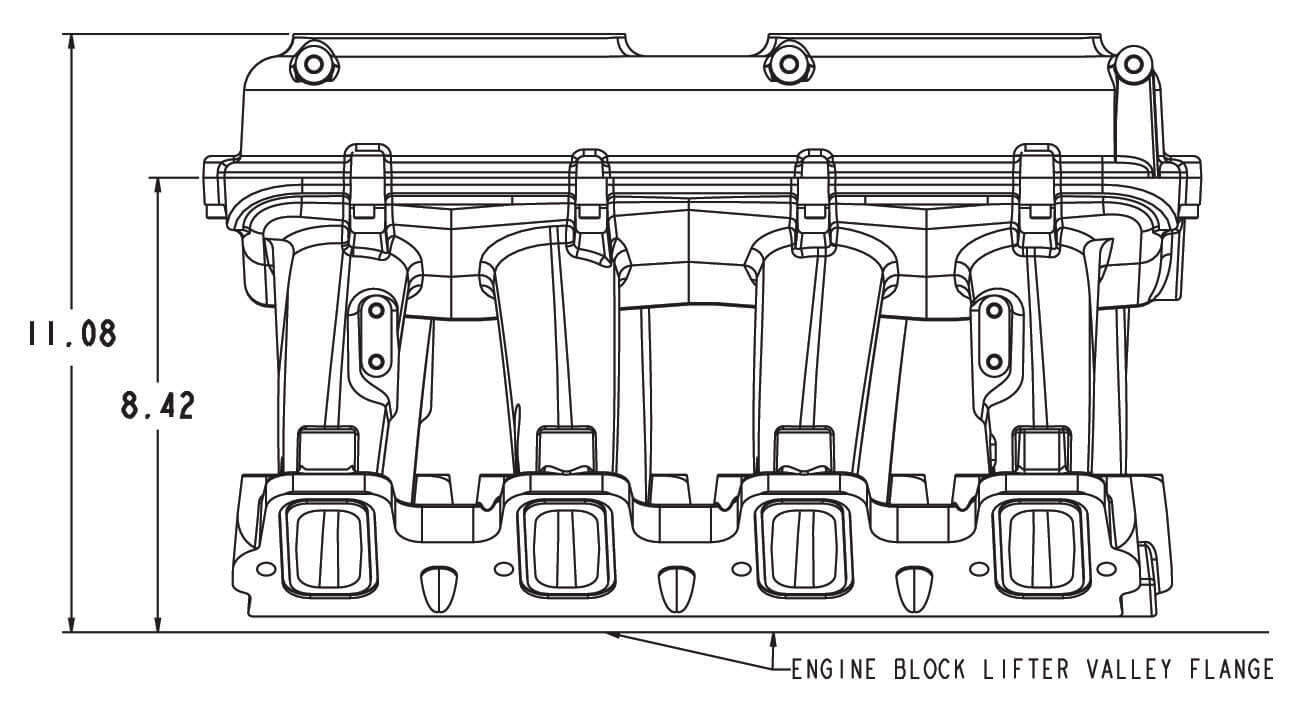

- Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block.
- Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
- Port Size – 2.49” Height x 1.21” Wide
- Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
Specs
- Basic Operating RPM Range 3500-8000 RPM
- Brand Holley EFI
- Carburetor Flange Square/4150
- Category Filter Intake Manifolds
- Clearance Category Intake Manifolds
- Color Natural
- Construction Cast
- EGR Port No
- Emission Code 4
- Engine GM LS3/L92
- Finish Silver
- Flange Style 4150 Square Bore
- Front Height 11.08 inch
- Front Maximum Height 11.08 IN
- Fuel Injectors Included No
- Fuel Rail(s) Included Yes
- Fuel System Type EFI
- Grade Type Performance
- Intake Port Gasket(s) Included No
- Manifold Type Hi-Ram
- Material Aluminum
- Nitrous Bung(s) Included No
- Plenum Finish Natural
- Product Type Intake Manifold
- Rear Height 11.08 inch
- Rear Maximum Height 11.08 IN
- Removable Runners No
- Removable Top/Lid Yes
- RPM Power Band 3500-8000 RPM
- Single Or Dual Plane Type Single Plane
- Throttle Body Included No
- Warranty Limited 90 Day
- UPC 090127670712
- Part Number 300-115
