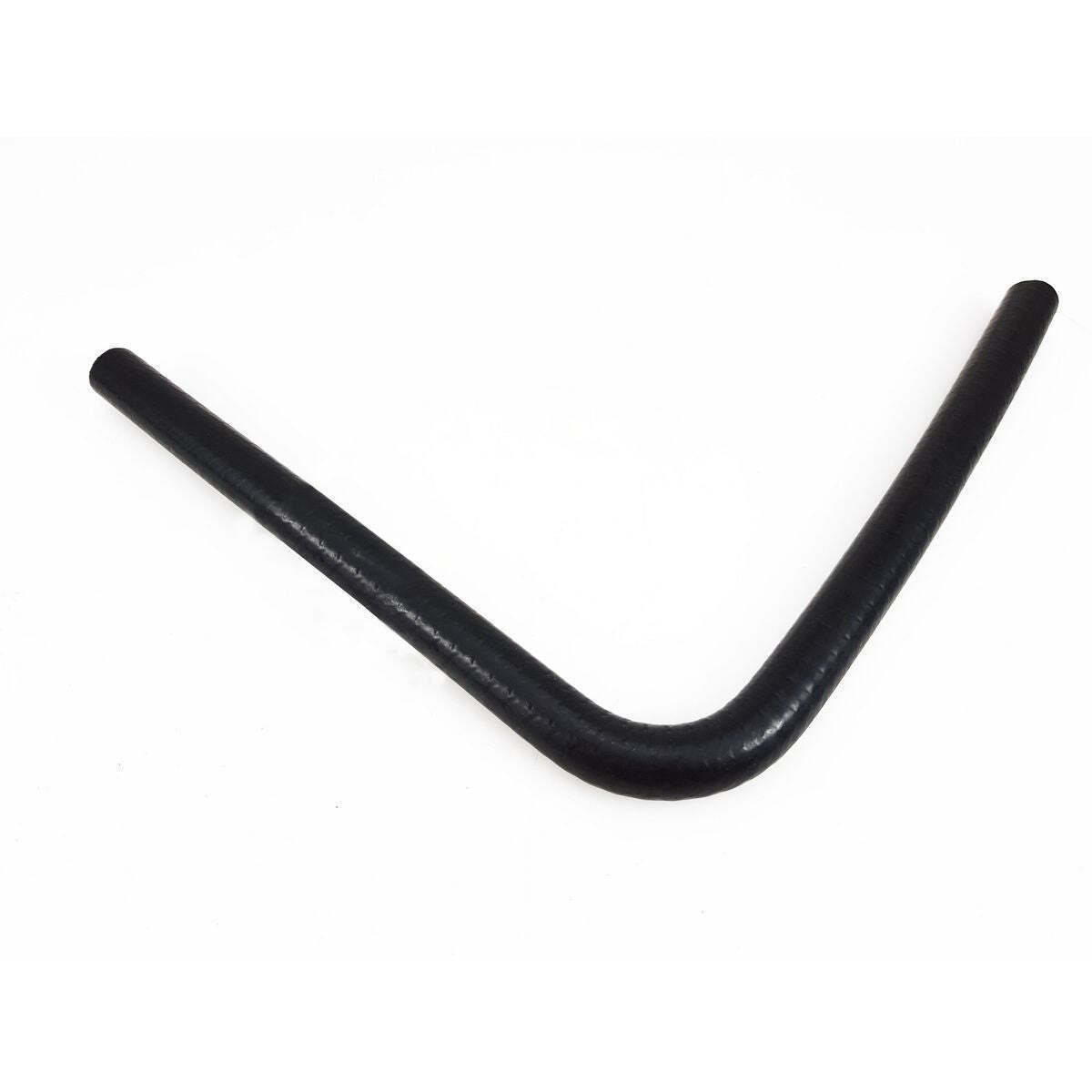

Mackay UHB16-300N 90 Degree Bend Universal Fuel Oil Hose 16mm x 300mm
Description
Mackay 90 Degree Bend Universal Fuel Or Oil Hose
UHB16-300N
SOLD AS EACH
16mm inner diameter
(For Fuel or oil system only)
- 90 Universal Hose Bend - Fuel or Oil – 16mm (5/8") Id – 300mm x 300mm Arm Lengths
45° & 90° UNIVERSAL HOSE BENDS - FUEL & OIL
The 45° & 90° moulded Fuel & Oil hoses use two constructions depending on size.
Sizes 8mm to 19mm ID are suitable for low pressure fuel applications and are manufactured using a Nitrile
(NBR) rubber tube, lock-stitch knitted Polyester fibre reinforcement, with an oil resistant Hypalon® (CSM)
rubber outer cover for maximum heat and ozone protection.
Sizes 25mm to 63mm ID are suitable for fuel filler and turbo intercooler applications and are
manufactured with an OE Grade Nitrile/PVC (NBR/PVC) blended rubber tube and cover for Fuel,
Oil and ozone resistance, with a knitted high tensile strength Para-Aramid fibre for maximum
burst protection.
Both constructions are suitable for use with leaded and unleaded petrol, Ethanol blended
fuels up to E85, Diesel & Biodiesel fuels, lubricating oil as well as crankcase and fuel
vapour applications.
Exceeds Fuel Hose Specification SAE J30R6
Working Temperature Range -34°C to 100°C (-29°F to 212°F)
ATTENTION: Some sizes are non-stocked and made to order, minimum order quantities may apply.
CAUTION: This hose is not suitable for fuel injection, in-tank fuel submersion, coolant, brake fluid or
marine applications.
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | UHB16-300N |
| Barcode # | 9313699705264 |
| Brand | MACKAY RUBBER |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.060m |
| Shipping Length | 0.350m |
| Shipping Cubic | 0.003780000m3 |
| Unit Of Measure | ea |
