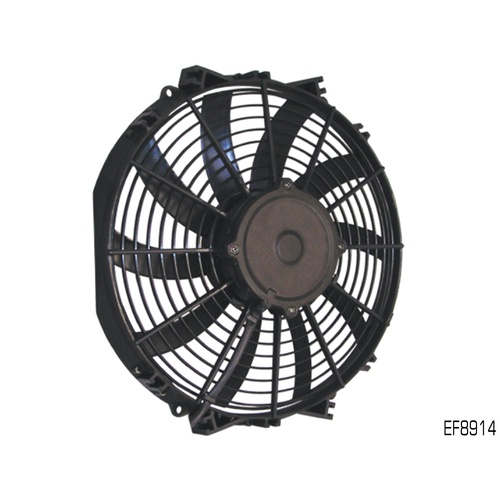

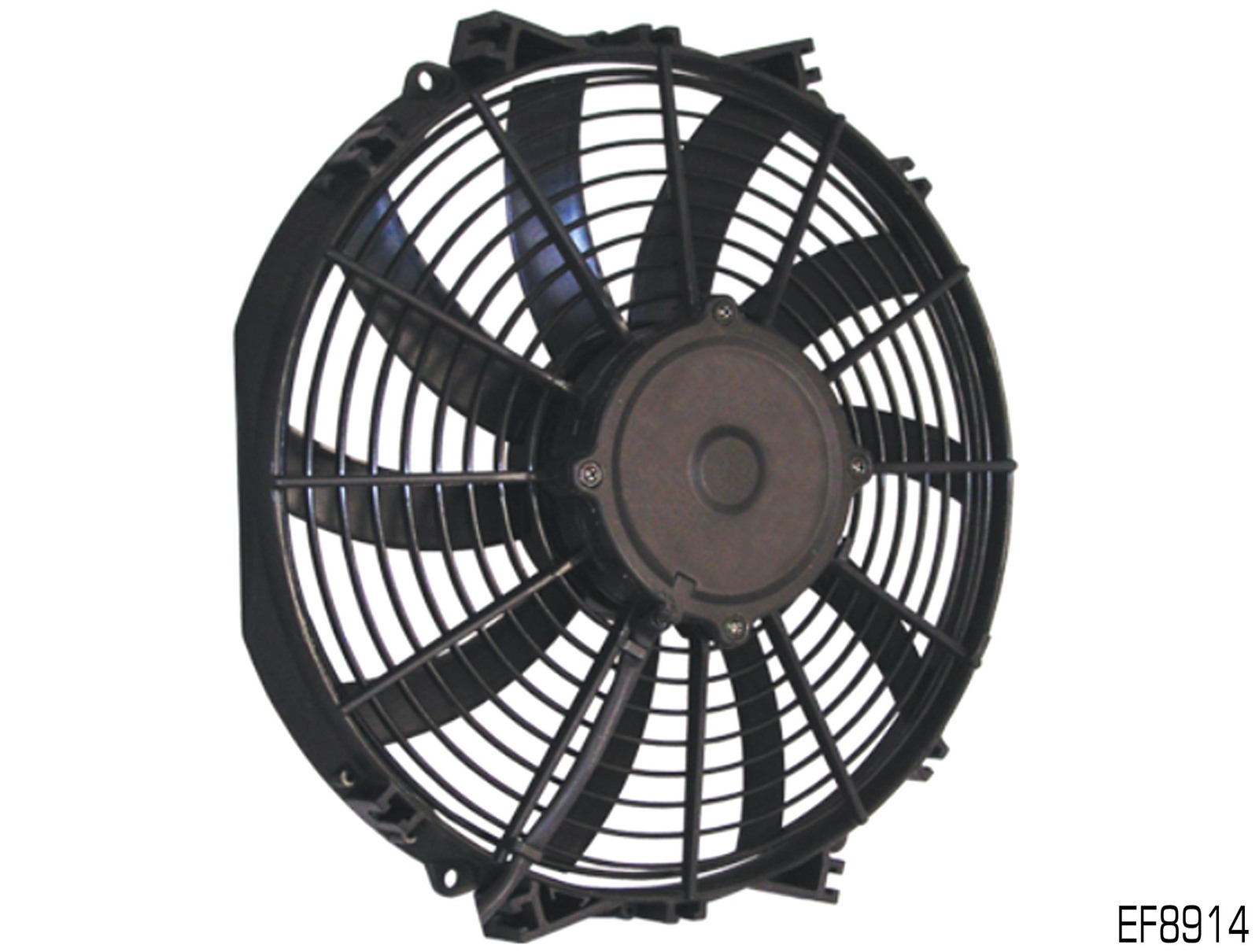

MARADYNE 14" THERMO FAN S-BLADE 12V 160W MOTOR LOW PROFILE - REVERSIBLE EF8914

MARADYNE

“S” BLADE FAN WITH 160 WATT MOTOR.

14” DIA, 12Volt low profile, reversible



·        Lowest profile high performance reversible on the market

·        Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68

·        Quiet, reversible S-blade design – works as a puller or pusher fan (ships as a puller)

·        All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit

·        Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger



  SPECIFICATIONS:

MOTOR: 160w

CURRENT DRAW: 10.1

CFM @ 0 in. STATIC: 1,555

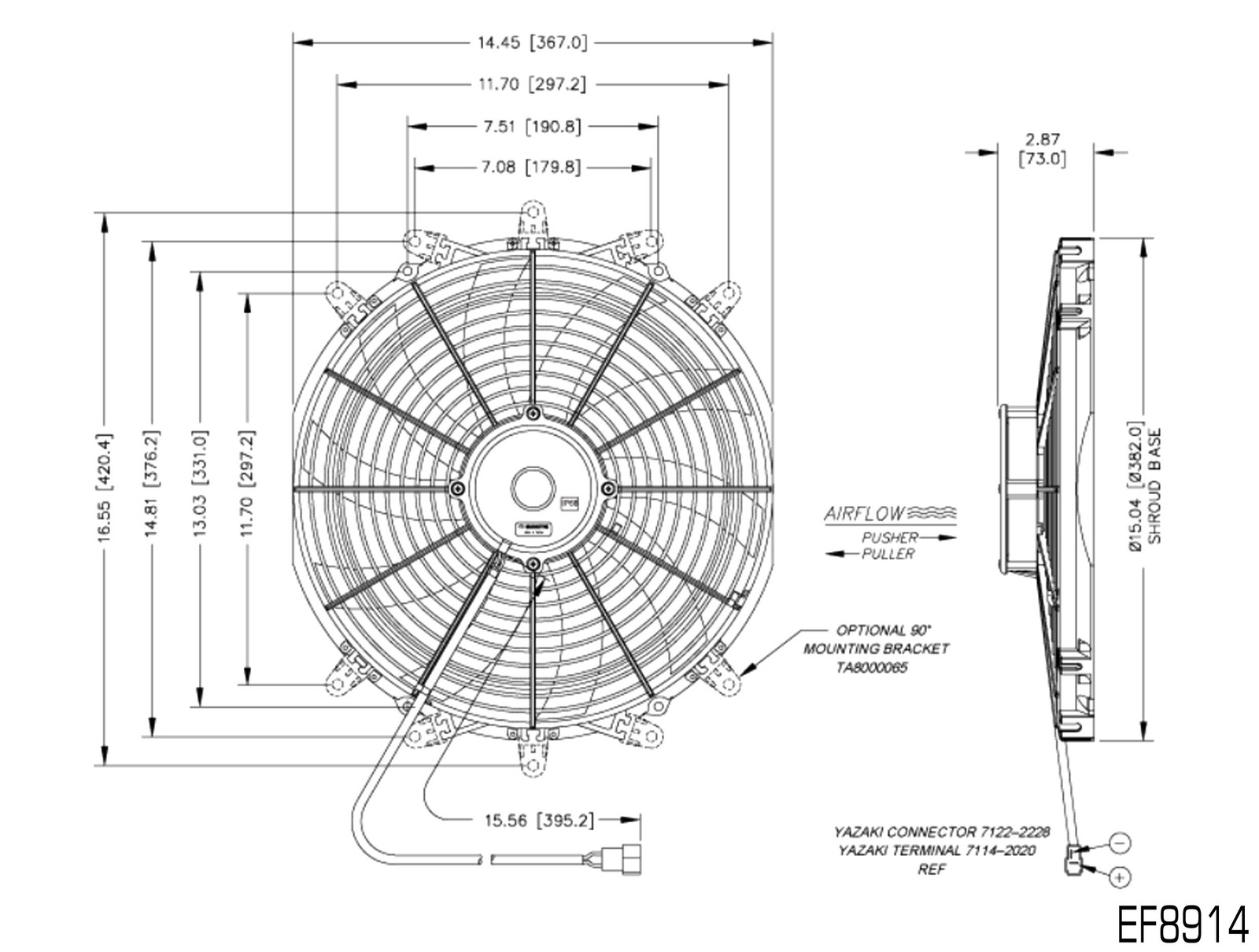

DEPTH: 2.87 in.



RECOMMENDED WIRE HARNESSES & PARTS (SOLD SEPARATELY)

MFA100 (adjustable thermostat)

MFA101 (A/C relay)

MFA102 (185° temperature switch)

MFA103 (195° temperature switch)

Optional brackets (sold separately)

MFA104 (metal bracket strips)

MFA105 (aluminium brackets)



MARADYNE® High Performance Fans is a brand name owned by DCM Manufacturing, a wholly-owned subsidiary of Dreison International, Inc.

DCM Manufacturing manufactures and sells accessories and components serving the off-road equipment,

agricultural machinery, heavy-duty truck, automotive, bus, RV, marine and military markets.



Designing Maximum-Performance Electric Cooling Fans

A well-designed electric radiator cooling fan is critical to prevent engine overheating in a variety of demanding driving conditions.

The heat generated in stop-and-go-driving, when racing, and from hot weather, can kill engines. Electric cooling fans will provide

the airflow needed to dissipate excess engine heat with the least impact on horsepower and fuel economy.

Without airflow, a radiator can become simply a holding tank for hot coolant.



EF8914

MARADYNE# M146K

SOLD AS EACH
