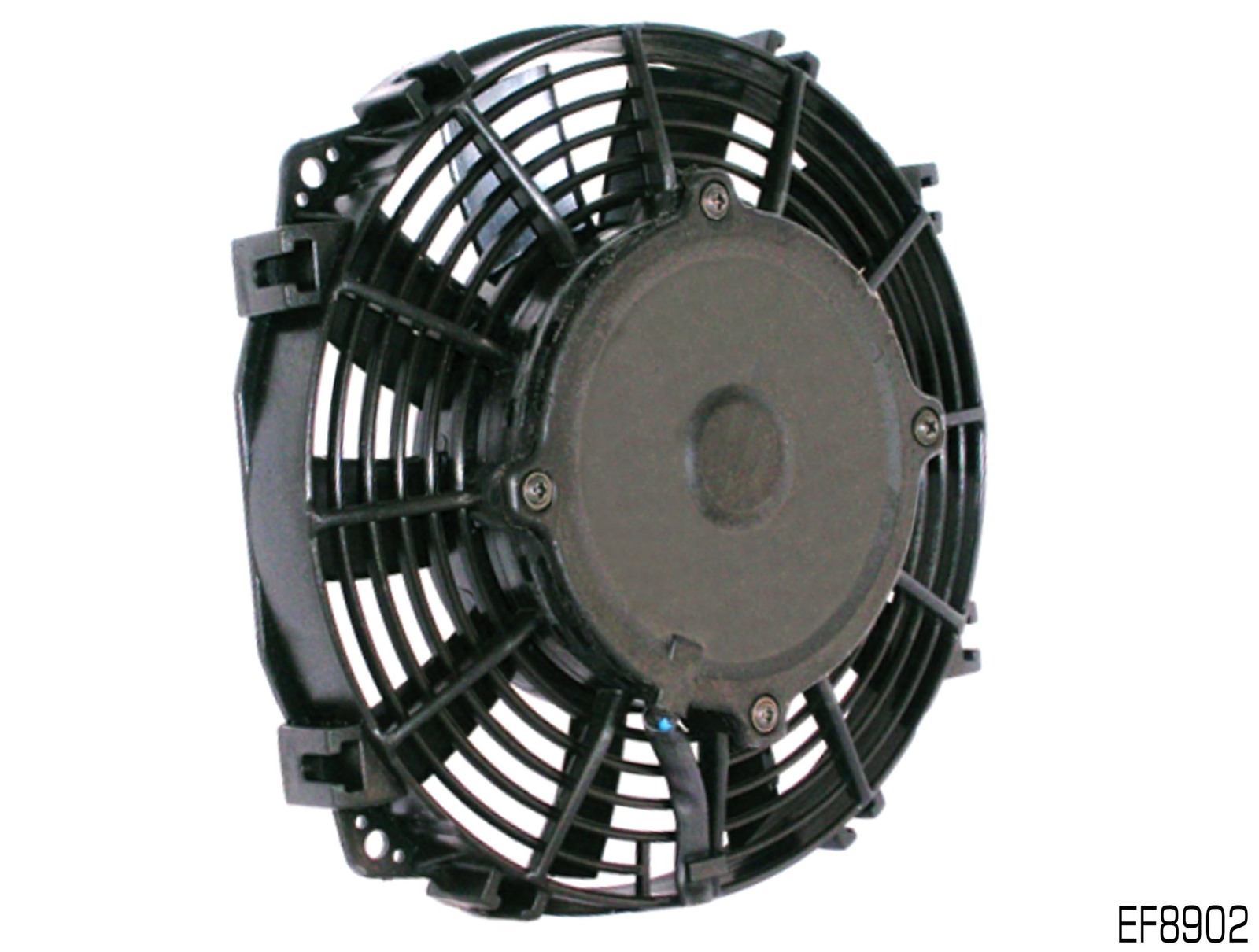

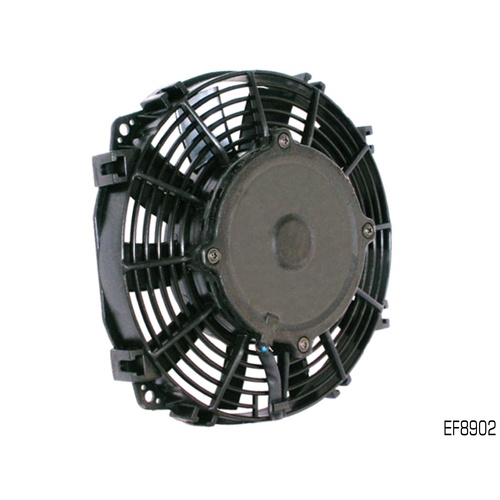

MARADYNE 8" THERMO FAN S-BLADE 12V 130W MOTOR LOW PROFILE - REVERSIBLE EF8902

MARADYNE

“S” BLADE FAN WITH 130 WATT MOTOR.

8” DIA, 12Volt - low profile, reversible

Lowest profile high performance reversible on the market

Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68

Quiet, reversible S-blade design – works as a puller or pusher fan (ships as a puller)

All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit

Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger

Optional bracket (sold separately)

SPECIFICATIONS:

MOTOR: 130w

CURRENT DRAW: 8.1

CFM @ 0 in. STATIC: 540

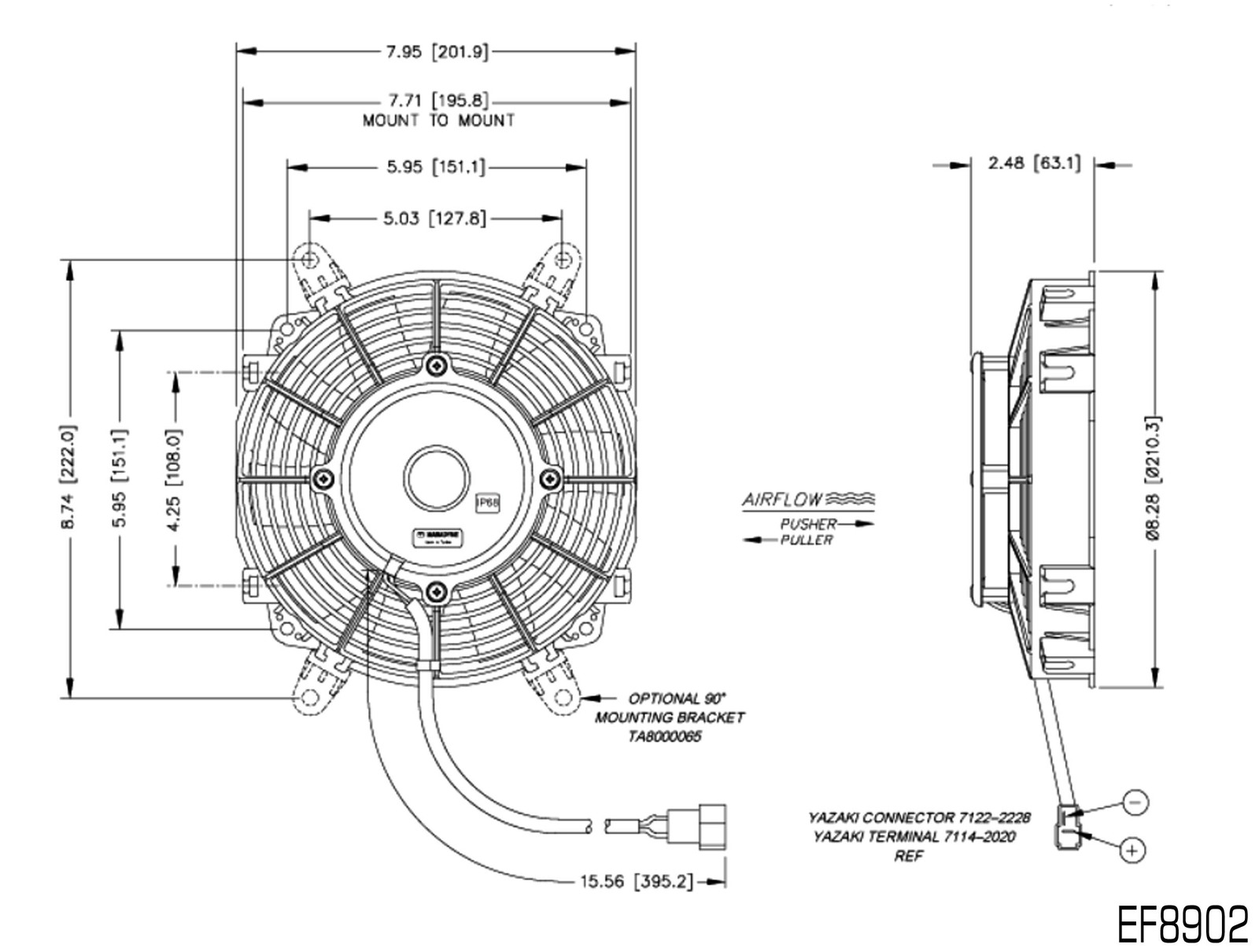

DEPTH: 2.48 in.

MARADYNE® High Performance Fans is a brand name owned by DCM Manufacturing, a wholly-owned subsidiary of Dreison International, Inc.

DCM Manufacturing manufactures and sells accessories and components serving the off-road equipment,

agricultural machinery, heavy-duty truck, automotive, bus, RV, marine and military markets.

Designing Maximum-Performance Electric Cooling Fans

A well-designed electric radiator cooling fan is critical to prevent engine overheating in a variety of demanding driving conditions.

The heat generated in stop-and-go-driving, when racing, and from hot weather, can kill engines. Electric cooling fans will provide

the airflow needed to dissipate excess engine heat with the least impact on horsepower and fuel economy.

Without airflow, a radiator can become simply a holding tank for hot coolant.

EF8902

MARADYNE# M083K

SOLD AS EACH
