MSD 8207 BLASTER SS COIL PERFECT FOR MSD 6 SERIES & ELECTRONIC IGNITION SYSTEMS

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

MSD

BLASTER SS COIL

MSD8207

SOLD AS EACH

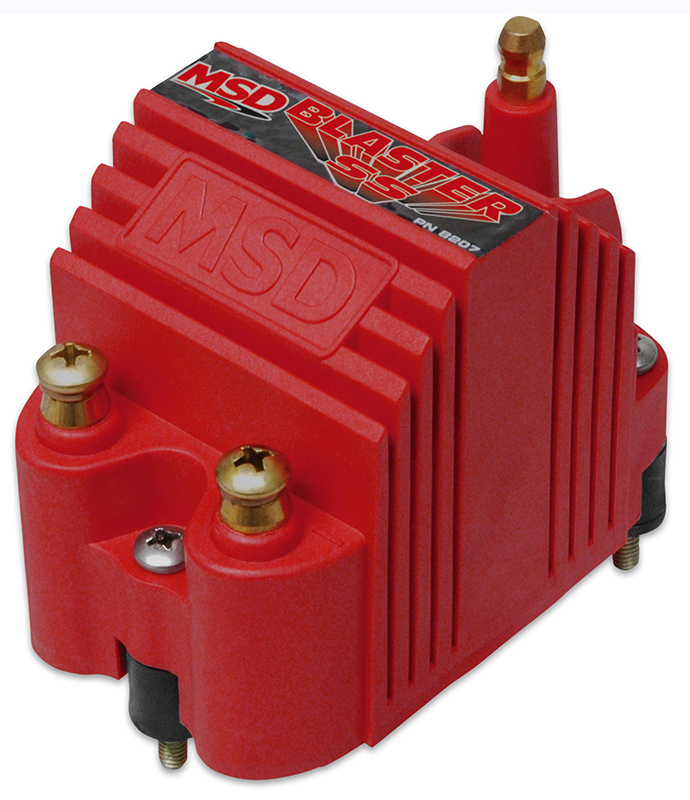

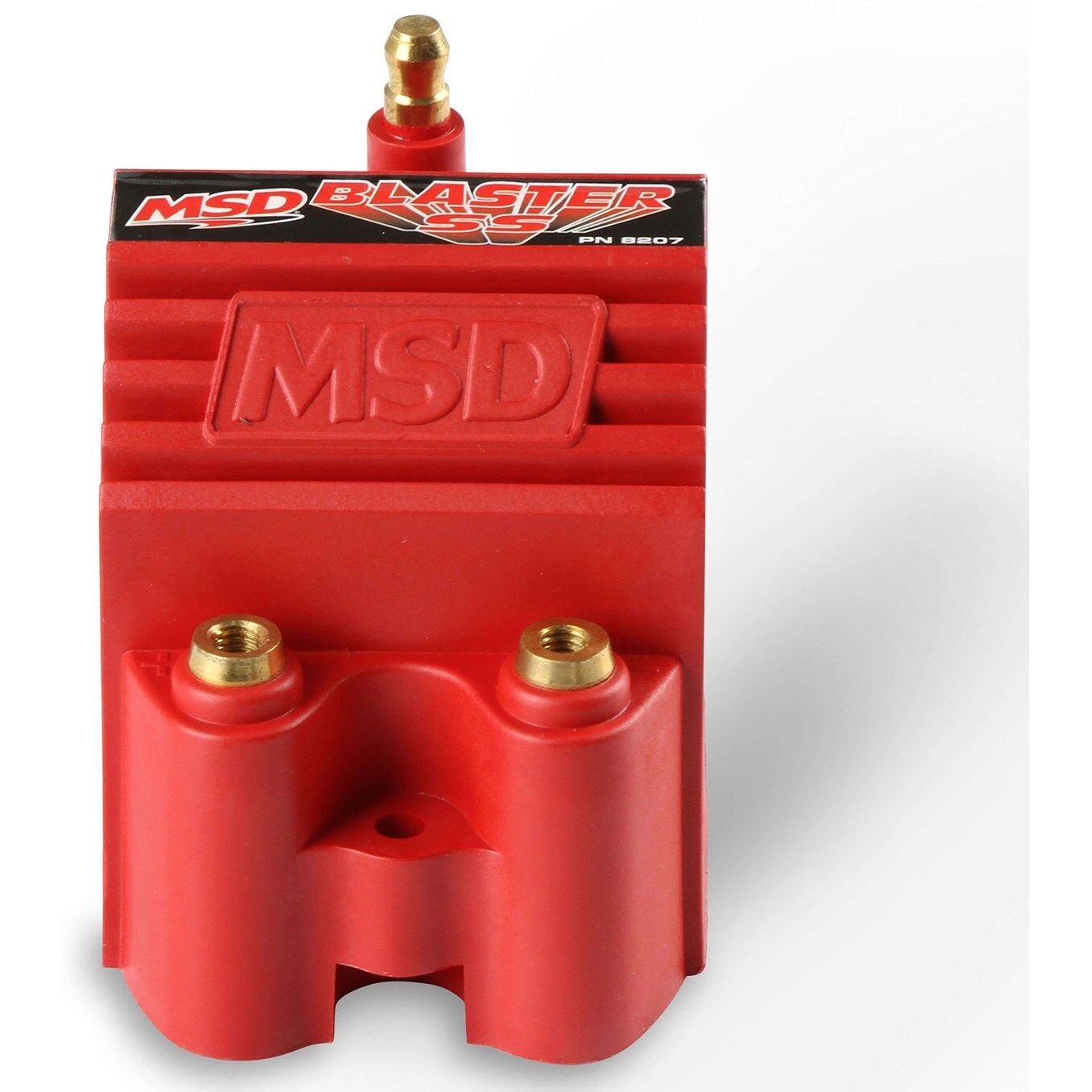

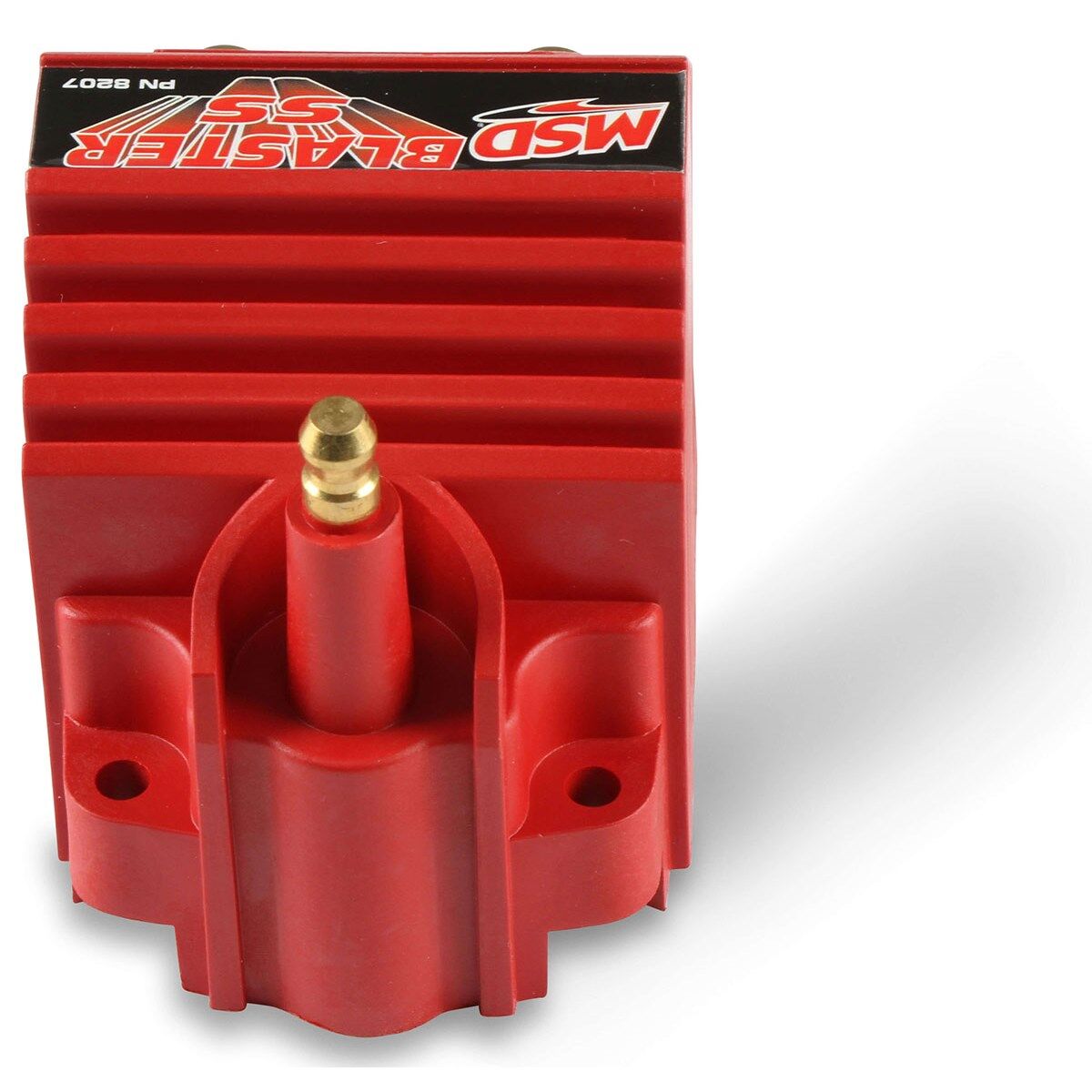

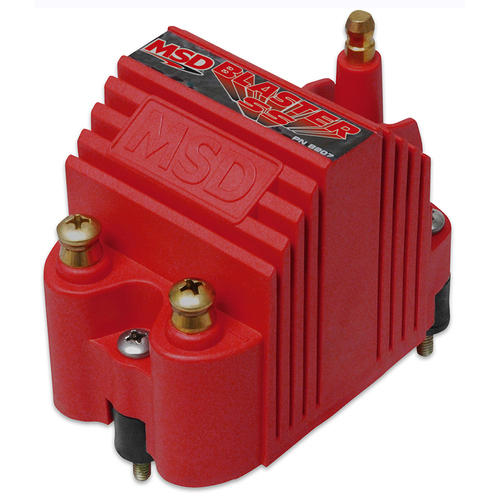

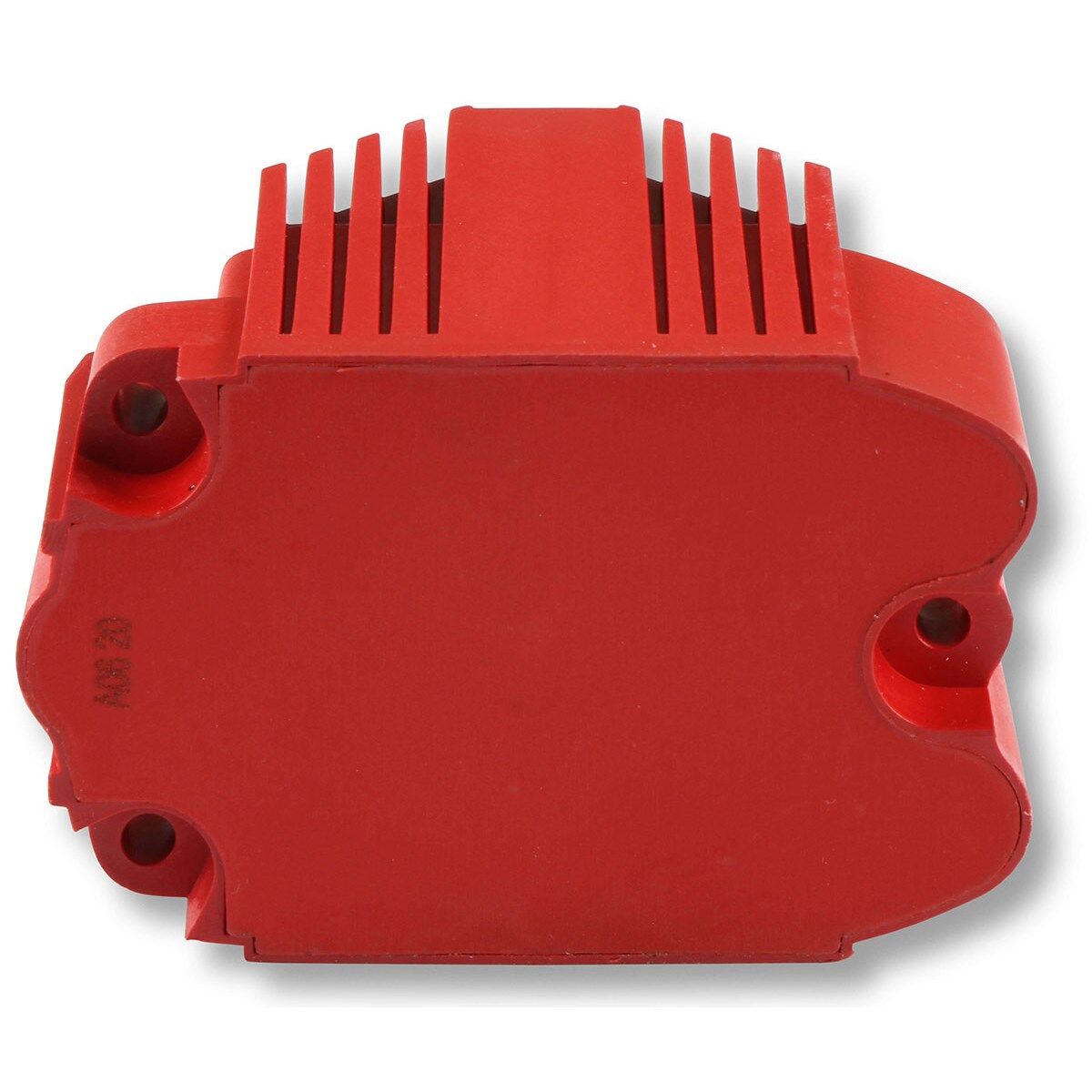

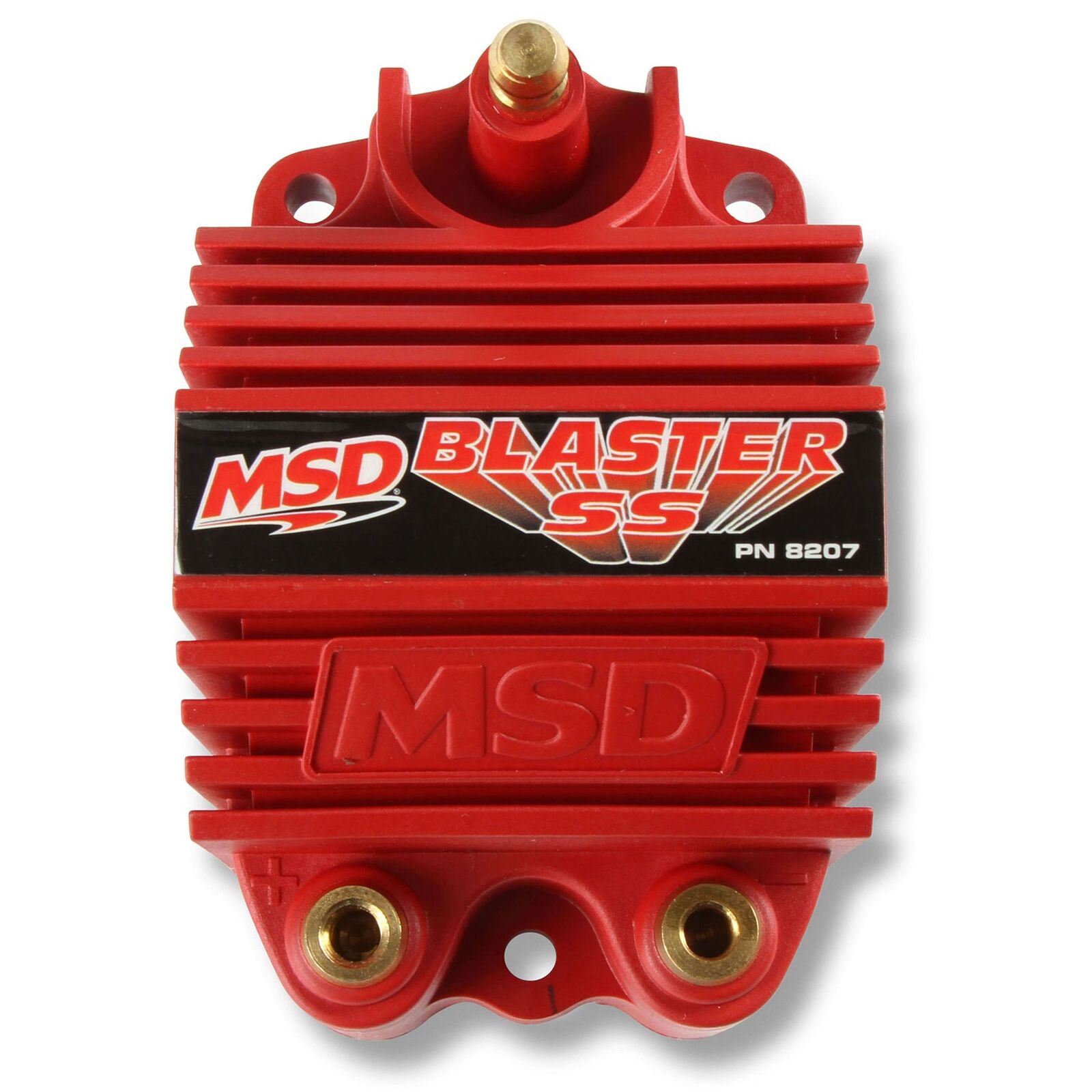

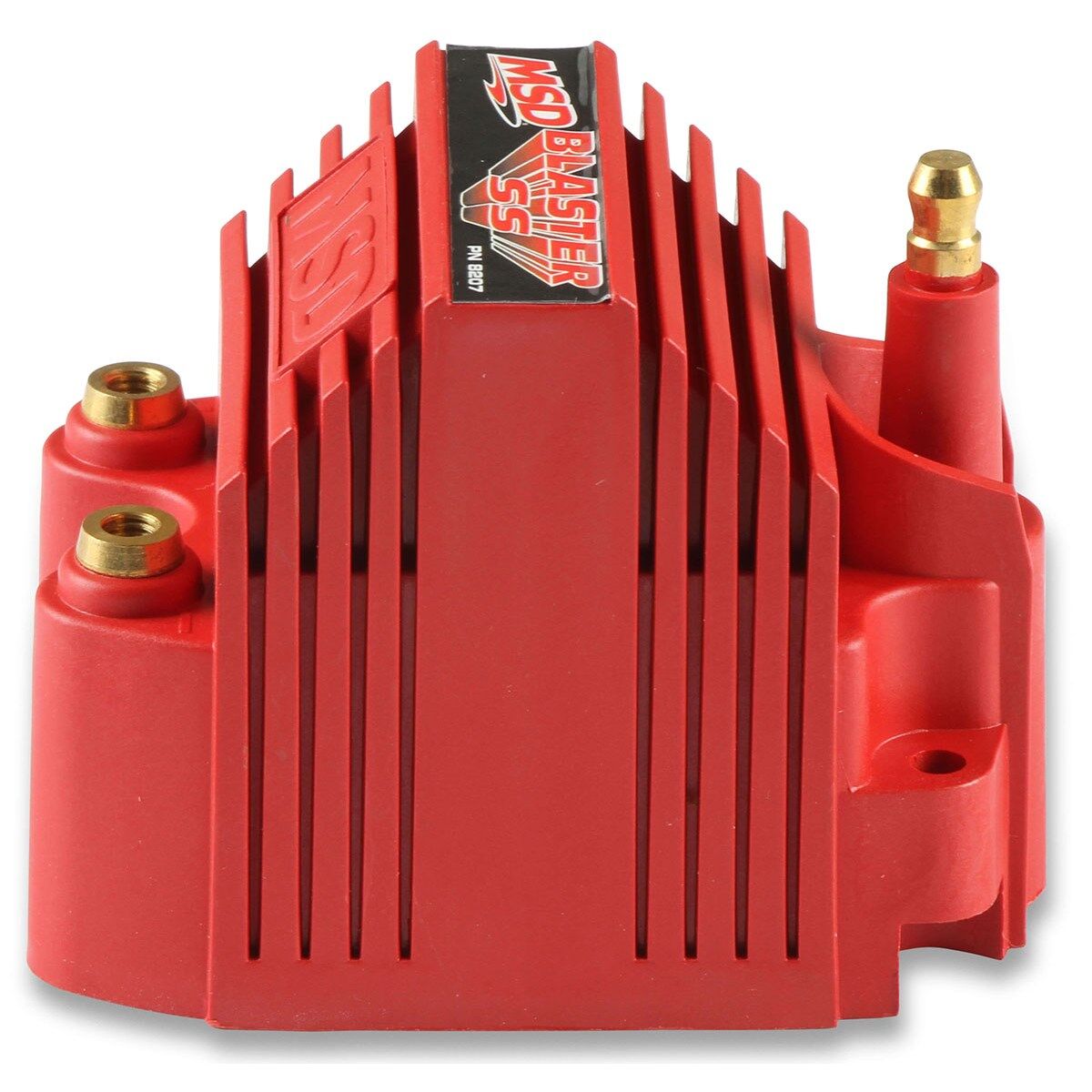

Don’t let the compact size of the Blaster SS Coil fool you, because it is packed with performance!

The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output.

In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000

volts!

The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between

the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for

complete protection against vibration. The Blaster SS features brass terminals and a sturdy Rynite housing.

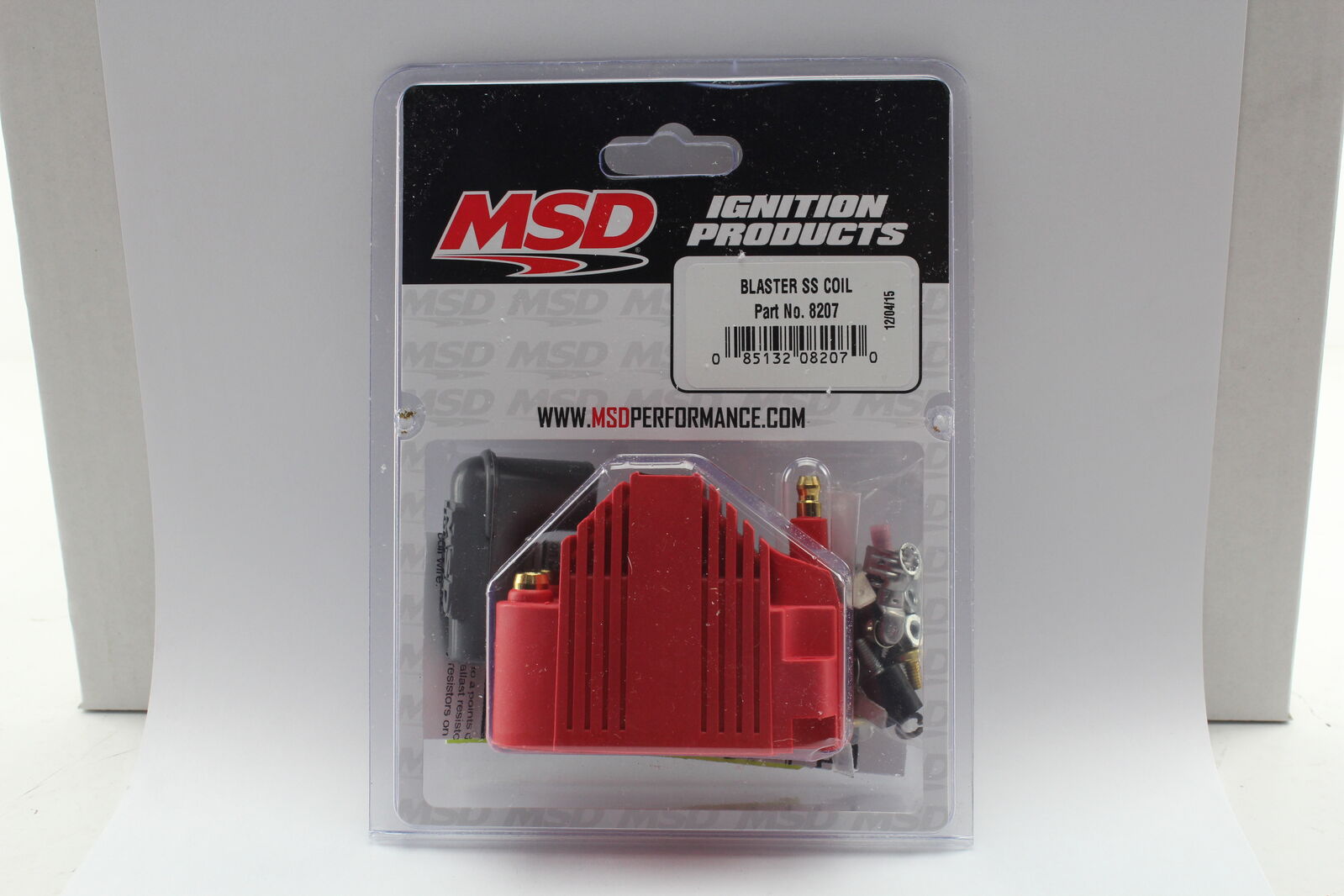

It is supplied with a 90° boot, terminal and vibration mounts. A great addition to CD Ignitions and some stock applications.

Features:

Improved output coil for electronic ignitions, and MSD Ignitions

Efficient winding design and assembly creates a compact housing

Primary and secondary windings are encased in Ciba polyurethane

70:1 turns ratio and lower primary resistance produce high voltage output

Dupont Rynite housing with a tall tower and brass primary terminals

CARB E.O. Approved

Specifications:

Brand MSD
Emission Code 1
Inductance 6.9 mH
Peak current 300 mA
Primary resistance .355 OHMs
Secondary resistance 4.4K OHMs
Spark duration 220 uS
Turns ratio 70:1
