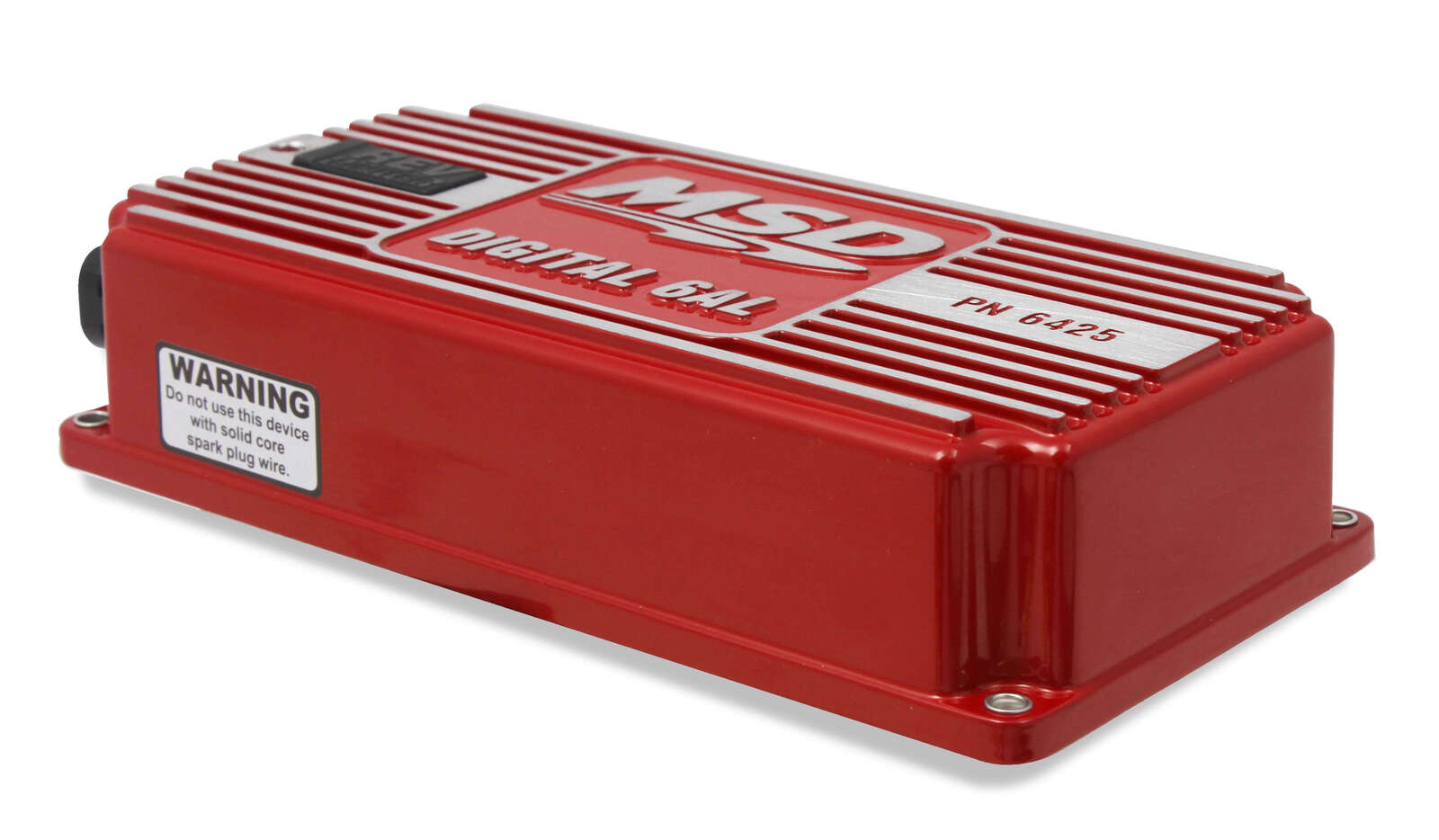

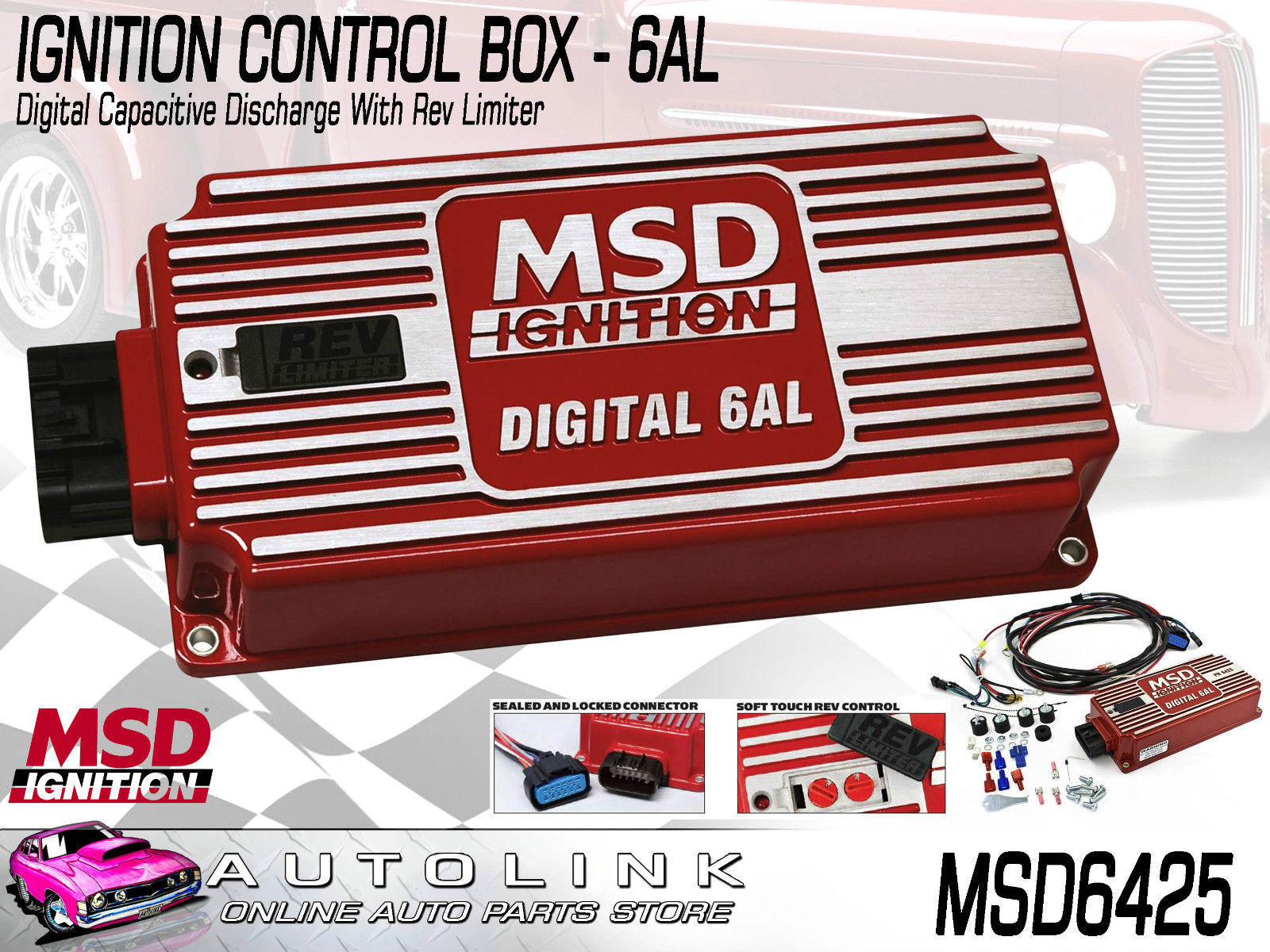

MSD MSD6425 DIGITAL 6AL IGNITION CONTROL BOX WITH ROTARY DIALS FOR REV LIMITER

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

MSD

DIGITAL 6AL IGNITION CONTROL BOX

WITH ROTARY DIALS FOR REV LIMITER RED

MSD6425

SOLD AS EACH

THE BAR HAS BEEN RAISED EVEN HIGHER AS MSD INTRODUCES THE ALL NEW DIGITAL 6AL IGNITION CONTROL

Advance with the digital power of your popular favorite--MSD 6AL ignitions. With less power draw and higher output, MSD moves you

with "the fire to drive" in a digital powerhouse! Inside microprocessors, updated circuits and efficient components monitor and handle

every firing and rev limit to produce more power while pulling less current. Don't worry; features that made their 6AL boxes your first

choice remain but with improved output--more than135mJ of spark energy for every firing with 530+ volts to the coil! And, to go with the

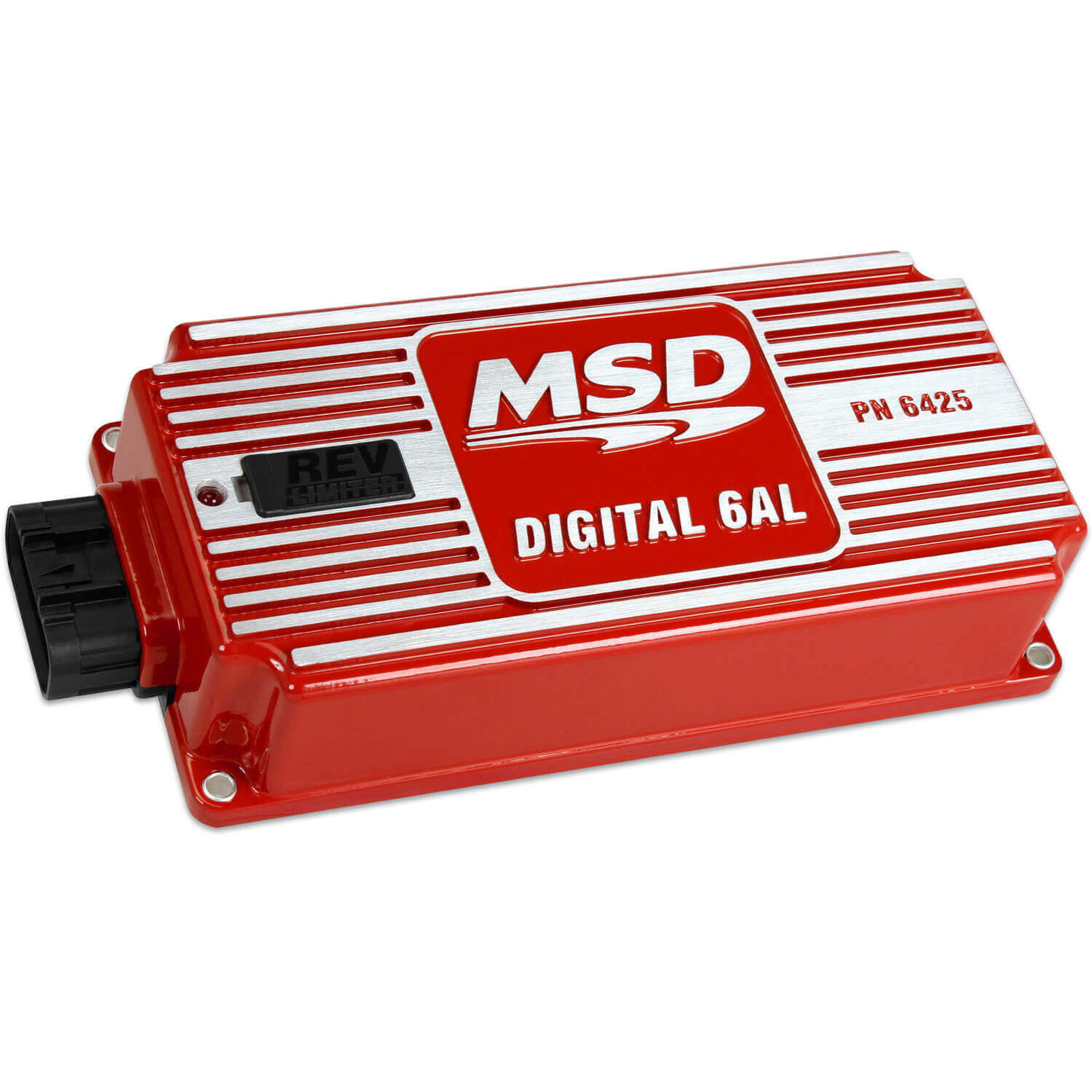

new power, a new look. These digital 6AL ignition controllers are sleek with a lower profile. Wiring is routed out one end through a

sealed and locked connector and two rotary dials to set rpm limit are positioned right on top--easier installation, super easy access and

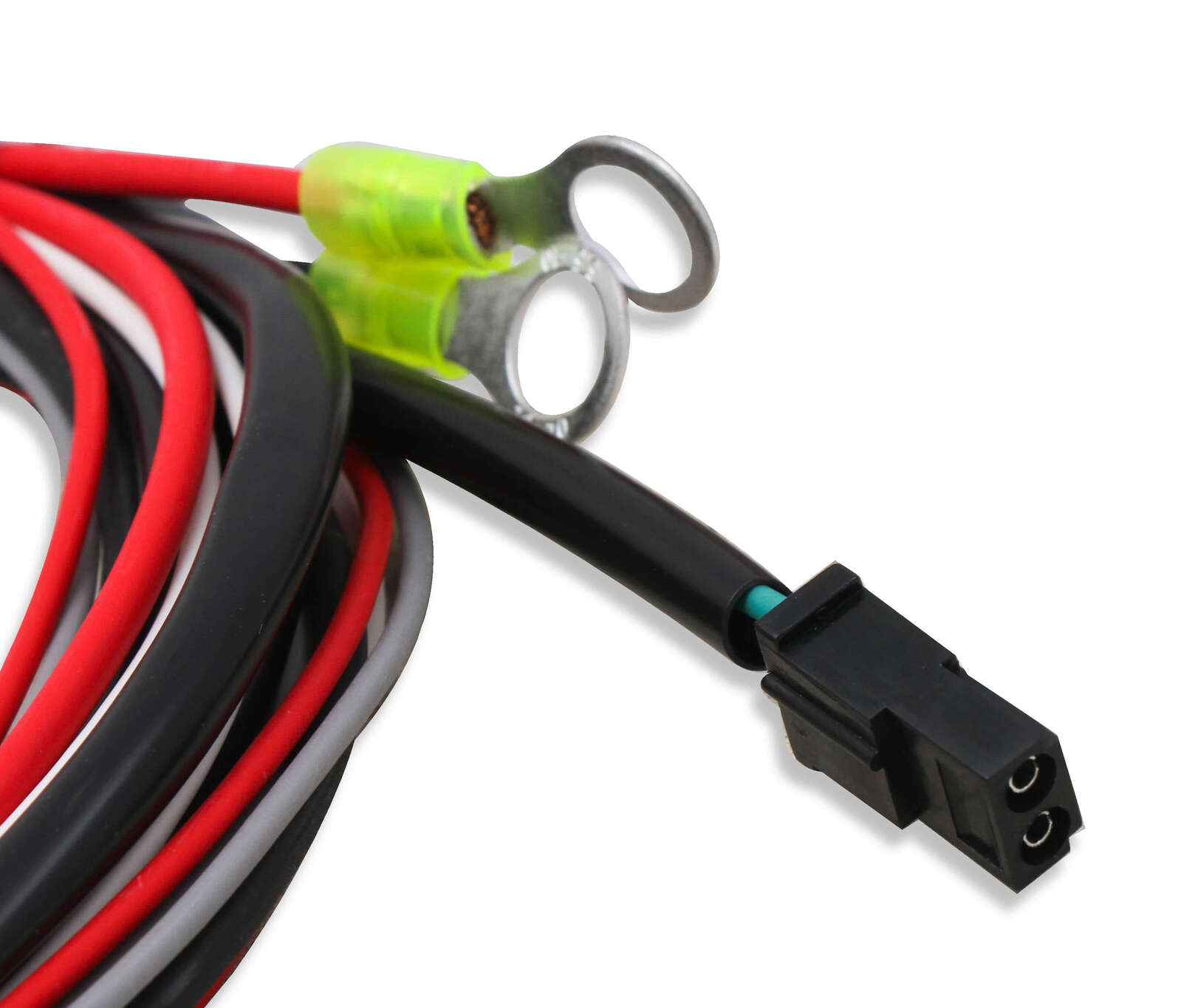

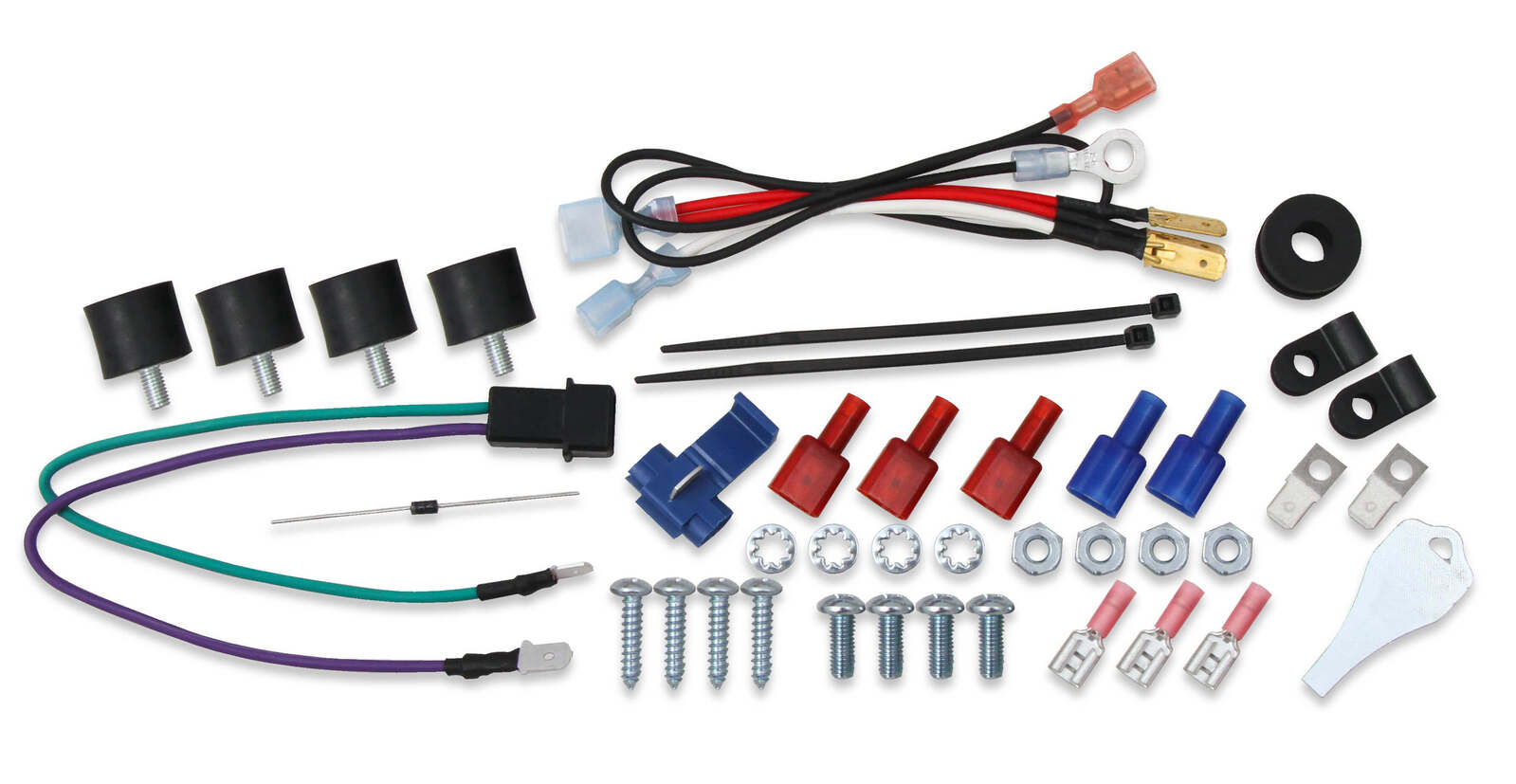

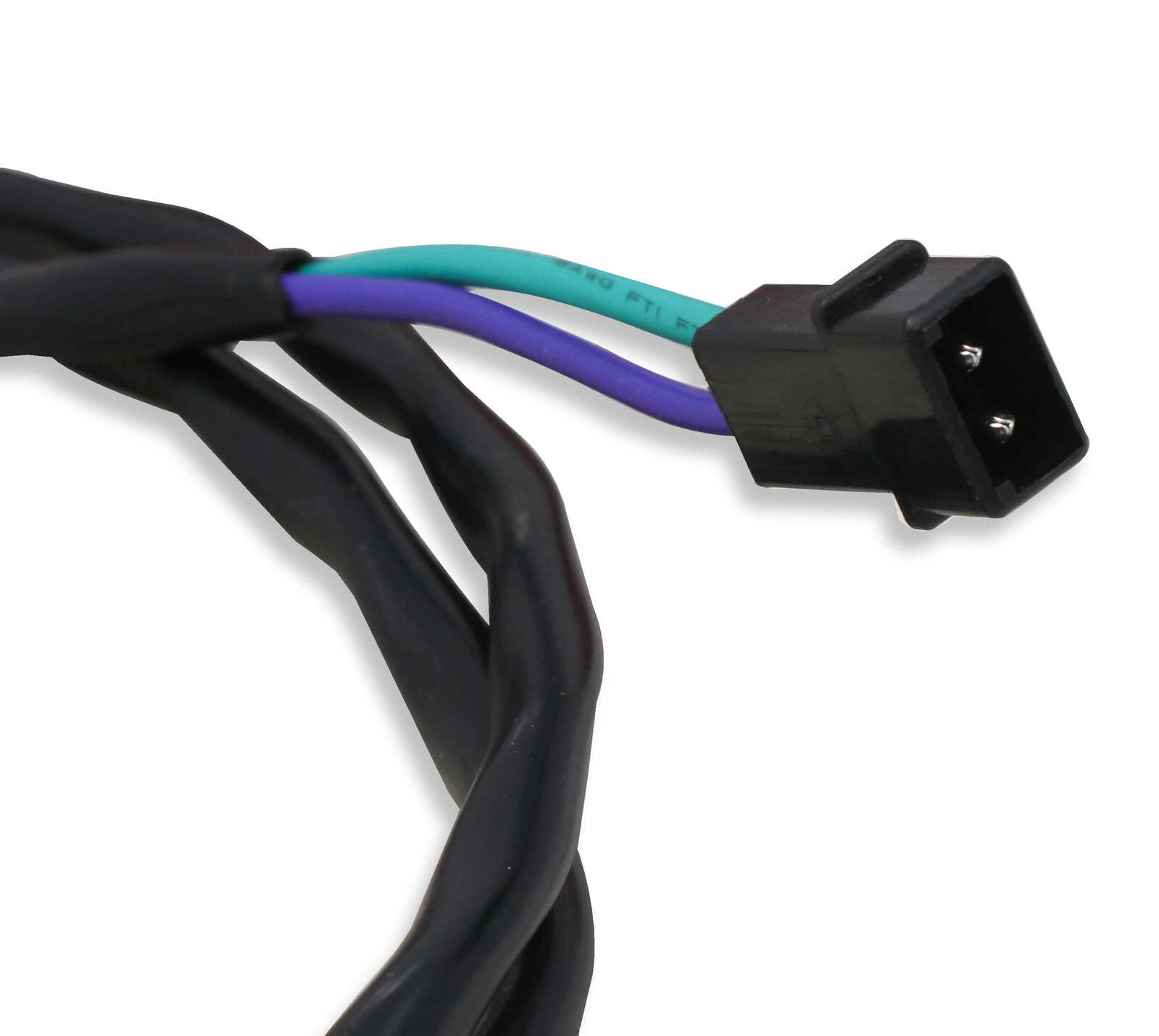

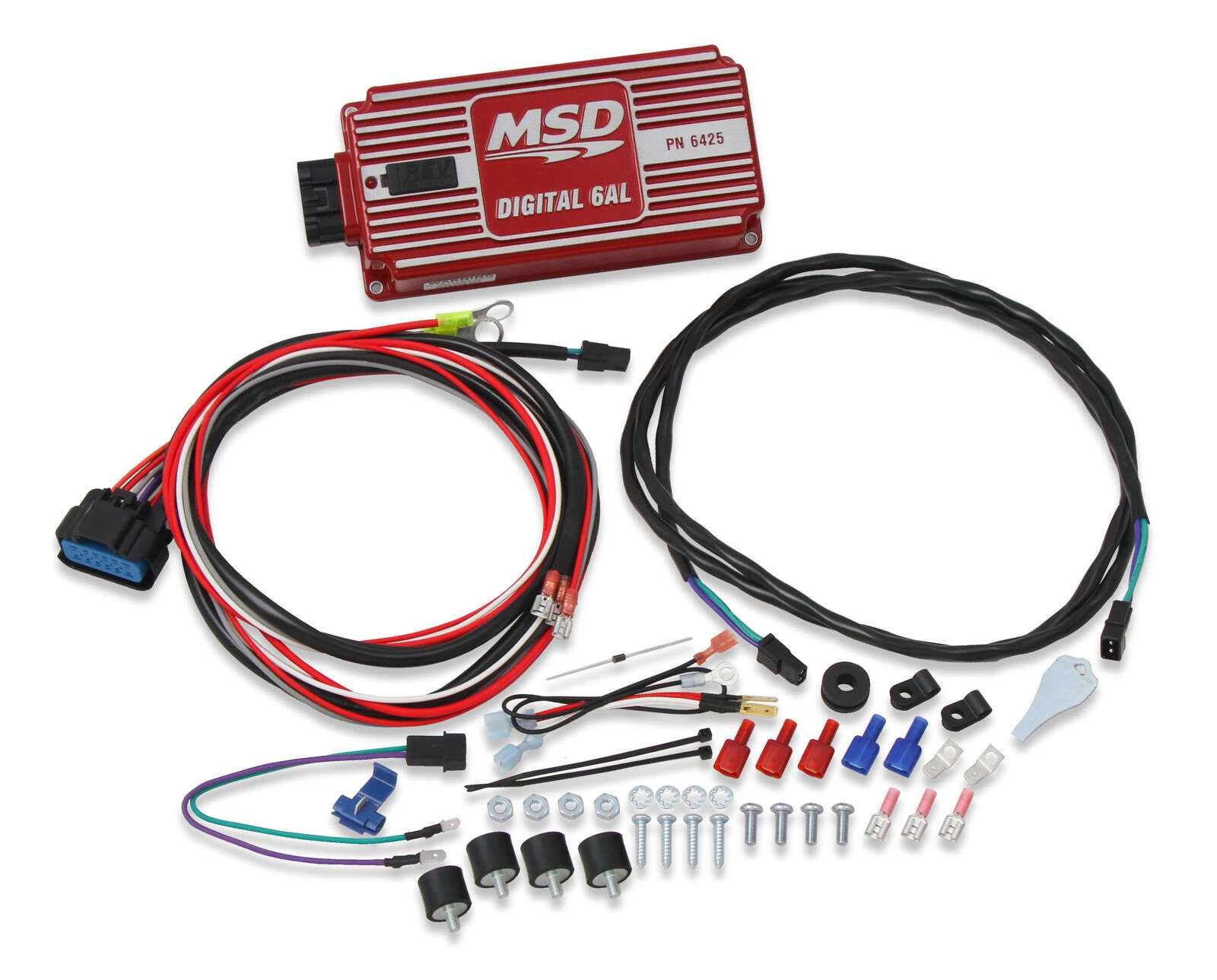

a clean, neat appearance under the hood. Controllers are supplied with wiring harness and components you need for install plus,

vibration mounts. Increased output and proven multiple-spark power--MSD digital 6AL ignition controllers are a definite win-win!

Features:
* With Soft Touch Rev Control
* Higher output with 530 primary volts and 135mJ of spark energy
* Efficient components use less current to produce more power
* Set an rpm limit on the 6AL with two rotary dials
* Same bolt pattern as the original 6AL with a lower profile housing
* Built-in LED for system checks

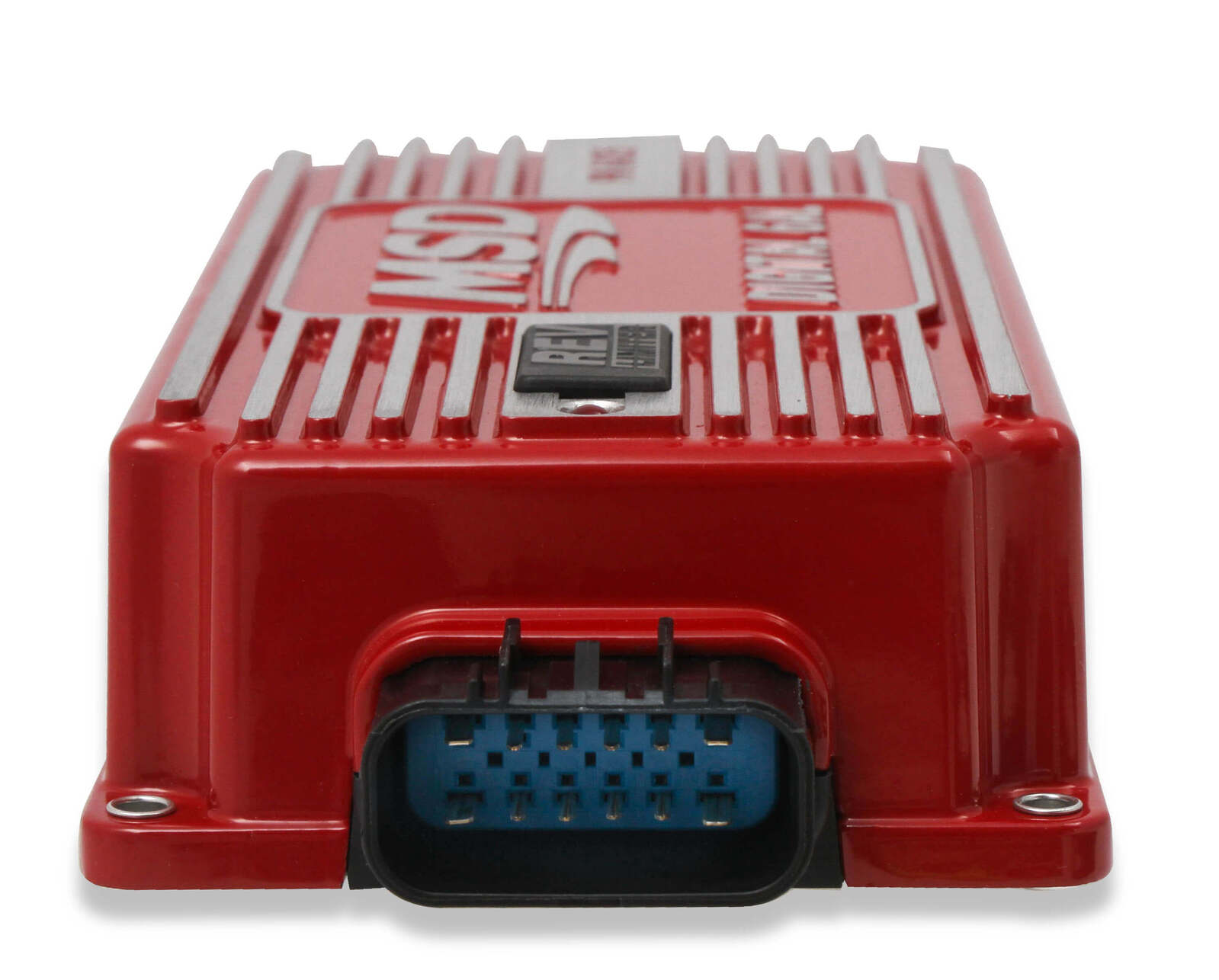

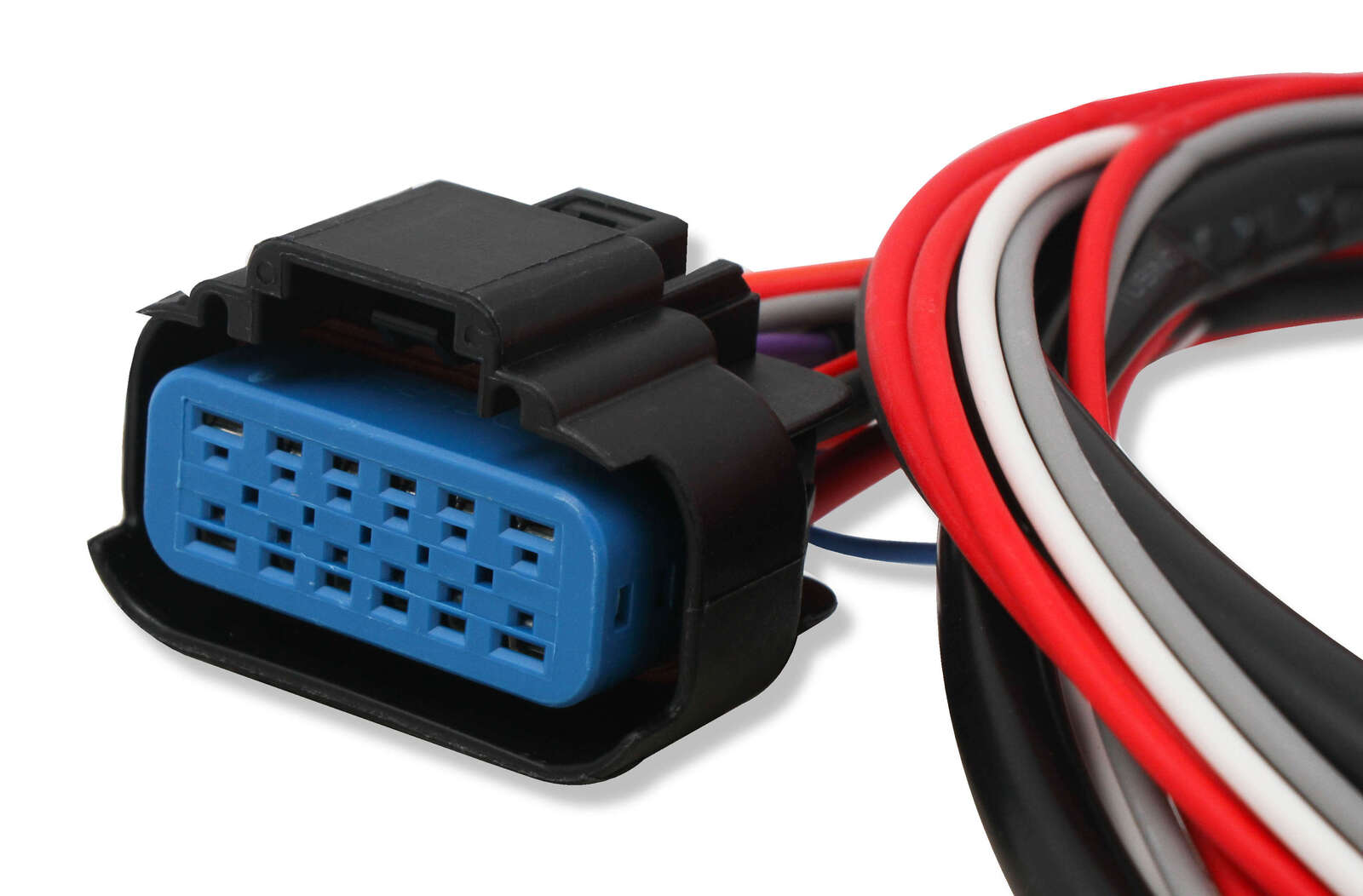

* All wires exit the same side through a locked, sealed connector
* Compatible for 4, 6 or 8-cylinder engines

OPERATING SPECIFICATIONS

Spark Energy: 135-145 mJ per spark

Primary Voltage: 520-540 Volts

Secondary Voltage: 45,000 Volts

Spark Series Duration: 20 degree Crankshaft Rotation RPM

Range: 15,000 RPM with 14.4 Volts

Voltage Required: 12-15 Volts, 7 Volt Start Current Draw: .7 Amp per 1,000 RPM

Weight and Size: 1.7 lbs., 8"L x 4"W x 1.825"H

Ignition Box Output		Capacitive discharge
Circuitry		Digital
Rev Limiter		Yes
Timing Retard		None
Data Acquisition		No
CD Voltage Output to Coil		520-540 V
Current Draw		0.7 amps per 1,000 rpm
Spark Output (millijoules)		135-145 Millijoules
Minimum Operating Voltage		12 V
Maximum Operating Voltage		15 V
Length (in)		8.000 in.
Height (in)		2.250 in.
Width (in)		4.000 in.
Ignition Box Color		Red
Coil Included		No
Warranty		1-year
Quantity		Sold individually.
