SKU: DBC100K-1

PROJECTA DBC100K 12V 100AMP ELECTRONIC DUAL BATTERY ISOLATOR SYSTEM KIT 12 VOLT

$252.50
RRP $335.00
SAVE $82.50 (25%)

or 4 payments of $63.12 with Info

In Stock


Calculate Shipping



FREE STD SHIPPING - $0.00
Delivery Australia Wide
Free pick-up from store - $0.00
This item is pick up only

Description

PROJECTA

12V 100A ELECTRONIC ISOLATOR KIT

A fully automatic dual battery kit suitable for any mid-sized vehicle with an auxiliary battery.

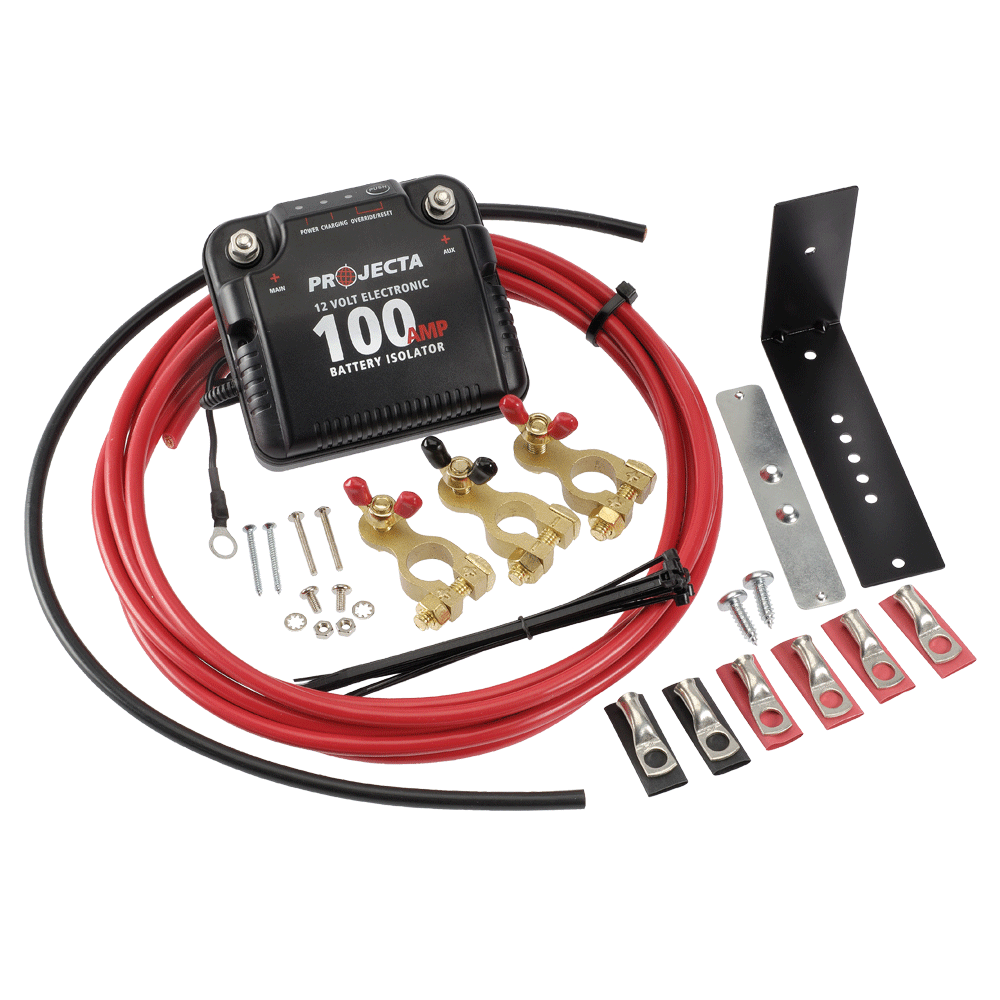

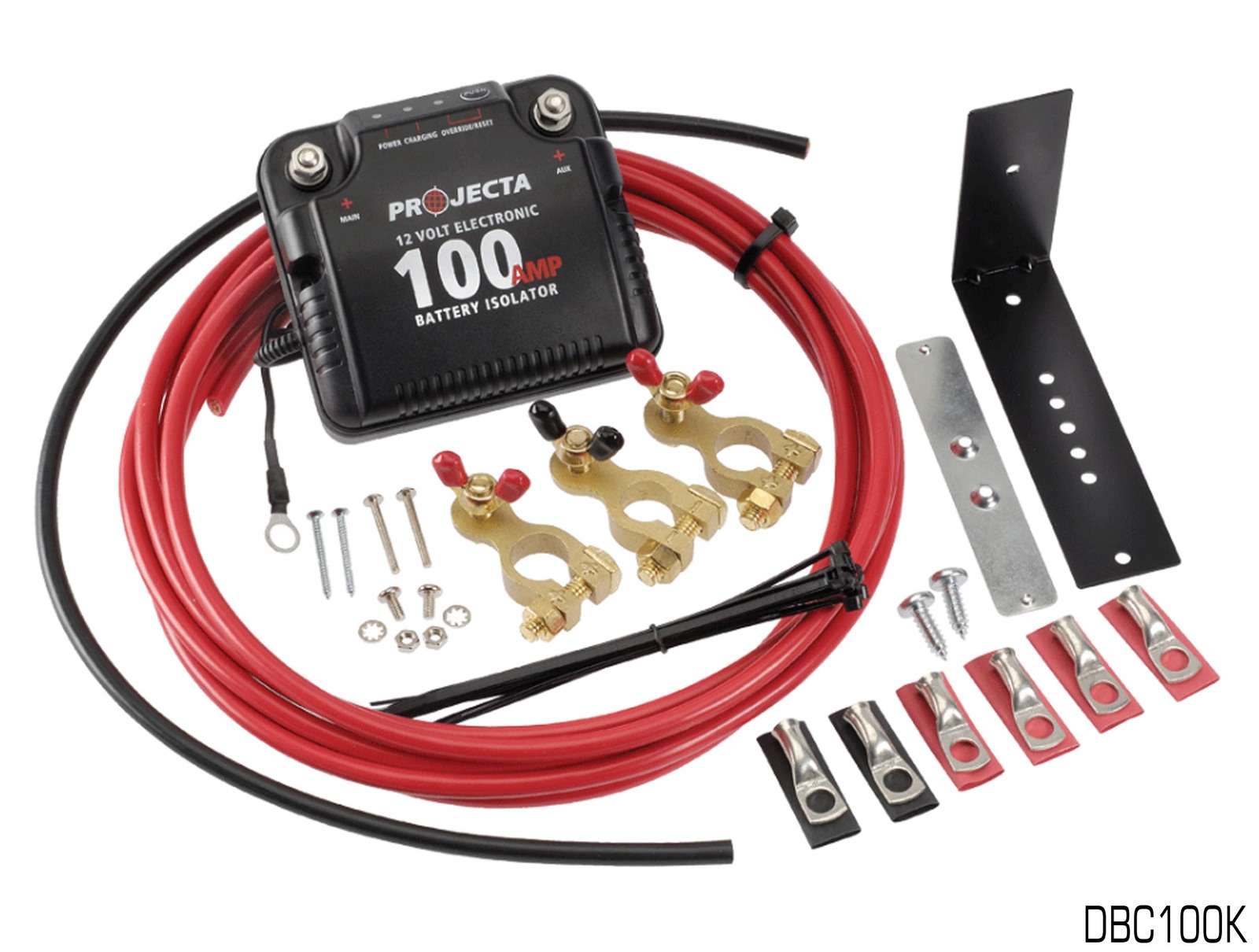

Kit comprises:  Electronic isolator (100A: P/No. DBC100), lugs, terminals, heat shrink & cable ties,

4m main cable & 60cm aux earth cable (6 B&S) bracket, auxiliary battery terminals (2 x pos, 1 x neg)



FEATURES

Priority charging

Ensures main battery is charged before connecting to auxiliary

Comprehensive kit

Includes everything for an easy and professional installation

Manual override

Allows batteries to be manually paralleled for jumpstarting

Quality battery terminals

Solid brass battery terminals with quick release wingnut bolts allowing multiple cable connections

Vehicle protection

Built-in over current and surge protection



SPECIFICATIONS

PART NO  DBC100K

VOLTAGE  12V

CHARGING CURRENT  75A Continuous, 100A Peak

CUT-IN VOLTAGE  13.4V

CUT-OUT VOLTAGE  12.8V

CUT-OUT DELAY  60 seconds

MINIMUM OPERATING VOLTAGE  One battery above 7.5V

CHARGE TYPE  Parallel

CONTROL  MCU

MOUNTING  Surface/firewall battery side

CURRENT DRAW  Charging 500mA (standby 30mA)

SURGE PROTECTION  Built-in

APPROVALS   EMC

DCB100K

SOLD AS A KIT
