PROJECTA DBC100K DUAL BATTERY KIT 12V 100A ELECTRONIC ISOLATOR FULLY AUTOMATIC
Description
PROJECTA
12V 100A ELECTRONIC ISOLATOR KIT
A fully automatic dual battery kit suitable for any mid-sized vehicle with an auxiliary battery.

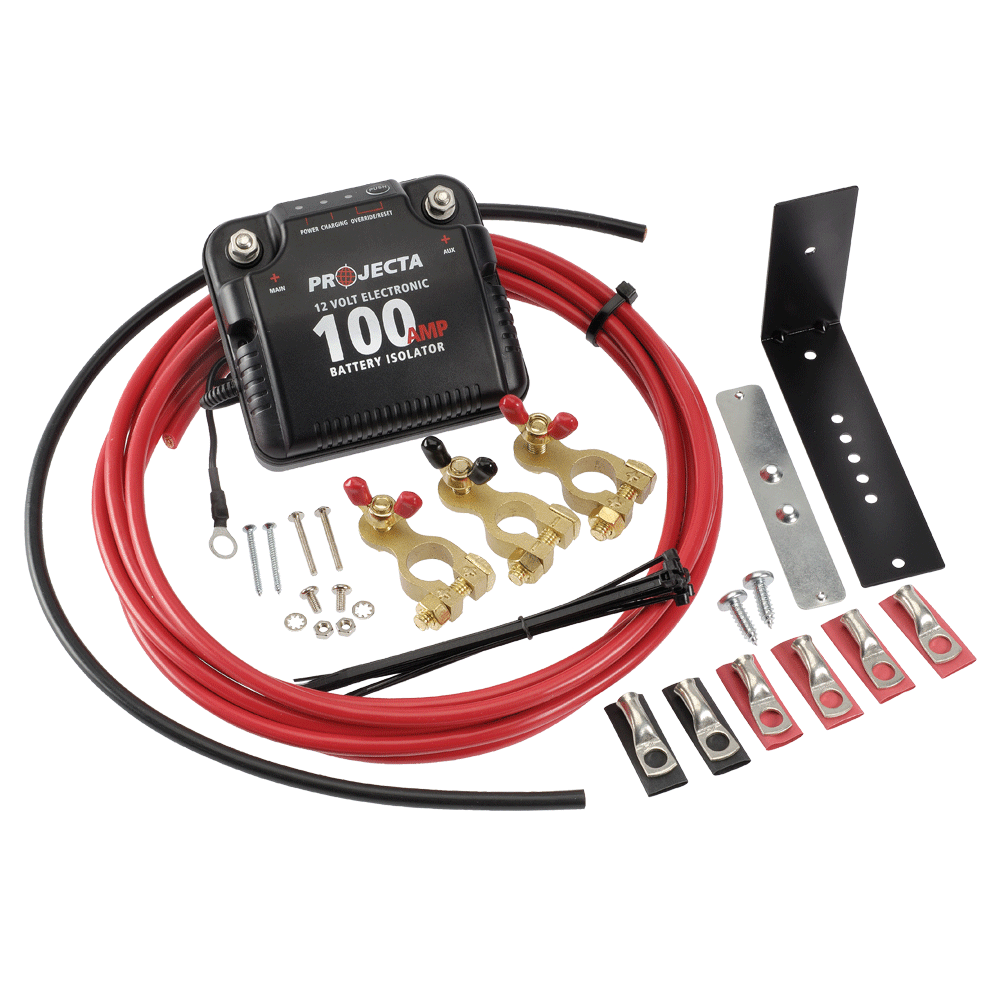

Kit comprises: Electronic isolator (100A: P/No. DBC100), lugs, terminals, heat shrink & cable ties,
4m main cable & 60cm aux earth cable (6 B&S) bracket, auxiliary battery terminals (2 x pos, 1 x neg)
FEATURES
Priority charging
Ensures main battery is charged before connecting to auxiliary
Comprehensive kit
Includes everything for an easy and professional installation
Manual override
Allows batteries to be manually paralleled for jumpstarting
Quality battery terminals
Solid brass battery terminals with quick release wingnut bolts allowing multiple cable connections
Vehicle protection
Built-in over current and surge protection
SPECIFICATIONS
PART NO DBC100K
VOLTAGE 12V
CHARGING CURRENT 75A Continuous, 100A Peak
CUT-IN VOLTAGE 13.4V
CUT-OUT VOLTAGE 12.8V
CUT-OUT DELAY 60 seconds
MINIMUM OPERATING VOLTAGE One battery above 7.5V
CHARGE TYPE Parallel
CONTROL MCU
MOUNTING Surface/firewall battery side
CURRENT DRAW Charging 500mA (standby 30mA)
SURGE PROTECTION Built-in
APPROVALS EMC
DCB100K
SOLD AS A KIT
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | DBC100K |
| Barcode # | 9315219802750 |
| Brand | PROJECTA |
| Shipping Weight | 2.2000kg |
| Shipping Width | 0.280m |
| Shipping Height | 0.120m |
| Shipping Length | 0.320m |
| Shipping Cubic | 0.010752000m3 |
| Unit Of Measure | ea |
