Projecta Dual Battery Kit 12V 150A Electronic Isolator Fully Automatic DBC150K
Description

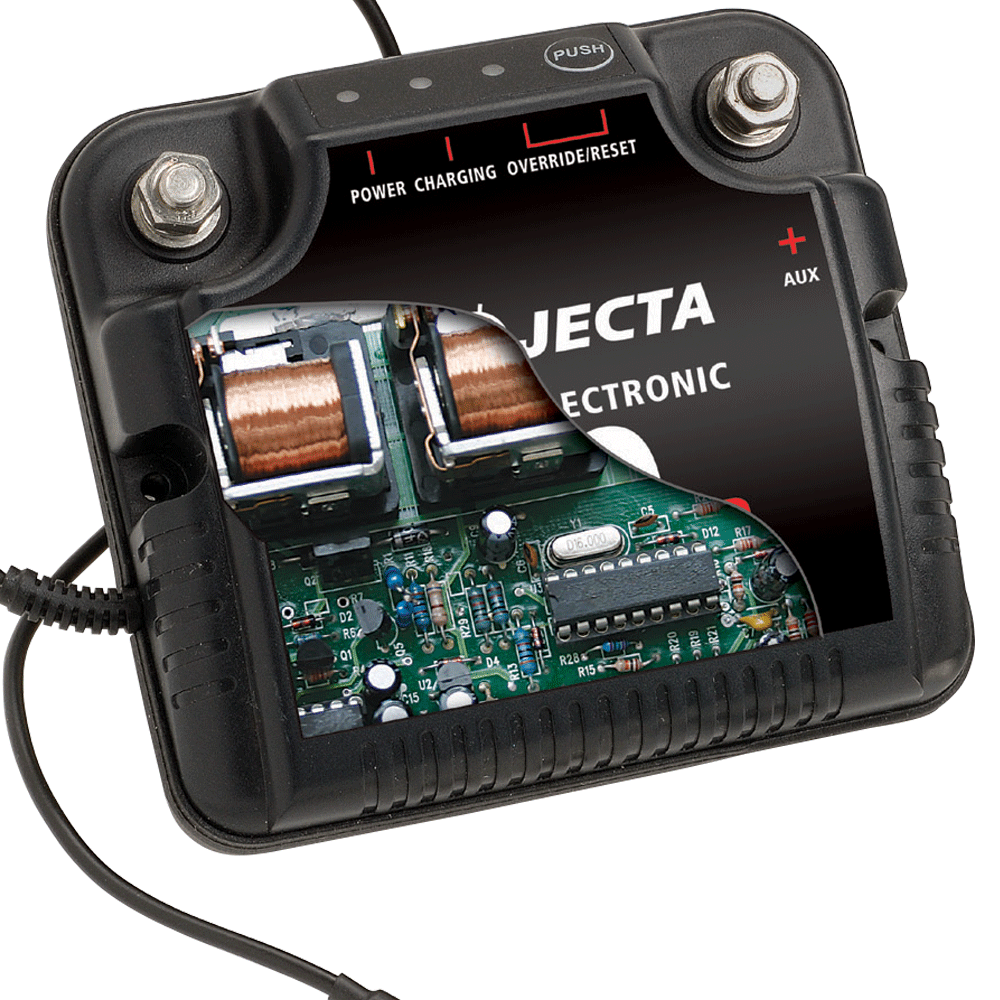

Projecta 12V 150A Electronic Isolator Kit
A fully automatic dual battery kit ideal for use on large 4WD vehicles wishing to run double or triple battery systems.

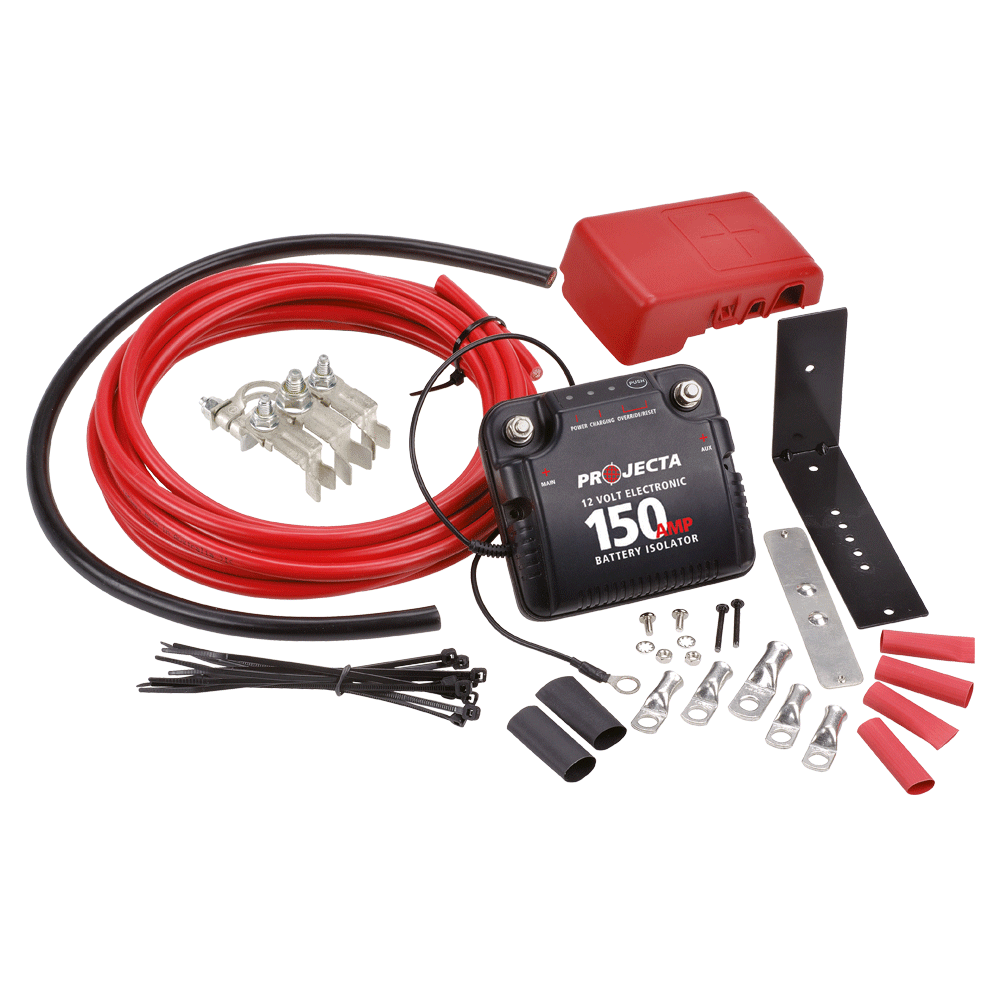

Kit comprises: Electronic isolator (150A: P/No. DBC150), 6m main cable (4 B&S) & 60cm aux earth cable (3 B&S), fused distribution terminal, fuses, lugs, heat shrink & cable ties.
Features
- Priority charging
- Ensures main battery is charged before connecting to auxiliary
- Comprehensive kit
- Includes everything for an easy and professional installation
- Manual override
- Allows batteries to be manually paralleled for jumpstarting
- Fused distribution terminal
- Converts positive battery post of auxiliary battery into 3 fused outlets
- Vehicle protection
- Built-in over current and surge protection
Specifications
- Part No.: DBC150K
- Voltage: 12V
- Charging Current: 125A Continuous, 150A Peak
- Cut-In Voltage: 13.4V
- Cut-Out Voltage: 12.8V
- Cut-Out Delay: 60 seconds
- Minimum Operating Voltage: One battery above 7.5V
- Charge Type: Parallel
- Control MCU
- Mounting: Surface/firewall battery side
- Current Draw: Charging 500mA (standby 30mA)
- Surge Protection: Built-in
- Approvals: EMC
Replacement parts
- BT950-30 30A fuse (orange midi)
- BT950-CAL 150A continuous/800A max CAL2 fuse (black maxi)
DBC150K
SOLD AS A KIT
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | DBC150K |
| Barcode # | 9315219802774 |
| Brand | Projecta |
| Shipping Weight | 2.9000kg |
| Shipping Width | 0.280m |
| Shipping Height | 0.120m |
| Shipping Length | 0.320m |
| Shipping Cubic | 0.010752000m3 |
| Unit Of Measure | ea |
