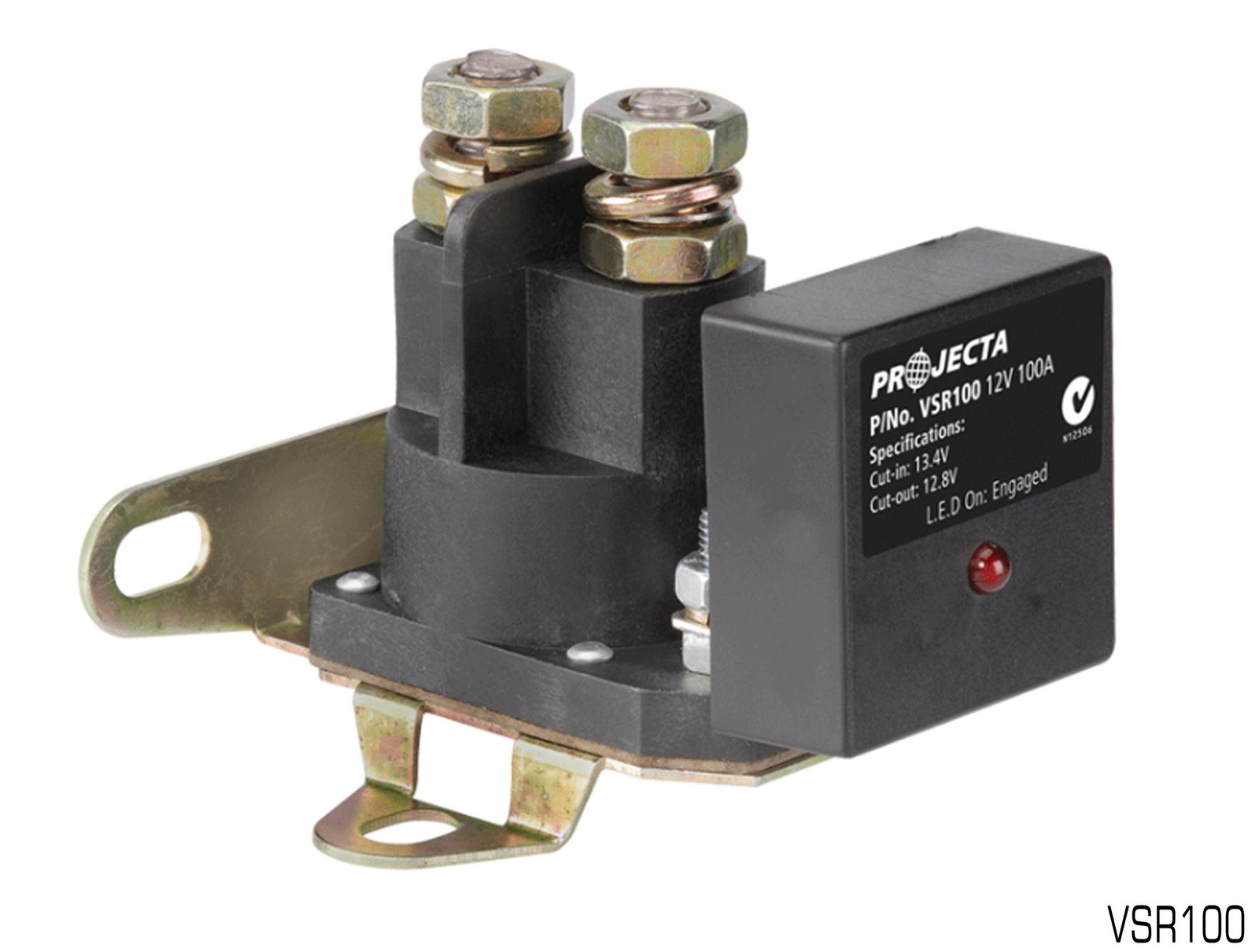

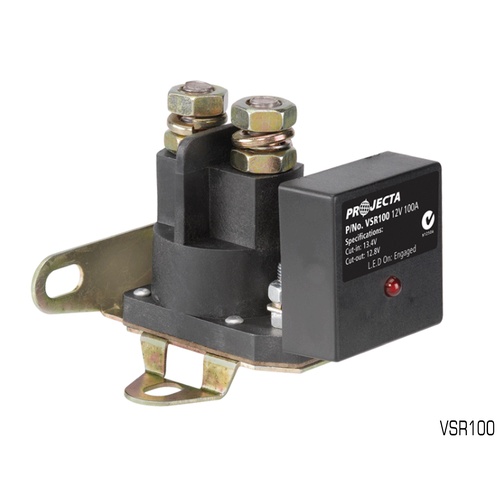

PROJECTA VSR100 DUAL BATTERY VOLTAGE SENSITIVE RELAY 12V 100A

PROJECTA DUAL BATTERY VOLTAGE SENSITIVE RELAY 12V 100A - LED INDICATOR VSR100

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

PROJECTA

12V 100A VOLTAGE SENSITIVE RELAY

The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications, eg. winching etc.

Suitable for a wide variety of 12V DC applications, the VSR units sense the input voltage generated and automatically

connect/disconnect the appliance or circuit at pre-set voltages. Fully sealed to IP66 and surge protected,

the VSR units are ideal for dual battery setups as they enable the batteries to be paralleled for high power usage, eg. jumpstarting or winching.

FEATURES

L.E.D indicator
L.E.D illuminates when VSR is activated

Sealed electronics
Prevents dust and water ingress (IP66)

Surge protection
Built-in protection guards vehicle against voltage spikes

Manual override
Bypasses automatic settings allowing relay to engage below set voltages

Silver tip contacts
Provide exceptional current transfer

SPECIFICATIONS
PART NO	VSR100
VOLTAGE	12V
CHARGING CURRENT	100A Continuous, 200A Peak
CUT-IN VOLTAGE	13.4V
CUT-OUT VOLTAGE	12.8V
CUT-OUT DELAY	8 seconds
MINIMUM OPERATING VOLTAGE	10V
CHARGE TYPE	Parallel
CONTROL	MCU
MOUNTING	Surface/firewall
CURRENT DRAW	Charging 550mA (standby 10mA)
SURGE PROTECTION	Built-in
INGRESS PROTECTION	IP66
OVERRIDE	Requires min. 10V
RECOMMENDED FUSE	150A
MINIMUM CABLE SIZE	14mm² (6 B&S)
APPROVALS	EMC
