DNA 7 INCH LCD REARVIEW SCREEN & CCD CAMERA PACK WITH REMOTE - RV70PK

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

DNA AUDIO

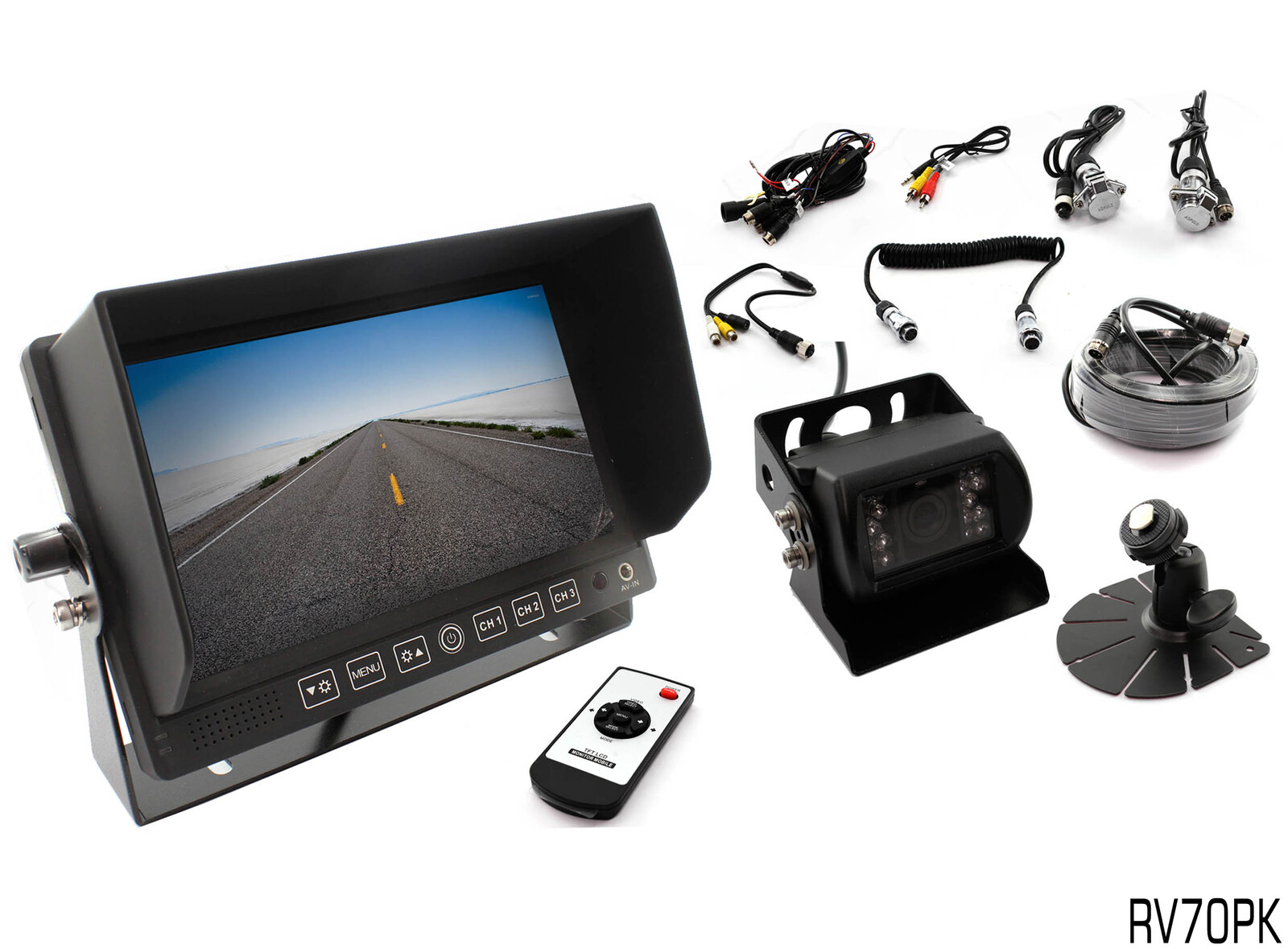

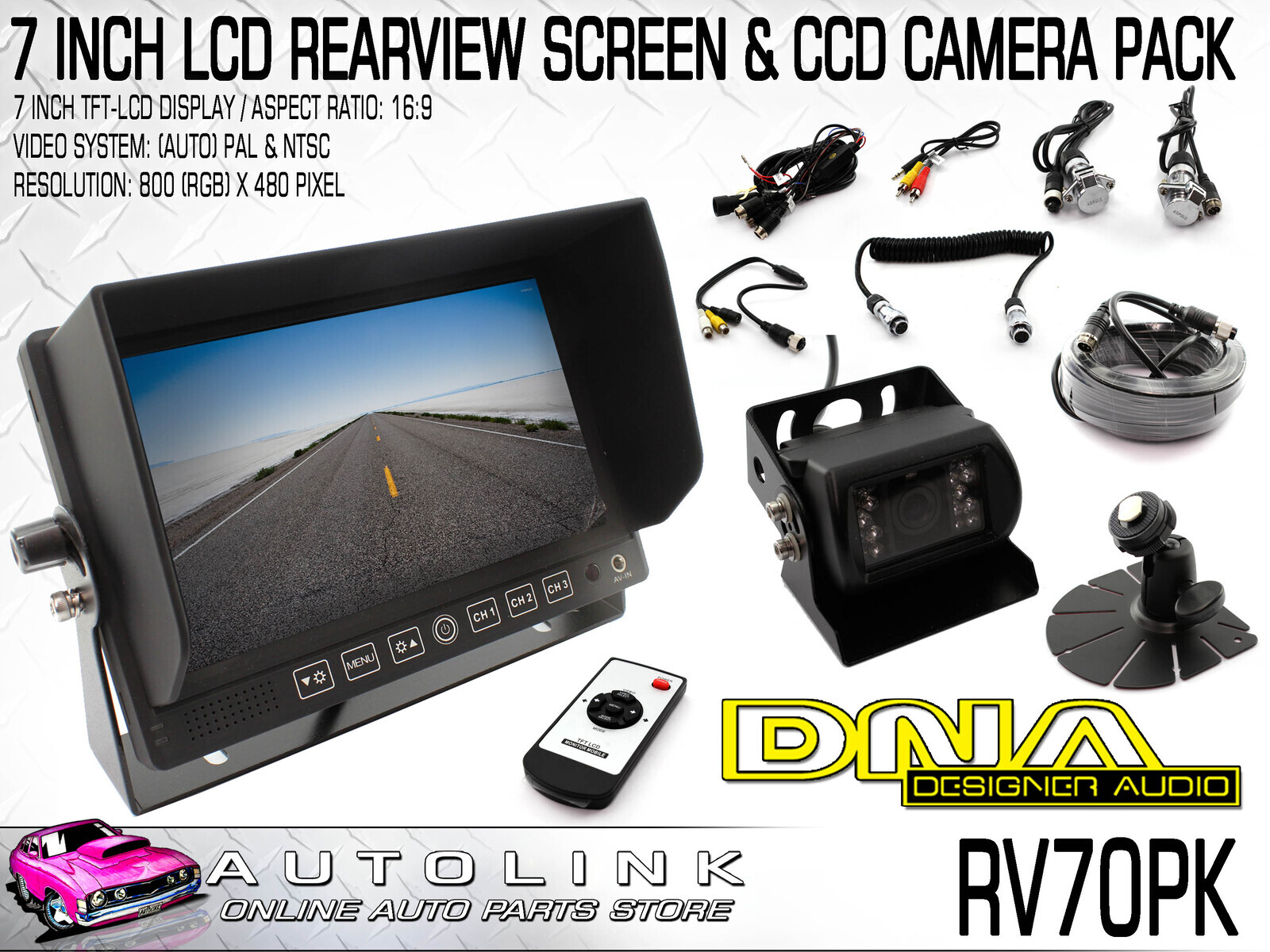

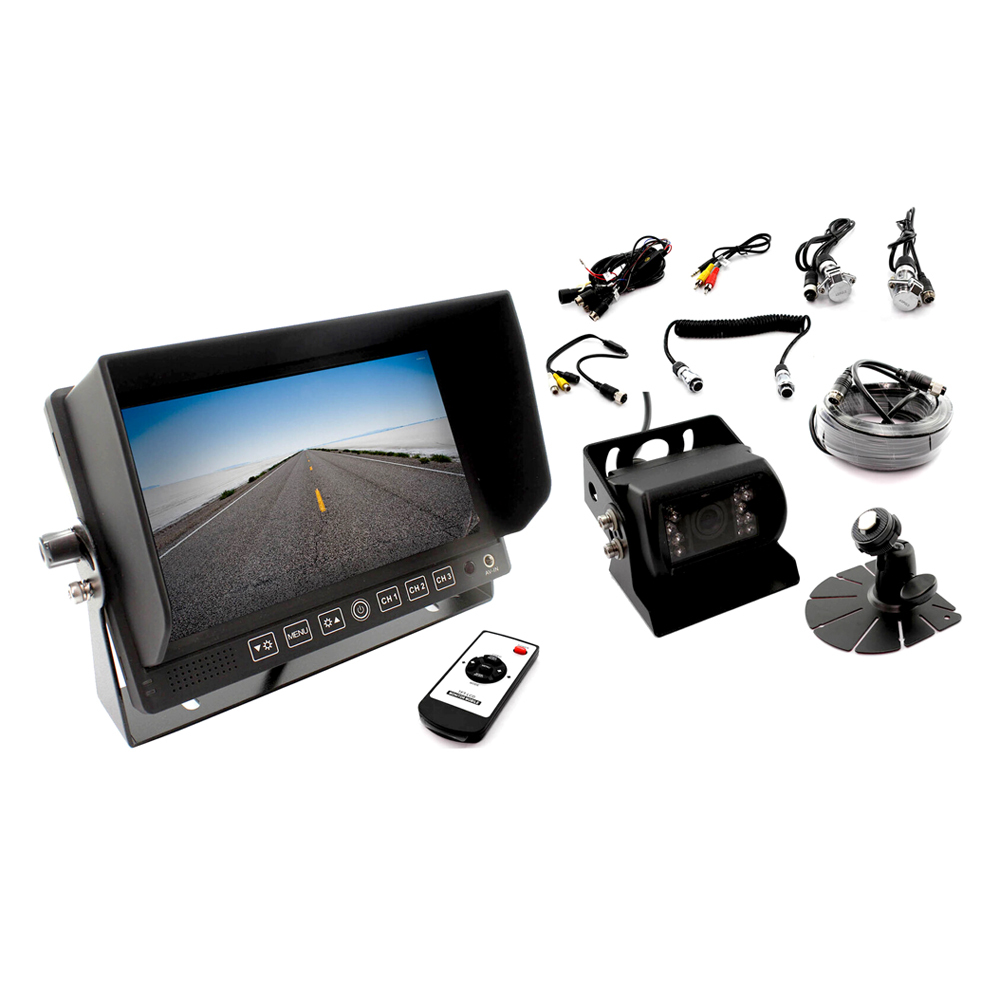

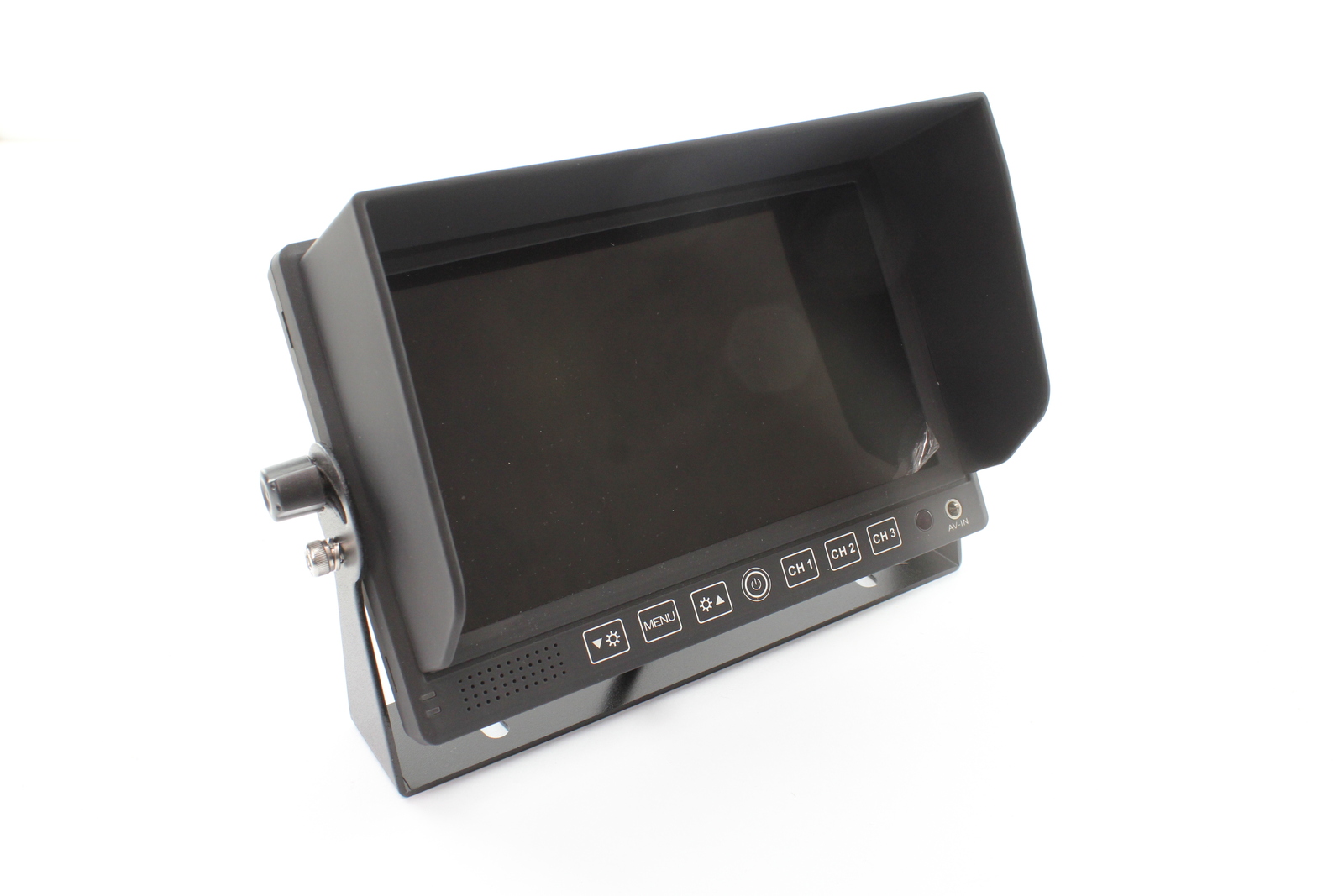

7 Inch LCD Rearview Screen & CCD Camera Pack

This high resolution 3 Channel TFT-LCD monitor is ideal for multiple camera applications for full screen viewing.

Includes front panel touch buttons with a large removable sun visor and is ideal for Caravans and Truck installations where a large viewing screen required.

Screen:

7 Inch TFT-LCD display

Aspect Ratio: 16:9

Video System: (AUTO) PAL & NTSC

Resolution: 800 (RGB) x 480 Pixel

3 Camera Inputs with 3 triggered inputs for each camera

1 Camera AV Input on front panel (CH1)

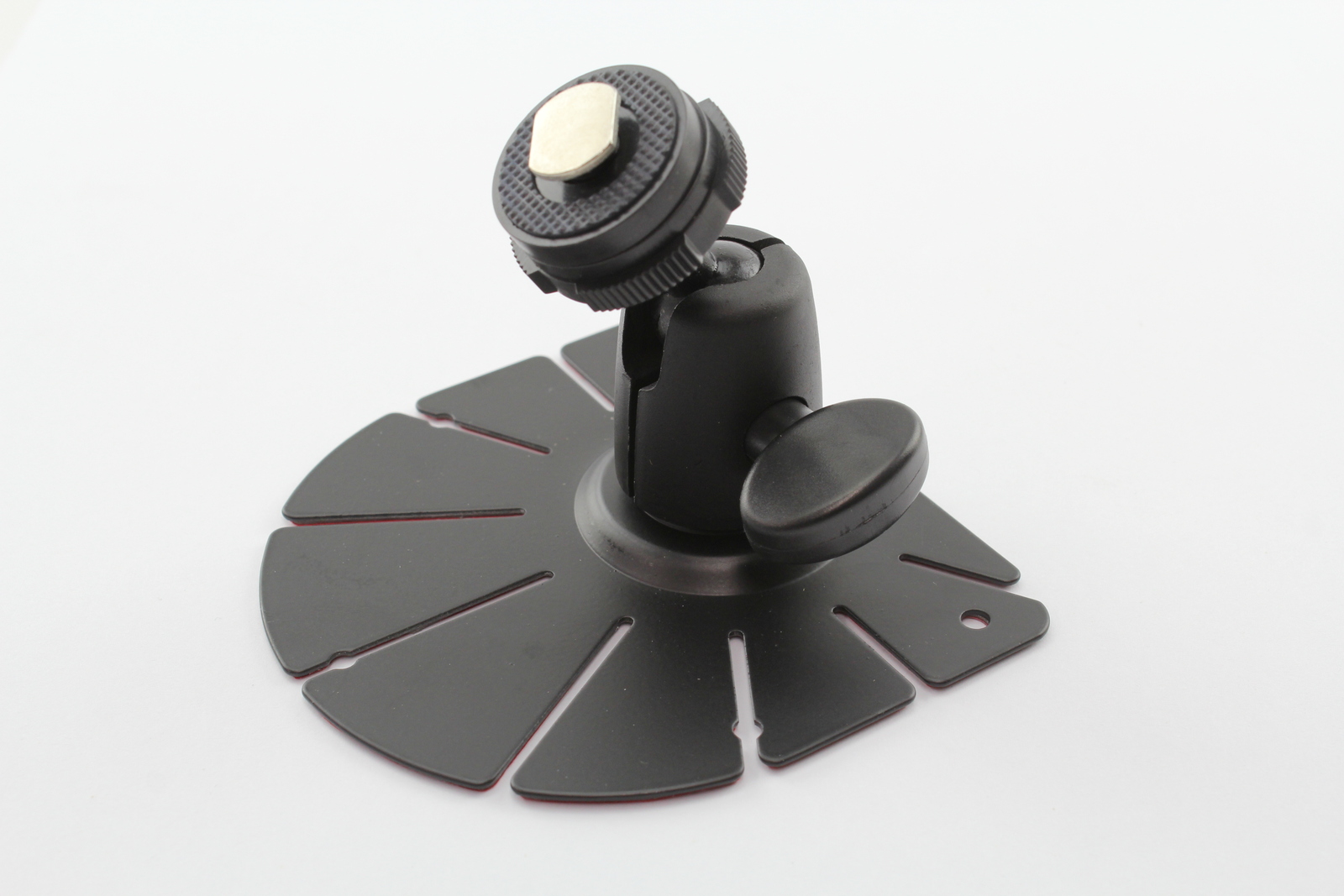

Dash mountable with either U shape bracket or round shape bracket

Screen sun visor

Inbuilt speaker

Microphone Included

Illuminated touch front panel buttons

4 Pin water-resistant lockable camera connections

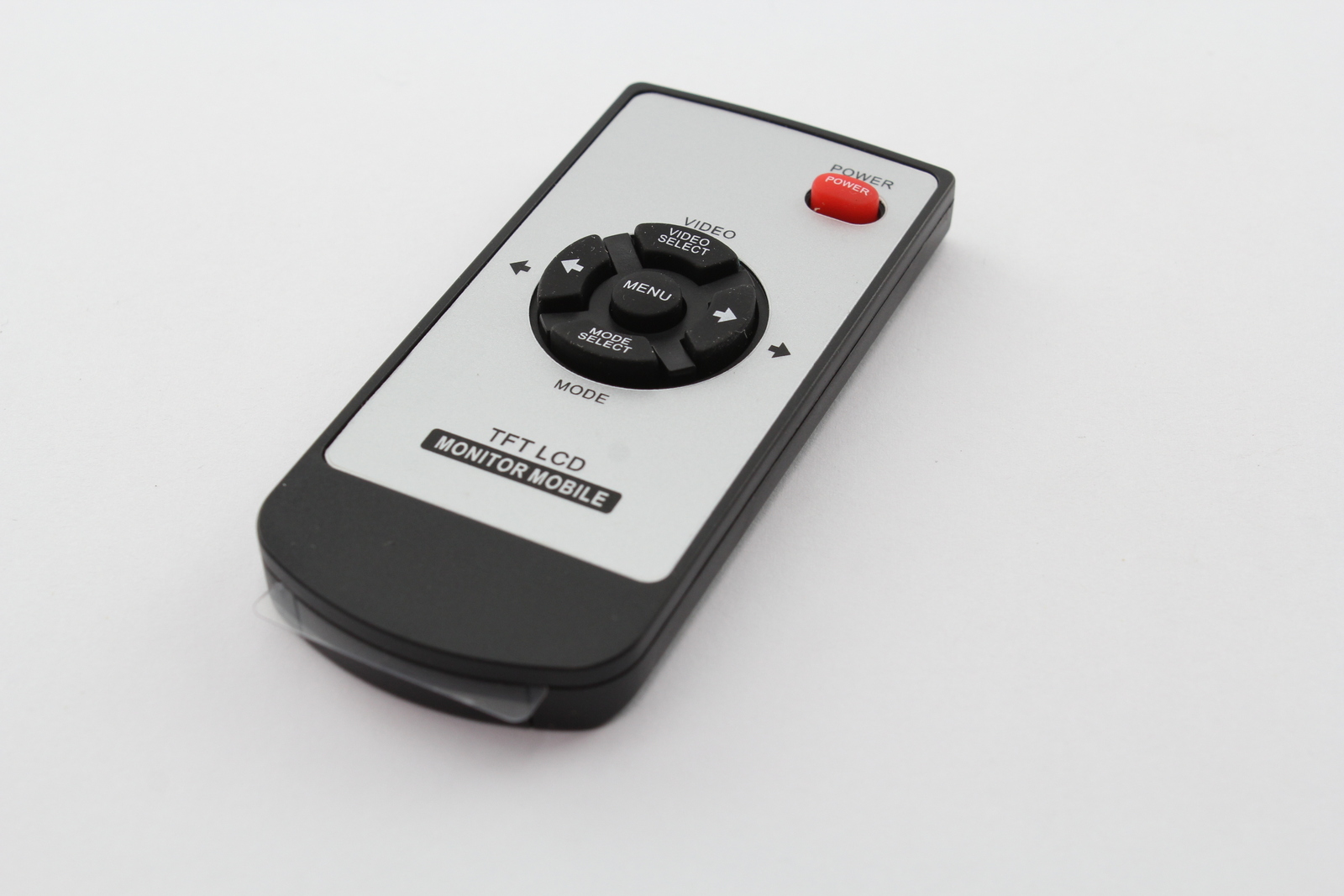

IR remote included

Image options: UP/Down and Left/Right (mirror)

Operating Temperature: -20°C /+70°C

Operating Voltage: 12V to 24V DC (+/- 10%)

Current Consumption: 5W

Size: 180mm W x 121mm H x 23mm D

Supplied with 2 x L brackets for mounting 5 pin sockets to vehicle

Packaging: Display box

Camera:

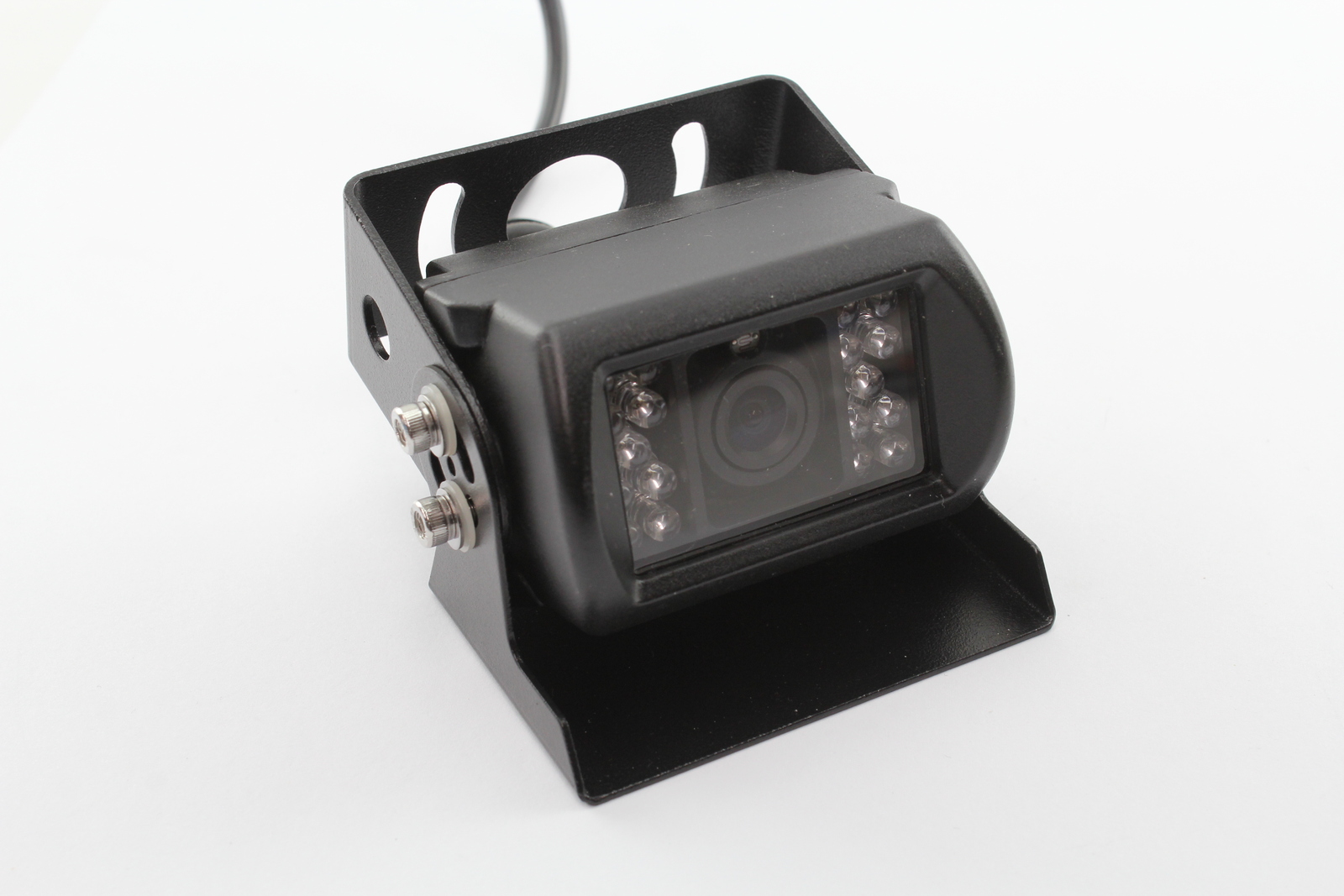

Heavy Duty PAL CCD Truck/Bus/Caravan Camera

This all metal waterproof construction CCD camera is ideal for trucks or buses where heavy duty application is required. Operates on 12V or 24V vehicles and includes built in IR LEDs for excellent night visibility.

¼ Inch Sharp PAL CCD Image processor

120° Horizontal Viewing angle

Horizontal Resolution: 420TV Line

IR LEDS: 18 IR Led

0 LUX illumination (night mode)

Operating Voltage: 12V or 24V DC

Sun Visor Included

Material: Aluminium alloy shell

S/N ratio: >48db

Waterproof rating to IP68

Video output: 1Vp-p 75 ohm composite

Supplied with 0.6m 4pin water resistant lockable connector

Dimensions: 86.5mm W x 77mm H x 74.5mm D

RV70PK

CUSTOMER SERVICE - 03 9356 0173

YES WE CAN COMBINE SHIPPING

(CAN ALSO PICK UP FROM OUR NORTH SUNSHINE DEPOT)

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	RV70PK
Barcode #	9328974021434
Brand	DNA AUDIO
Shipping Weight	3.4000kg
Shipping Width	0.250m
Shipping Height	0.150m
Shipping Length	0.340m
Shipping Cubic	0.012750000m3
