Description

WILWOOD

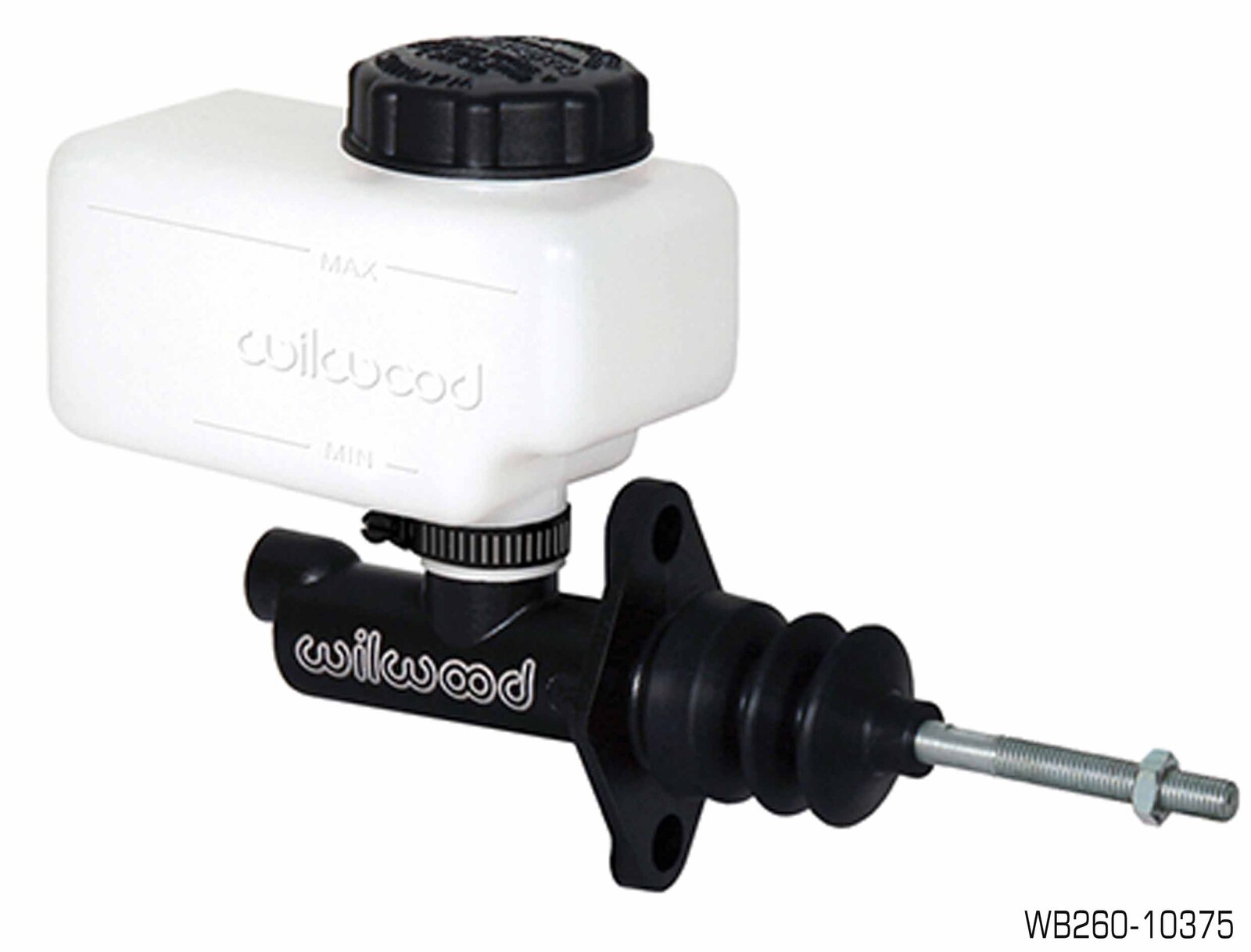

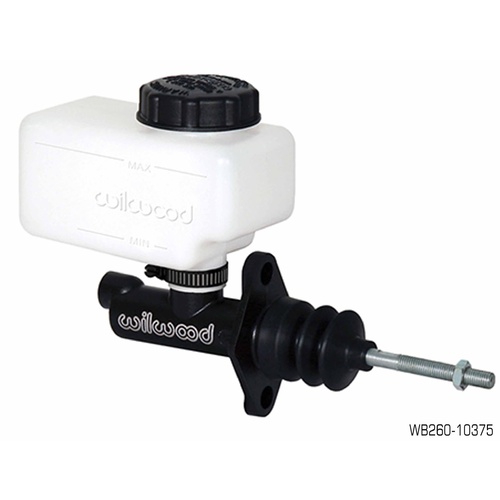

Compact Remote Flange Mount Master Cylinder

BORE: 1”

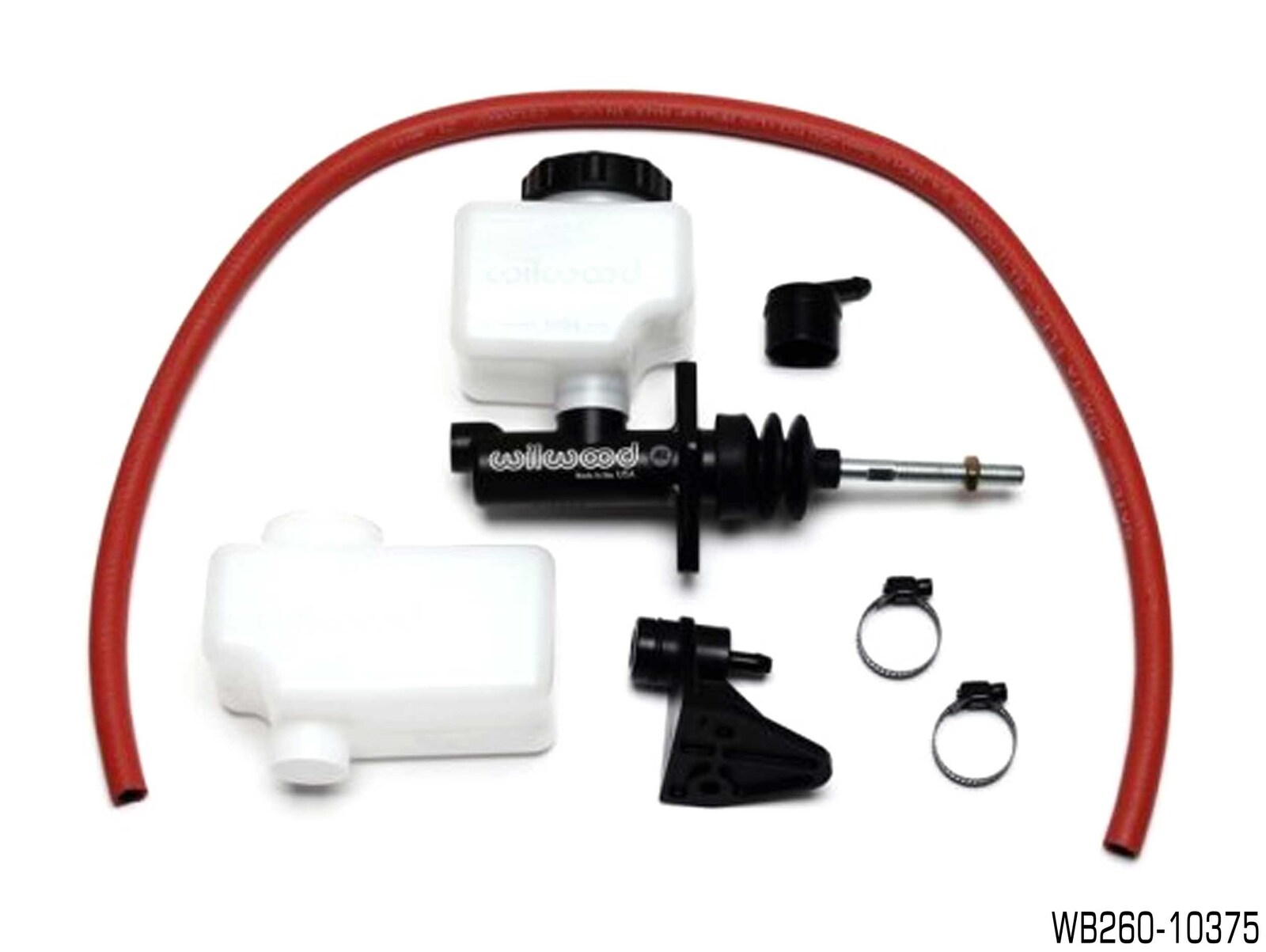

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminium body resists corrosion and maintains a durable long lasting finish.

Master Cylinder Dimensions
Bore Size	1.00"
Area (in²)	0.780
Stroke	1.12
Volume (cu in)	0.87
Master Cylinder Description
Type	Single Outlet
Outlets	1
Material	Aluminum / Plastic
Finish	Black E-coat
Reservoir
Res Type	Remote
Res Size (oz)	10.0 or 7.0
Res Size(cu in)	18.0 or 12.6
Rate
UPC Number
UPC	889545066593

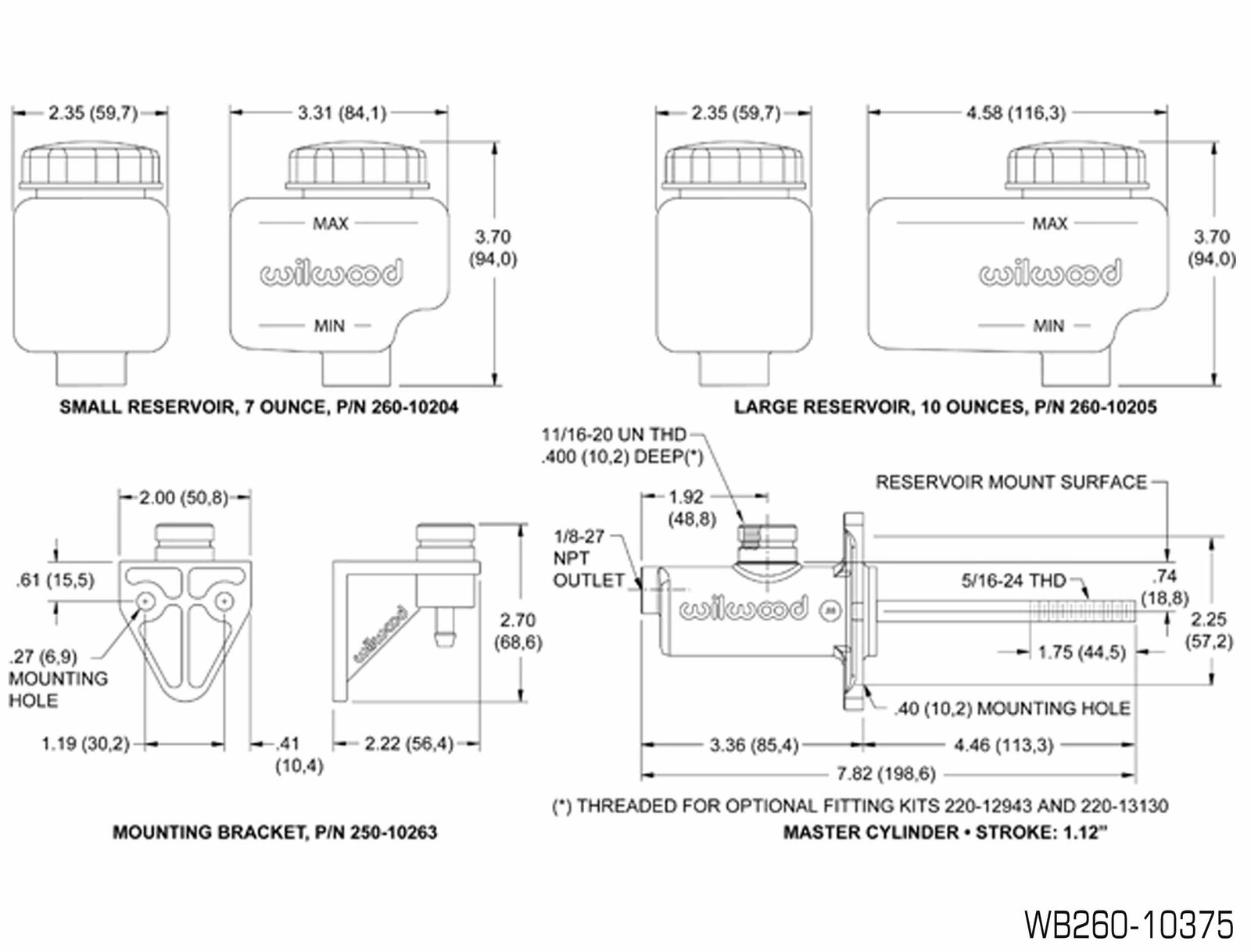

Additional Dimensions – MASTER CYLINDER
Overall Length(in)	7.80"
Flange to End Length (in)	3.37"
Inlet Size (in)	.87" or 11/16-20
Inlet Fit (in)	1/4" Hose
Outlet Size 1 (in)	1/8-27 NPT

WB260-10375
