WILWOOD UNIVERSAL REMOTE MASTER CYLINDER KIT 7/8" BORE WB260-3376
Description

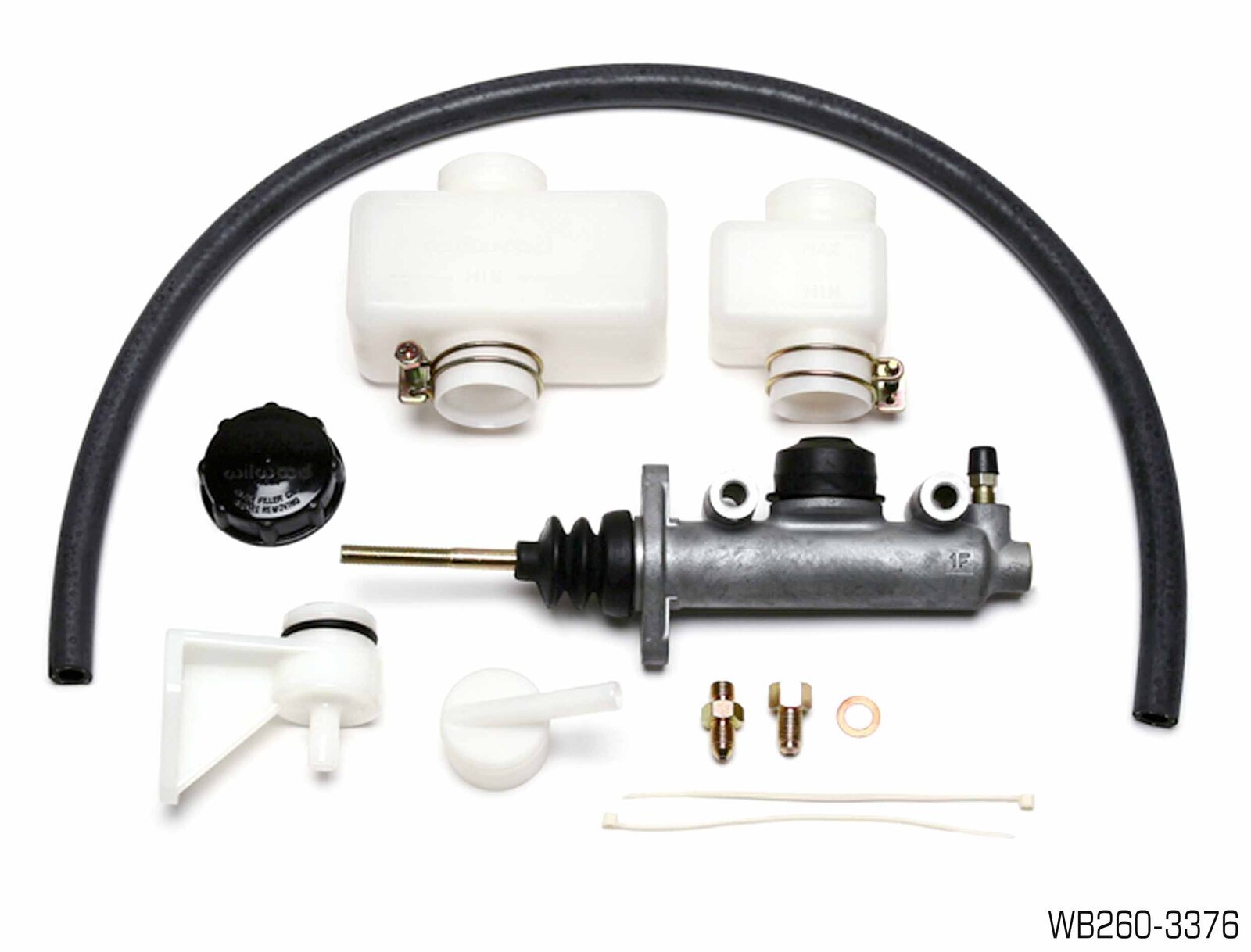

COMBINATION REMOTE MASTER CYLINDER KIT
BORE: 7/8”
Combination Remote Master Cylinders offer six different bore sizes and four different installation configurations that are available with this master cylinder kit. Precision machined from high strength aluminium, this kit includes both small and large size reservoirs which can be mounted directly on the master cylinder or remotely mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles.
|
Master Cylinder Dimensions |
|
|
Bore Size |
7/8" |
|
Area (in²) |
0.600 |
|
Stroke |
1.20 |
|
Volume (cu in) |
0.72 |
|
Master Cylinder Description |
|
|
Type |
Single Outlet |
|
Outlets |
1 |
|
Material |
Aluminum / Plastic |
|
Finish |
Bare |
|
Reservoir |
|
|
Res Type |
Remote |
|
Res Size (oz) |
10.7 or 4.0 |
|
Res Size(cu in) |
19.3 or 7.2 |
|
Rate |
|
|
UPC Number |
|
|
UPC |
889545067491 |
|

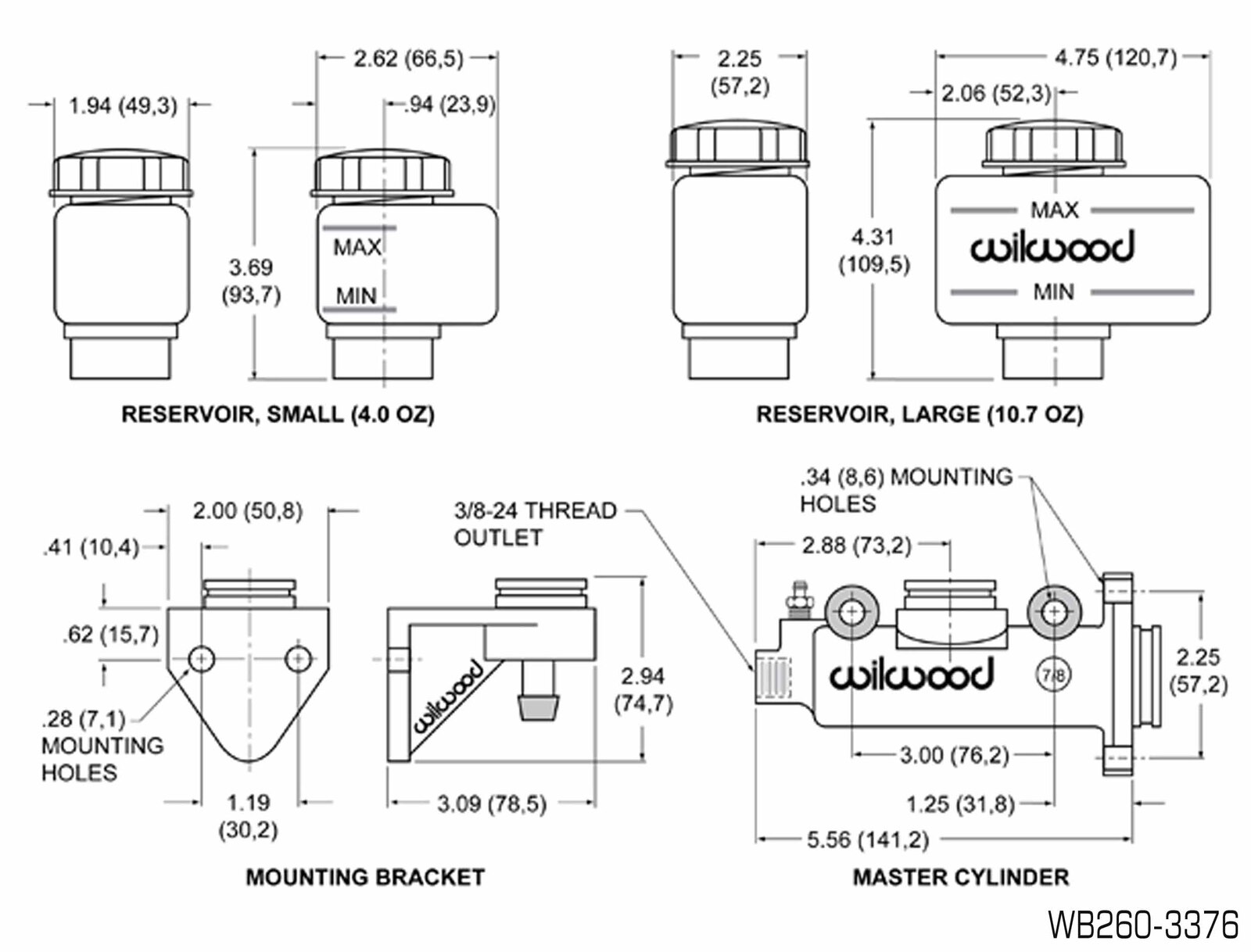

Additional Dimensions – MASTER CYLINDER |
|
|
Overall Length(in) |
9.87" |
|
Flange to End Length (in) |
5.56" |
|
Inlet Size (in) |
1.35" |
|
Inlet Fit (in) |
3/8" Hose |
|
Outlet Size 1 (in) |
3/8-24 |
|
Outlet Fit 1 (in) |
3/8-24 IF Female |
WB260-3376
CUSTOMER SERVICE- 03 9356 0173
YES WE CAN COMBINE SHIPPING
(CAN ALSO PICK UP FROM OUR NORTH SUNSHINE DEPOT)
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | WB260-3376 |
| Barcode # | 889545067491 |
| Brand | WILWOOD |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.120m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.003024000m3 |
