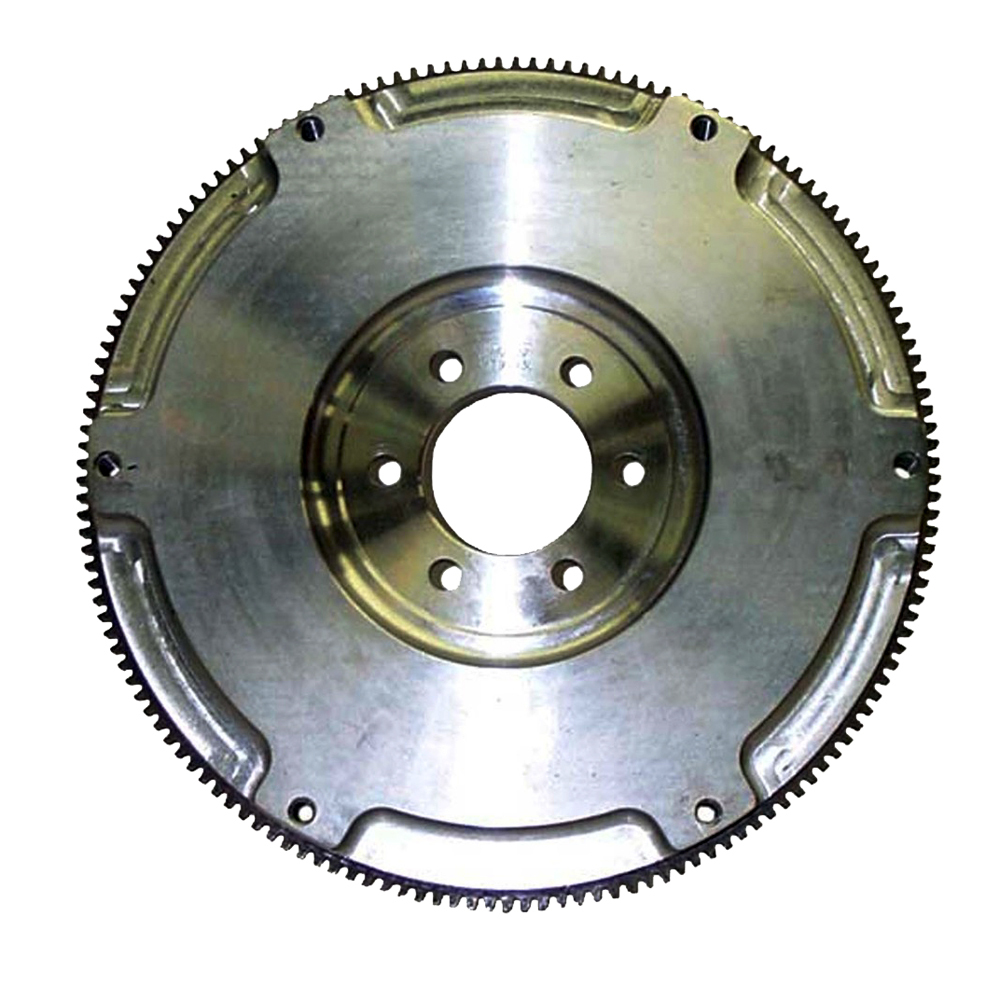

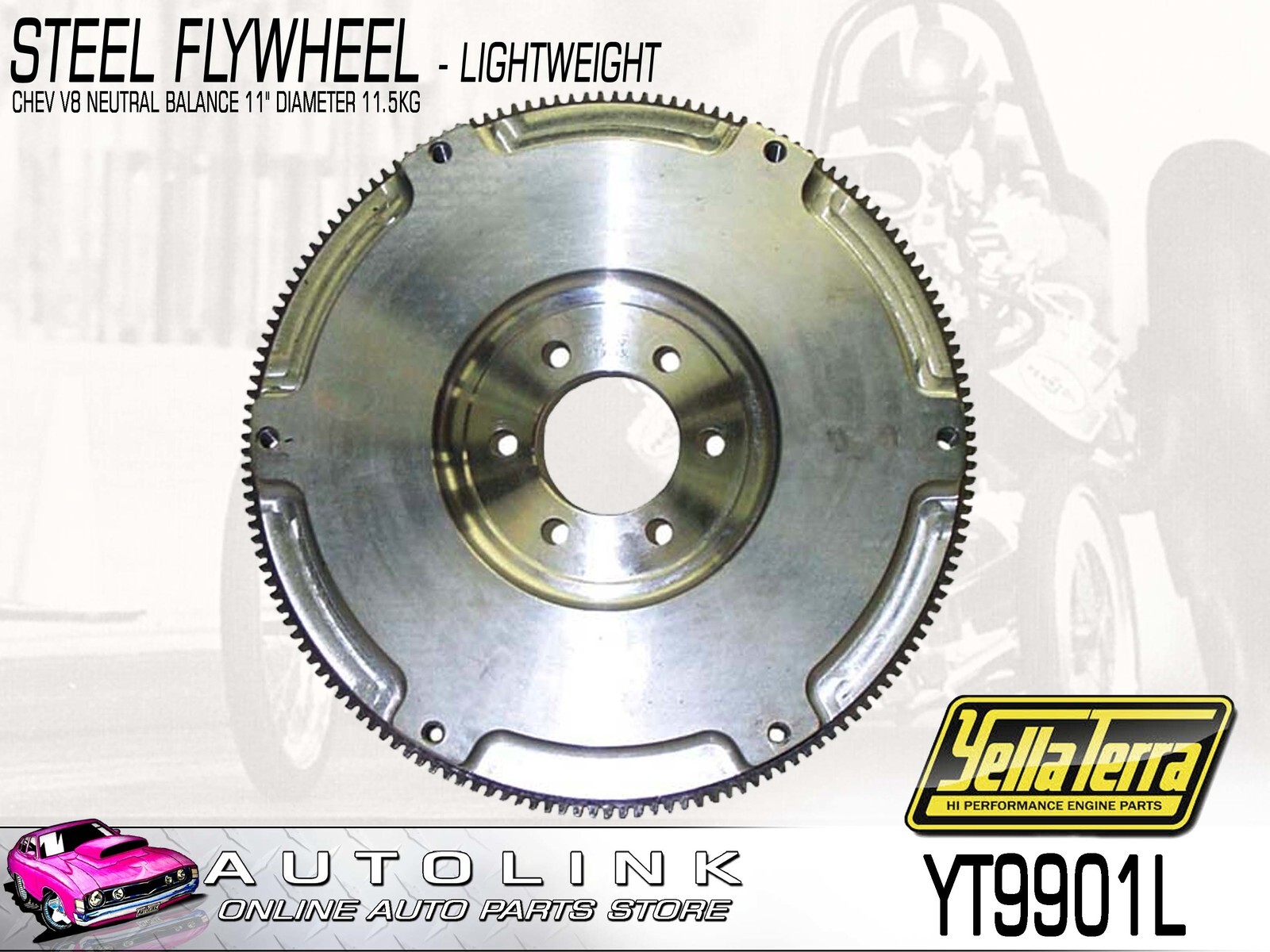

Yella Terra Steel Flywheel 168 Teeth Lightweight Neutral Balance Chev V8 YT9901L

Yella Terra 168 Teeth Lightweight Neutral Balance Flywheel

YT9901L

Chevrolet small block & big block V8

Most OEM stock Flywheels/Flexplates are heavy cast iron parts designed for optimum road driveability. Although this may be important for everyday road cars, this driveability comes at the expense of engine response and acceleration and is not suited to performance or race vehicles. These cast iron Flywheels/Flexplates are also prone to catastrophic failure under extreme conditions and so for safety reasons only approved billet Flywheels/Flexplates are now required equipment in most motorsport applications.

Yella Terra designs and manufactures a large range of high performance quality billet Flywheels/Flexplates for the street and race track. The Yella Terra Flywheels/Flextplates are precision CNC machined from a solid steel billet and fitted with an OEM quality ring gear. They are available in a choice of standard and lightweight models. Some popular applications are also available in the new ultra lightweight reduced peripheral mass (RPM) designs that are effectively as light as alloy but with the strength of steel.

All Yella Terra Flywheels/Flexplates are SFI approved, making them safe to be used in motorsport applications and are in accordance with the specifications set out by SFI sanctioning bodies.

Explosion-Proof Billet Steel Flywheel to suit GM Chev applications that require a 168-tooth ring-gear:

• Small-Block Chev
• Big-Block Chev
• Standard Weight Neutral Balance

(See notes)

Item specifics

• Part No.: YT9901L
• Product Type: Steel Flywheel
• Classification: Light Weight
• Flywheel Balance: Neutral
• Engine Balance Status: 0
• Weight kg.: 11.80
• No. of Teeth: 168
• Engine Make: Chevrolet
• Engine Application: Passenger Cars, Trucks, Marine, Off-Road, Racing
• Engine Type: Small-Block/Big Block V8
• Engine Capacity:
• Small Block 265-400
• 396 - 454* Big Block
• Year:
• SBC 1955-1985
• BBC 1965-1990
• Clutch Pattern: Factory GM, Exedy
• Clutch Diameter: 10 1/2" & 11"
• Clutch Notes: includes both 10 1/2" and 11" clutch patterns
• Crank Spigot Diameter: 2.328125"
• Crank Bolt Holes: 6
• Pressure Plate Bolt Holes: 6
• Compatible Exedy Clutches:
• 10.5" Hi Rise Diaphragm Type: #6103
• 11" Hi Rise Diaphragm Type: #6135
• Flywheel Diameter: 358mm

Notes

• Suits sbc two-piece rear main seal crank which was fitted to factory engines from 1955-1985
• Neutral balance flywheel. To use on externally balanced 400 SB Chev or 454 BB Chev, #YT 9920 counter balance plate must be fitted
